WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

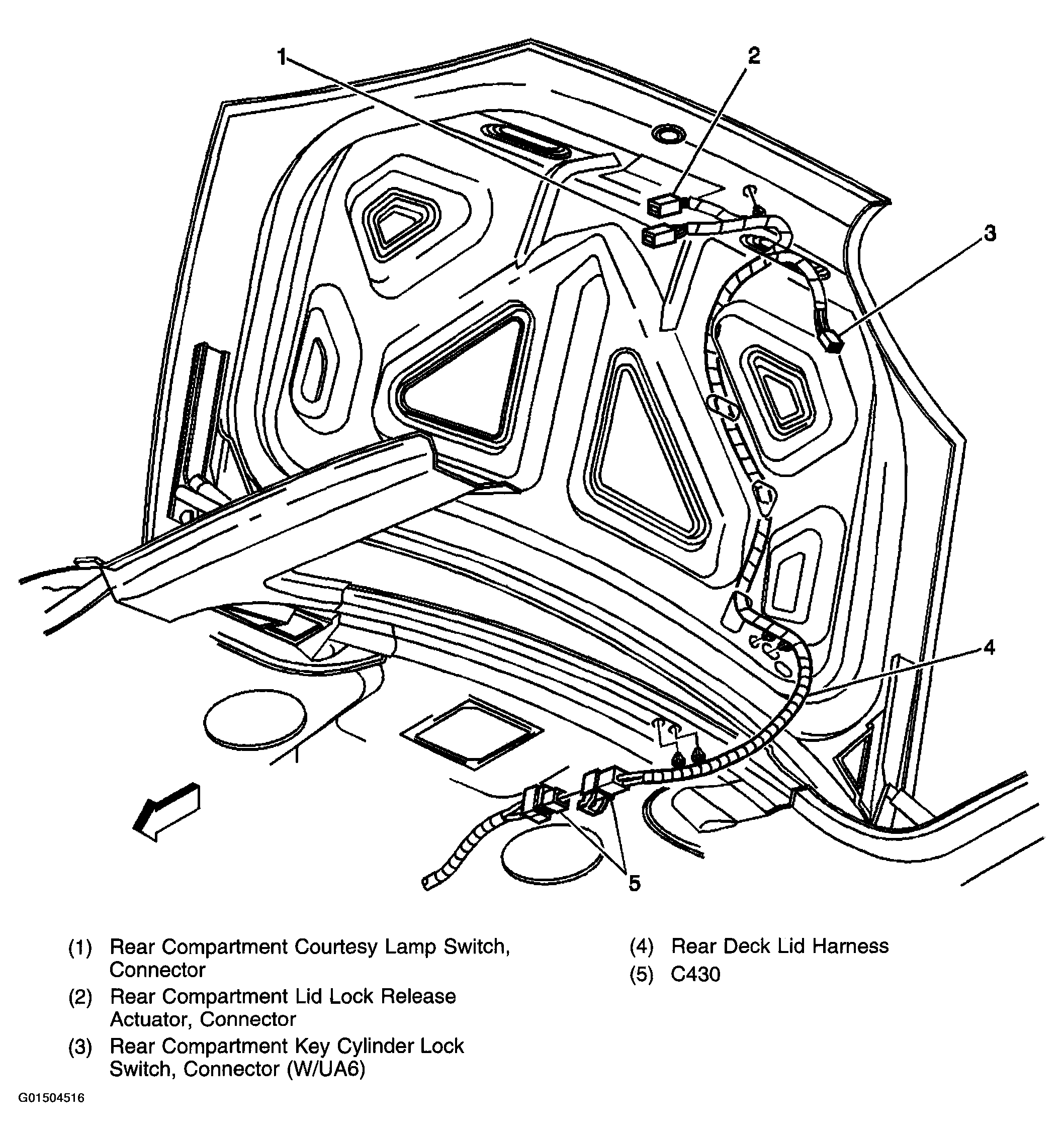

Fig 1: Inside Rear Compartment Lid Components View
Courtesy of GENERAL MOTORS CORP.

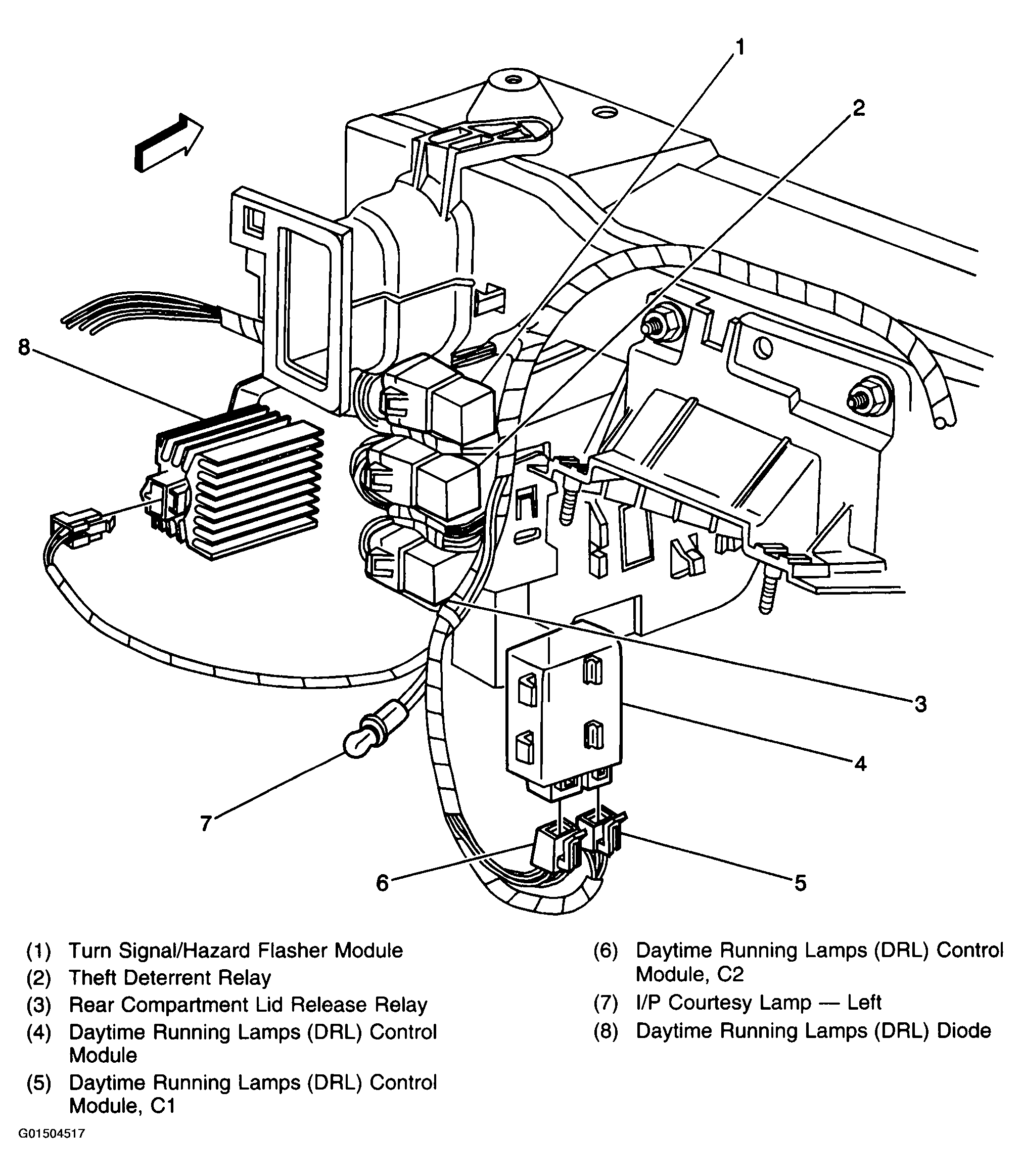

Fig 2: LH Lower Side Of I/P With Component View
Courtesy of GENERAL MOTORS CORP.

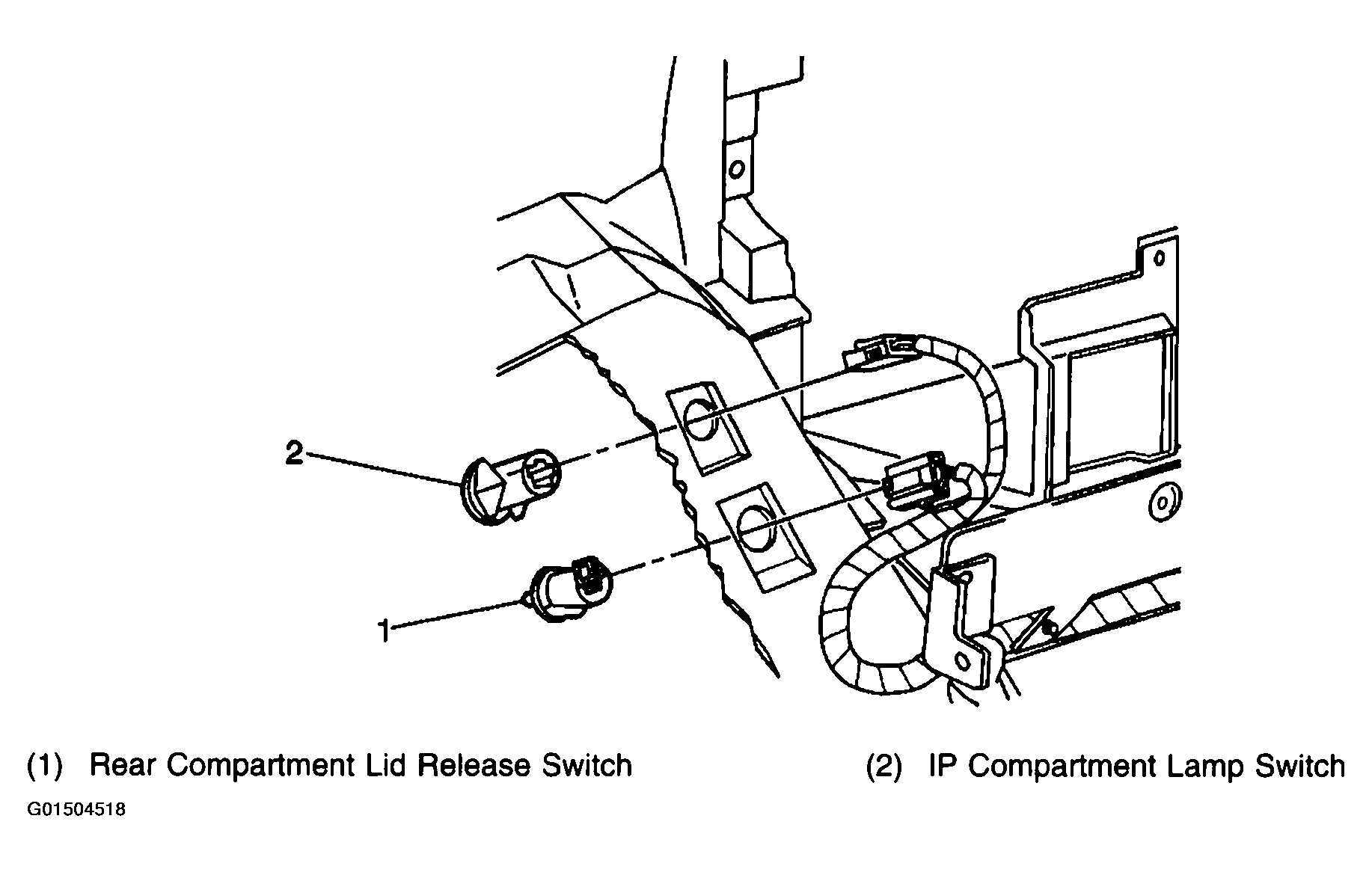

Fig 3: Right Side Of Instrument Panel With Switches Component View
