Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Remove the battery. Refer to BATTERY REPLACEMENT  .
  3. Remove the battery tray bolts.
  4. Remove the battery tray.

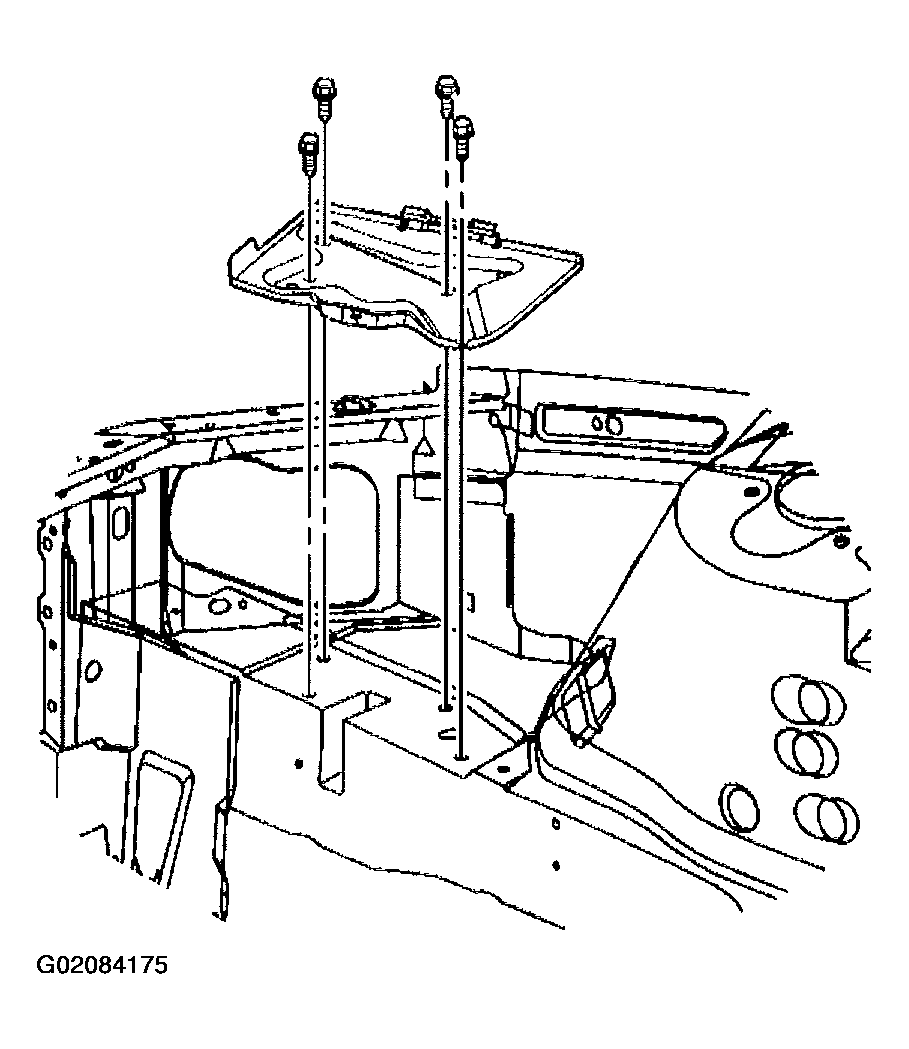

    Fig 1: Removing Battery Tray And Bolts
    G02084175Courtesy of GENERAL MOTORS CORP.
