UNDERHOOD Electrical Center: Installation

1. Align harness connectors to slots in underhood fuse block bracket.
2. Install underhood fuse block.
   • Align underhood fuse block onto electrical connectors.
   • Hand tighten harness retaining bolts (1). See Fig 3.
   • Secure four underhood fuse block retaining clips (2). Tighten underhood fuse block harness retaining bolts (1) to 36 INCH lbs. (4 N.m).
3. Connect positive battery cable (2). See Fig 2.
4. Install positive battery cable nut (1). Tighten positive battery cable nut (1) to 12 ft. lbs. (16 N.m).
5. Install underhood fuse block cover (2). See Fig 1.
6. Secure retaining tabs (1).
7. Connect negative battery cable.

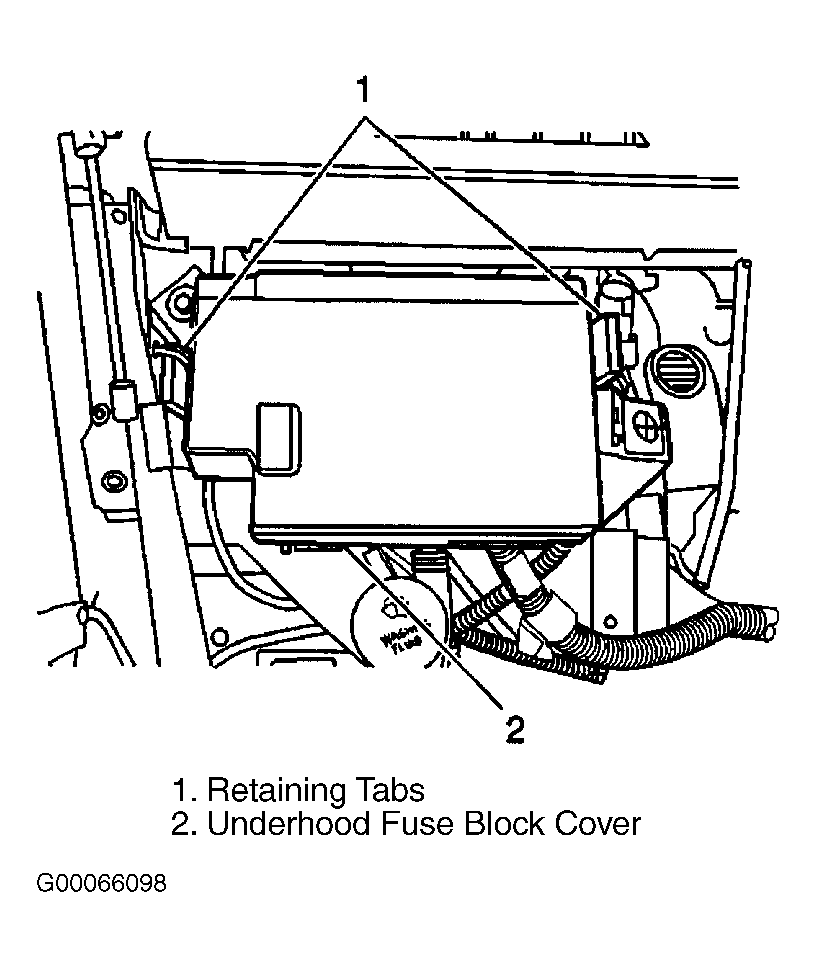

Fig 1: Removing & Installing Underhood Fuse Block Cover

Courtesy of GENERAL MOTORS CORP.

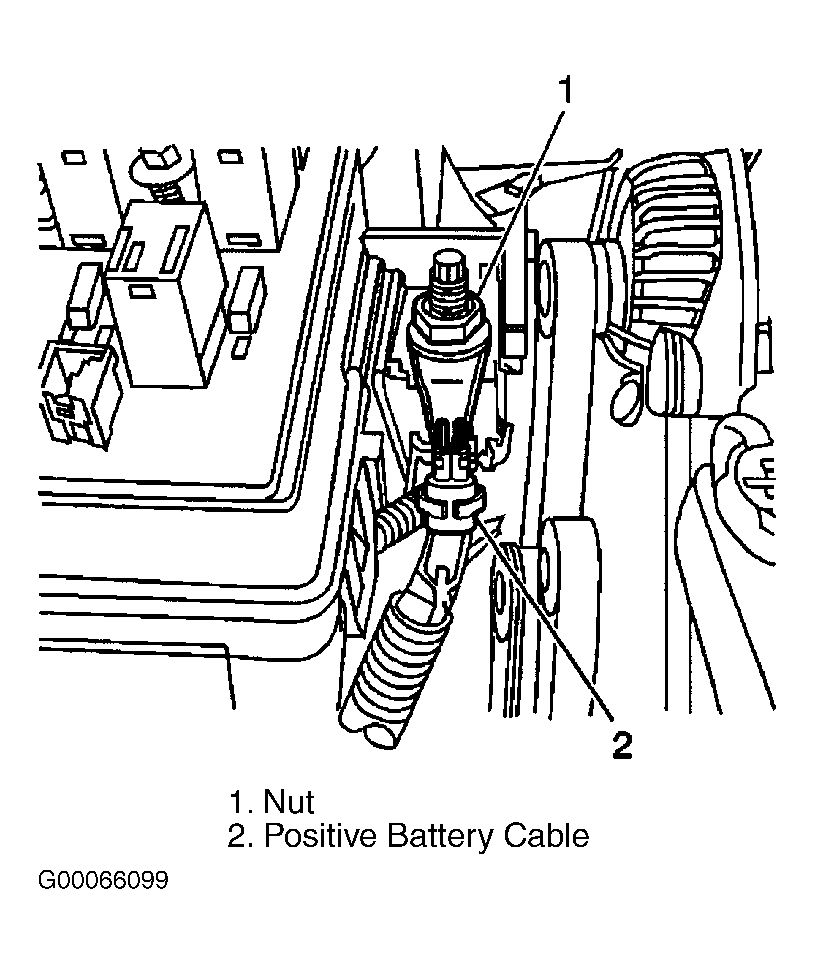

Fig 2: Removing & Installing Positive Battery Cable

Courtesy of GENERAL MOTORS CORP.

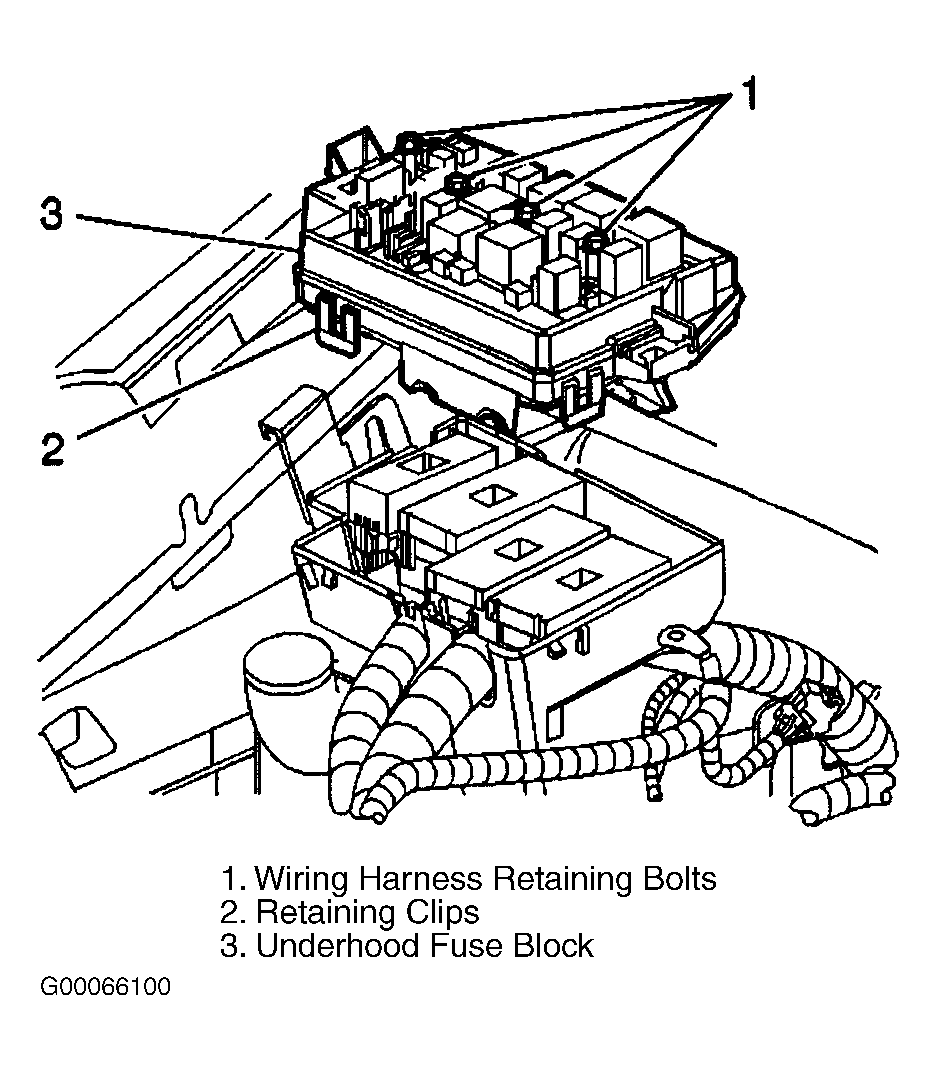

Fig 3: Removing & Installing Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.
