Instrument Panel Cluster: Installation

  1. Connect harness connectors to instrument panel cluster.
  2. Install instrument panel cluster.
  3. Install screws to instrument panel cluster. Tighten screws to 18 INCH lbs. (2 N.m). See Fig 1.
  4. Install instrument panel cluster trim plate bezel, by reversing removal procedure step  1.

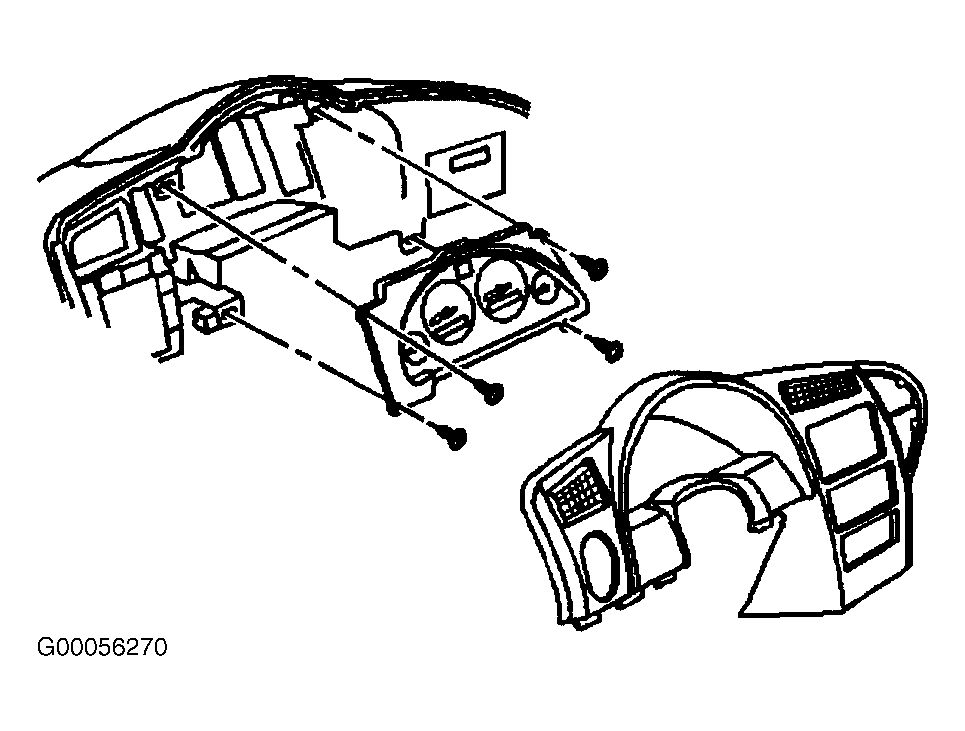

Fig 1: Removing & Installing Instrument Panel Cluster
G00056270Courtesy of GENERAL MOTORS CORP.
