Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the vehicle.
    • Route the vent hose the same way as when removed.
    • Ensure the hose is free of kinks and routes clear of sharp components.
    • Ensure the vent hose is not plugged.
  2. Connect the vent hose to the differential carrier assembly.
    3. Fig 1: View Of Vent Hose To Differential Carrier Assembly
    GM834272Courtesy of GENERAL MOTORS CORP.
  3. Install the vent hose (1) to the wiring bundle (2), S4WD axles only.

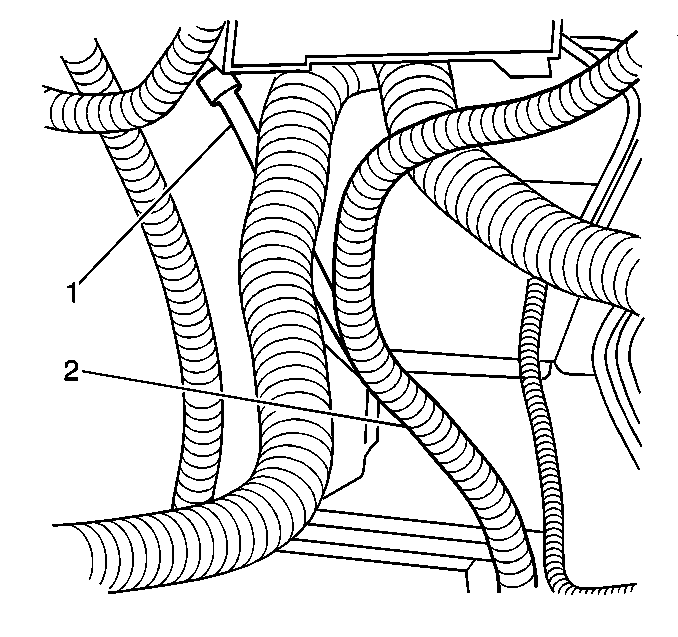

    4. Fig 2: Vent Hose & Wiring Bundle
    GM341716Courtesy of GENERAL MOTORS CORP.
  4. Install the vent hose to the retainer clips, all axles.
  5. Install the front differential carrier shield, if equipped. Refer to Shield Replacement .
  6. Lower the vehicle.
