Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bucket or SEAT REPLACEMENT - Bench .
Remove the 3 screws securing the trim panel to the seat.

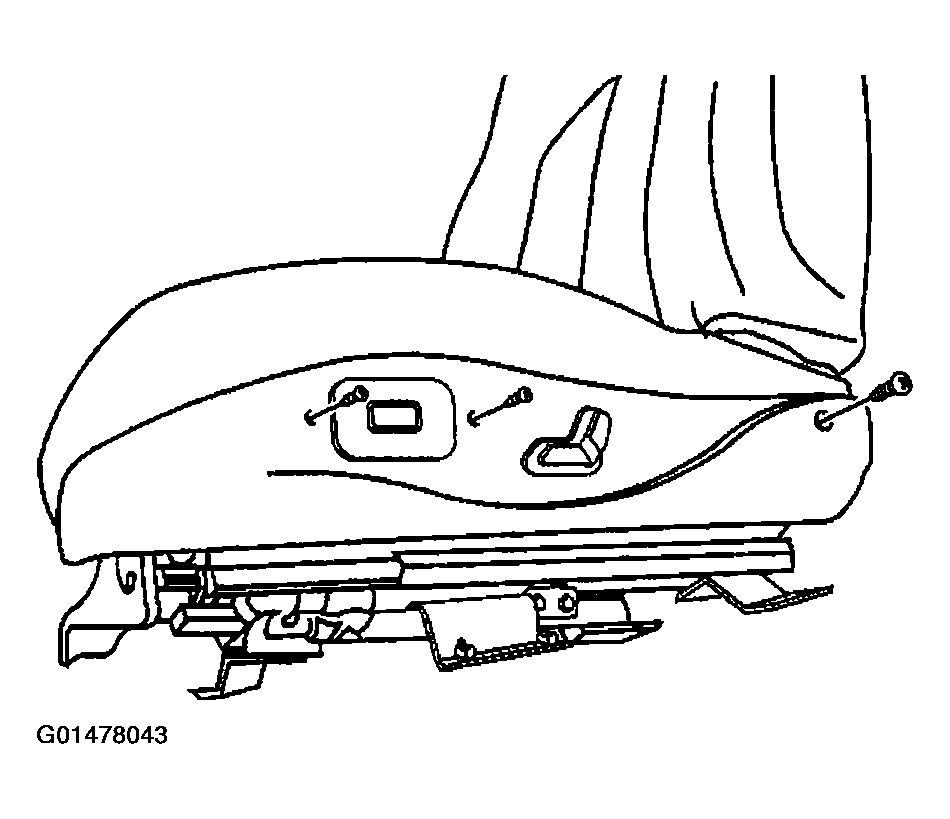

Fig 1: Removing Screws Securing Trim Panel To Seat
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the switch.

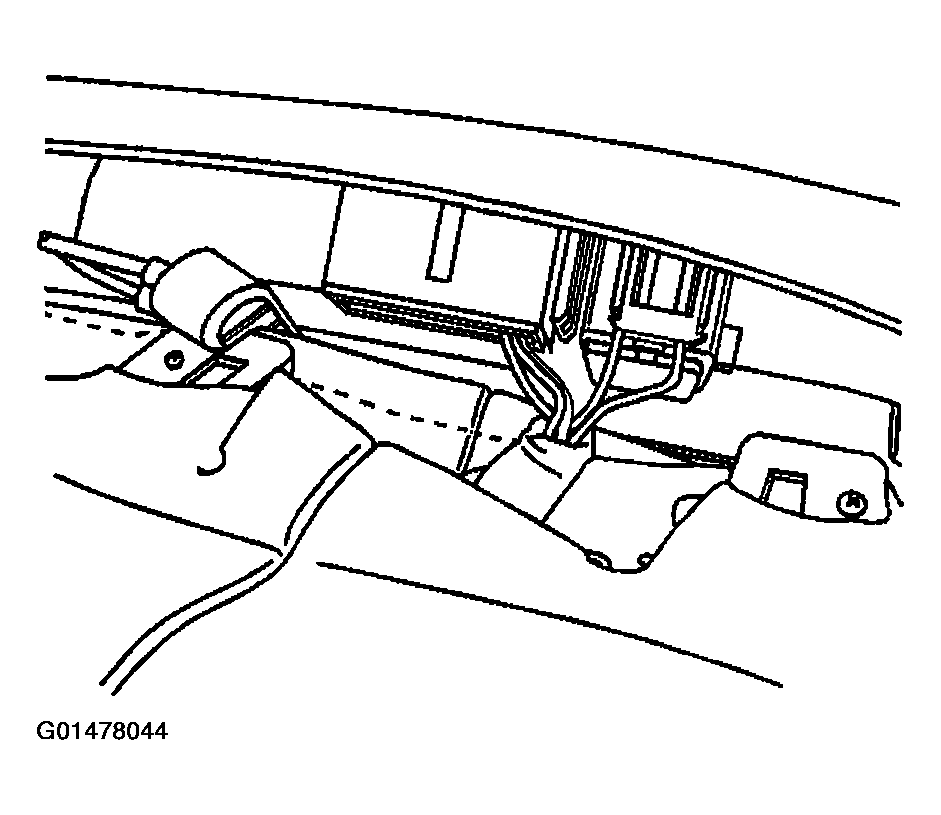

Fig 2: Disconnecting Electrical Connector From Switch
Courtesy of GENERAL MOTORS CORP.
Remove the switch from the trim panel by snapping the switch out of the plastic retaining tabs.
Remove the switch assembly.

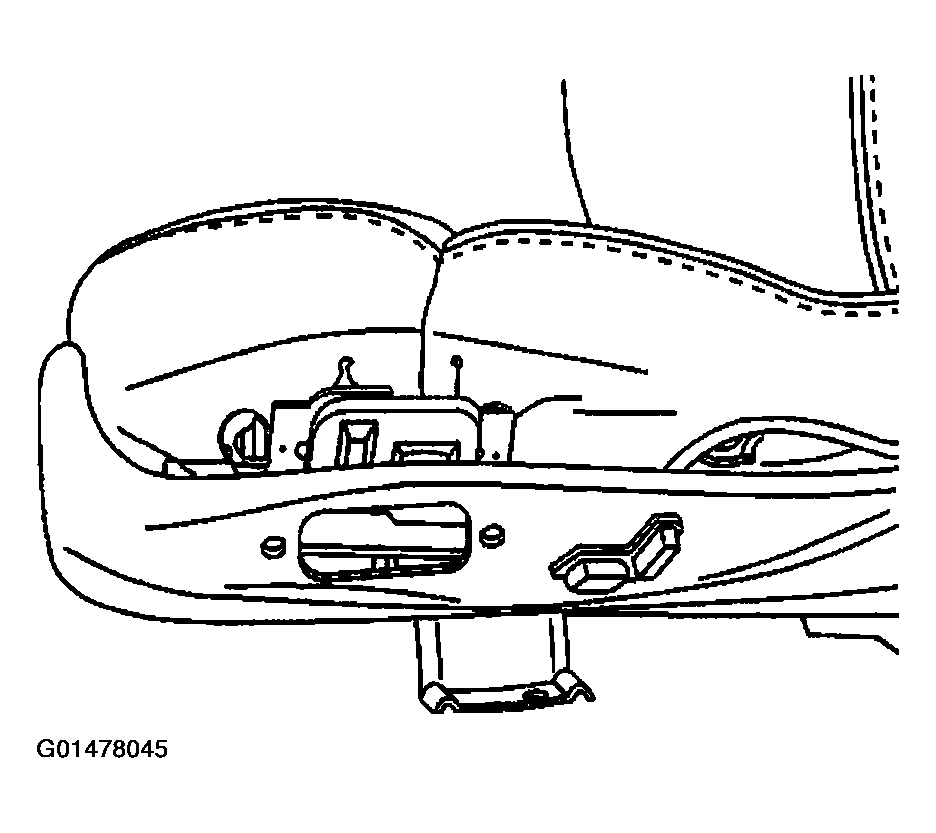

Fig 3: Removing Switch From Trim Panel By Snapping Switch Out Of Plastic Retaining Tabs
Courtesy of GENERAL MOTORS CORP.
