Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
- Use a heat gun J 25070
in a circular motion for 30 seconds 152 mm (6 in) from the surface in order to heat the rocker panel to 21-32°C (70-90°F).
Important: Do not touch the adhesive backing on the molding.
- Remove the protective liner form the back side of the rocker molding.

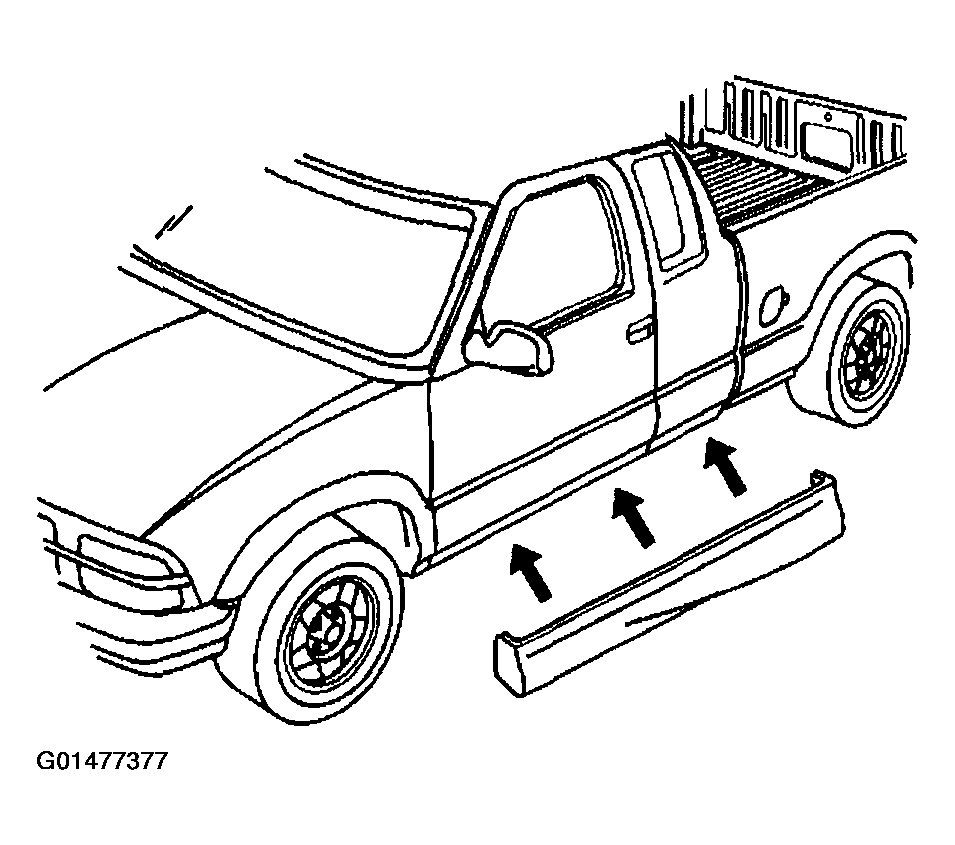

- Install the rocker molding to the vehicle.
Press the molding firmly and evenly in order to ensure that the tape seats properly.
- Install the pushpins that retain the rocker molding to the vehicle.
- Install the fender flare.
- Lower the vehicle.
