Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the radio front speaker.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the radio front speaker screws.

    Tighten

    Tighten the radio front speaker screws to 1.9 N.m (17 lb in).

  4. Install the DRL sensor to the right speaker grille, if equipped.
  5. Turn the DRL sensor counterclockwise 1/4 turn in order to install.
  6. Install the radio front speaker grille.

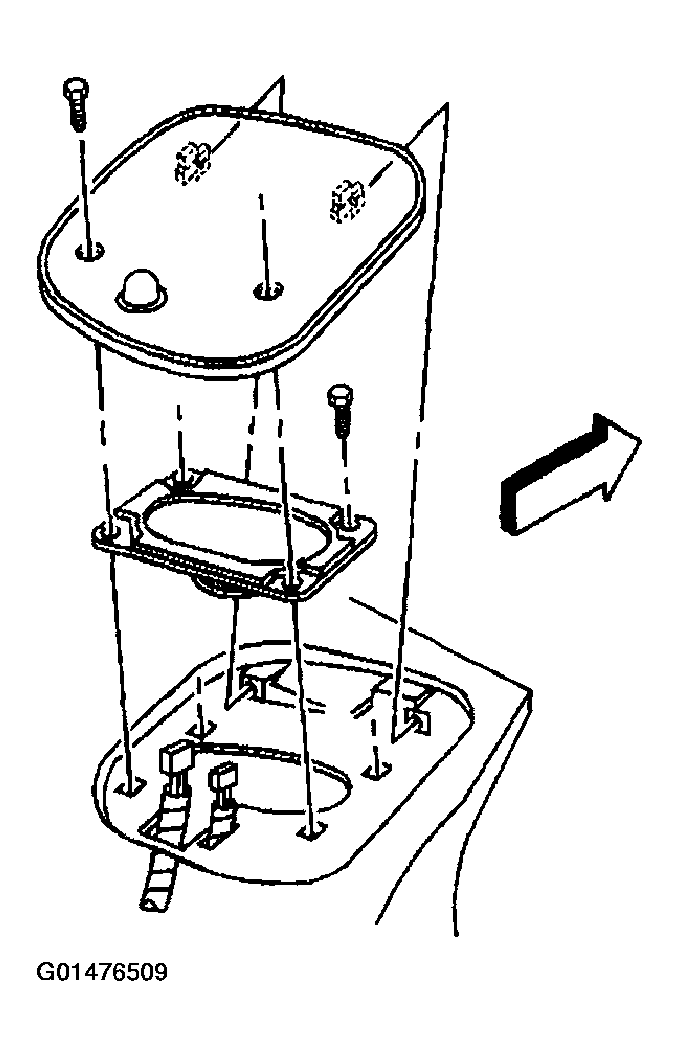

    Fig 1: Front Speaker Grille Screws
    G01476509Courtesy of GENERAL MOTORS CORP.
  7. Install the radio front speaker grille screws.

    Tighten

    Tighten the radio front speaker screws to 1.9 N.m (17 lb in).

  8. Inspect for proper circuit operation.
