Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Remove the negative battery cable.
  2. Remove the remote cassette player tray by prying gently with a flat-bladed tool.
  3. Remove the remote cassette player by gently pulling the unit outward from the console.
  4. Remove the electrical connector.

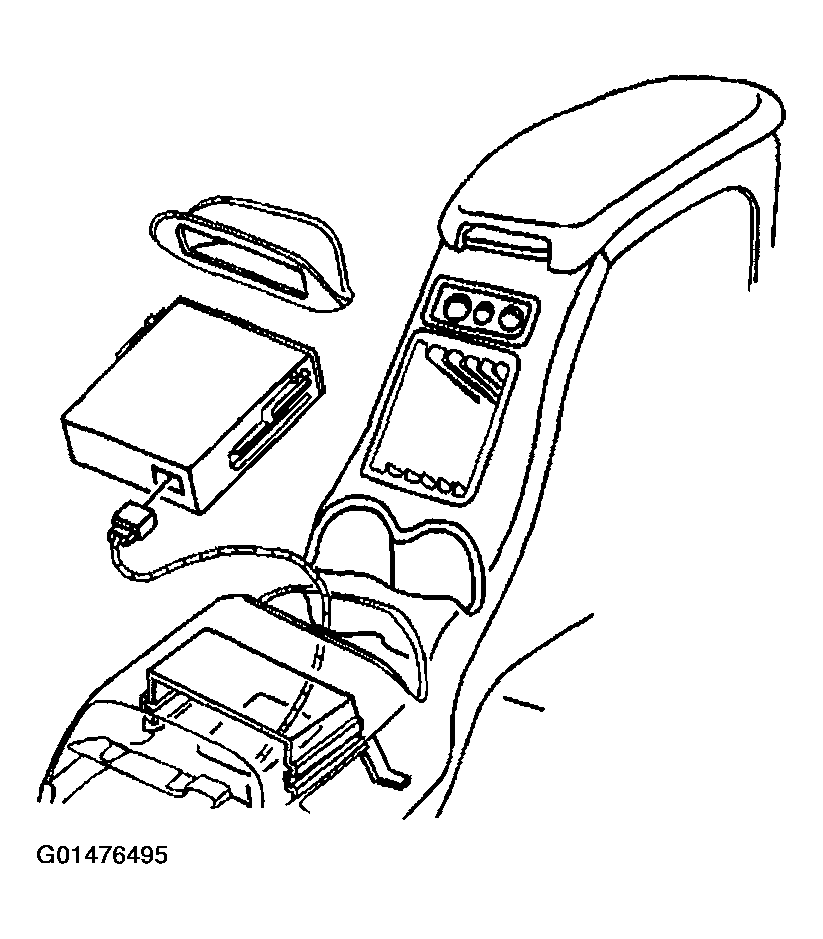

    Fig 1: Electrical Connector
    G01476495Courtesy of GENERAL MOTORS CORP.
