Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (2) to the radio.

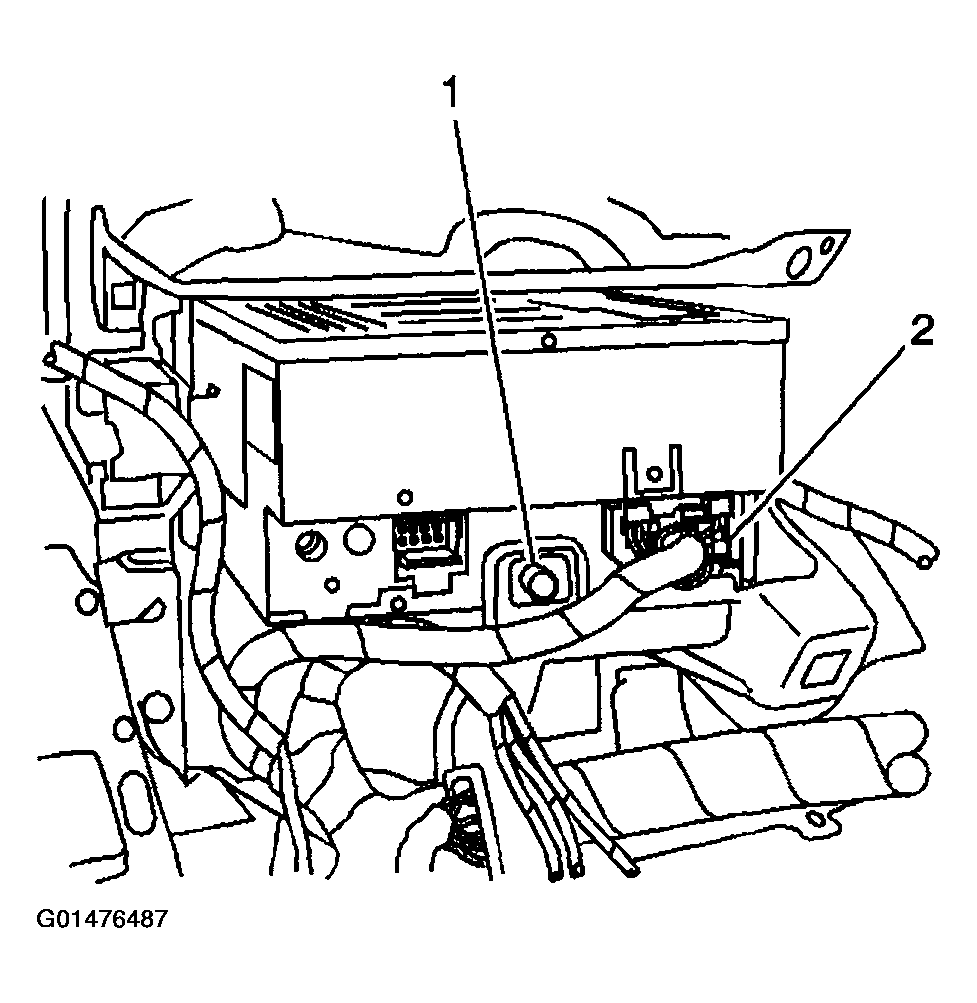

    Fig 1: Connecting Electrical Connector To Radio
    G01476487Courtesy of GENERAL MOTORS CORP.
  2. Align the radio locator tab (1) into the locator hole.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the radio retaining screws.

    Tighten

    Tighten the radio retaining screws to 2 N.m (18 lb in).

  4. Install the instrument panel accessory trim plate.

    Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages, and Console.

  5. Recalibrate the new radio assembly.

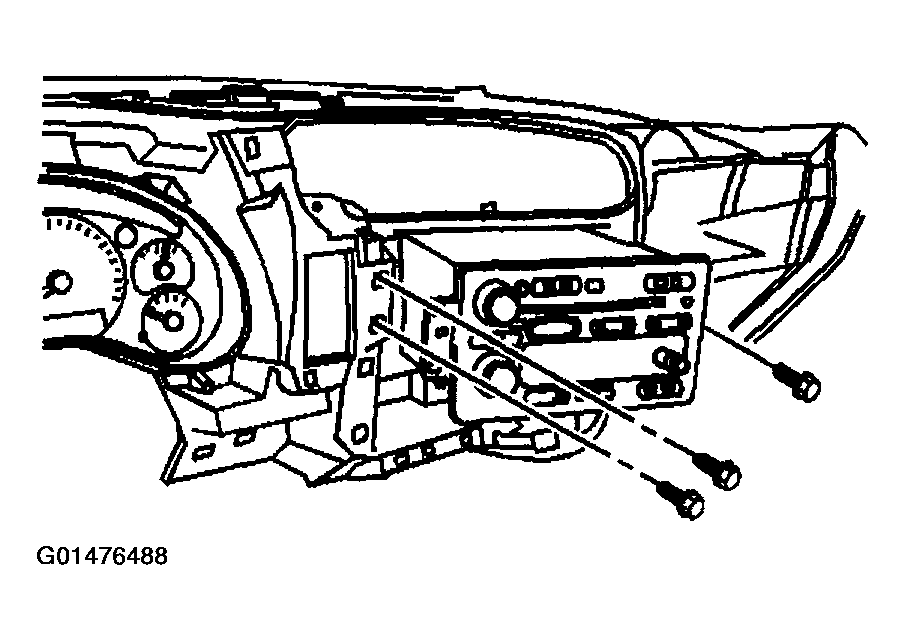

    Fig 2: Radio Retaining Screws
    G01476488Courtesy of GENERAL MOTORS CORP.
