Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radio antenna cable.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the radio antenna cable screws.

    Tighten

    Tighten the radio antenna cable screws to 2.8 N.m (25 lb in).

  3. Install the radio antenna bezel.
  4. Install the radio antenna cable nut.
  5. Install the fender. Refer to FENDER REPLACEMENT -- FRONT in Body Front End.

    Tighten

    Tighten the radio antenna cable nut to 6 N.m (53 lb in).

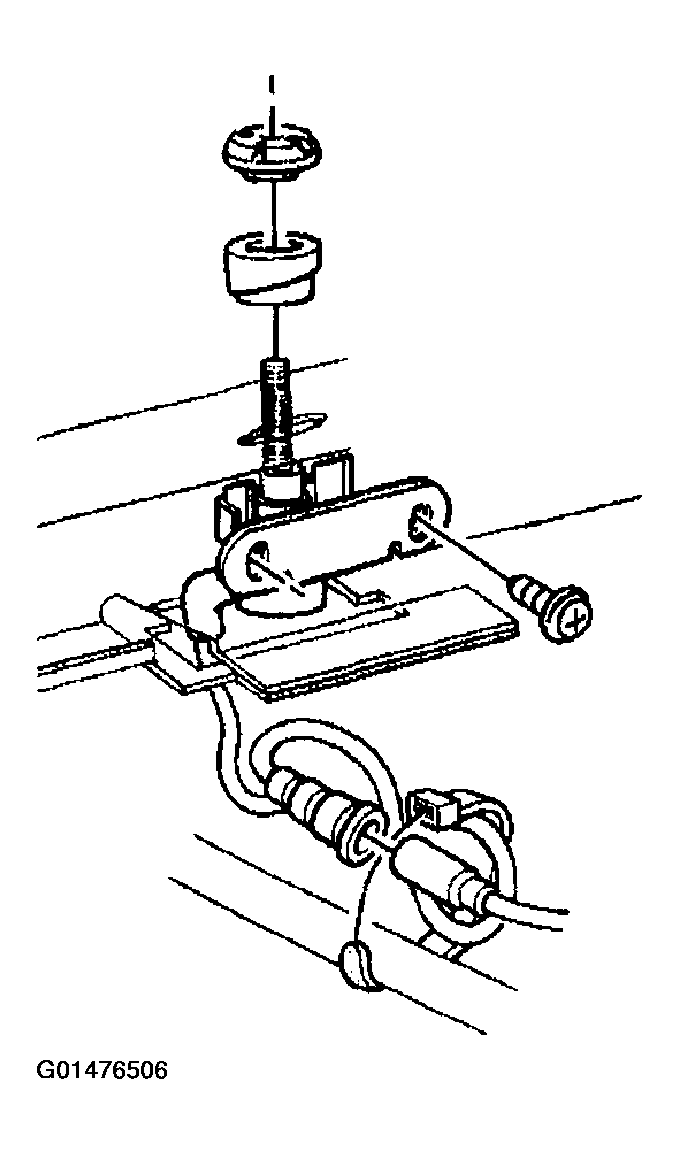

    Fig 1: Radio Antenna Cable Screws
    G01476506Courtesy of GENERAL MOTORS CORP.
  6. Install the radio antenna cable to the radio extension cable.
  7. Install the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .

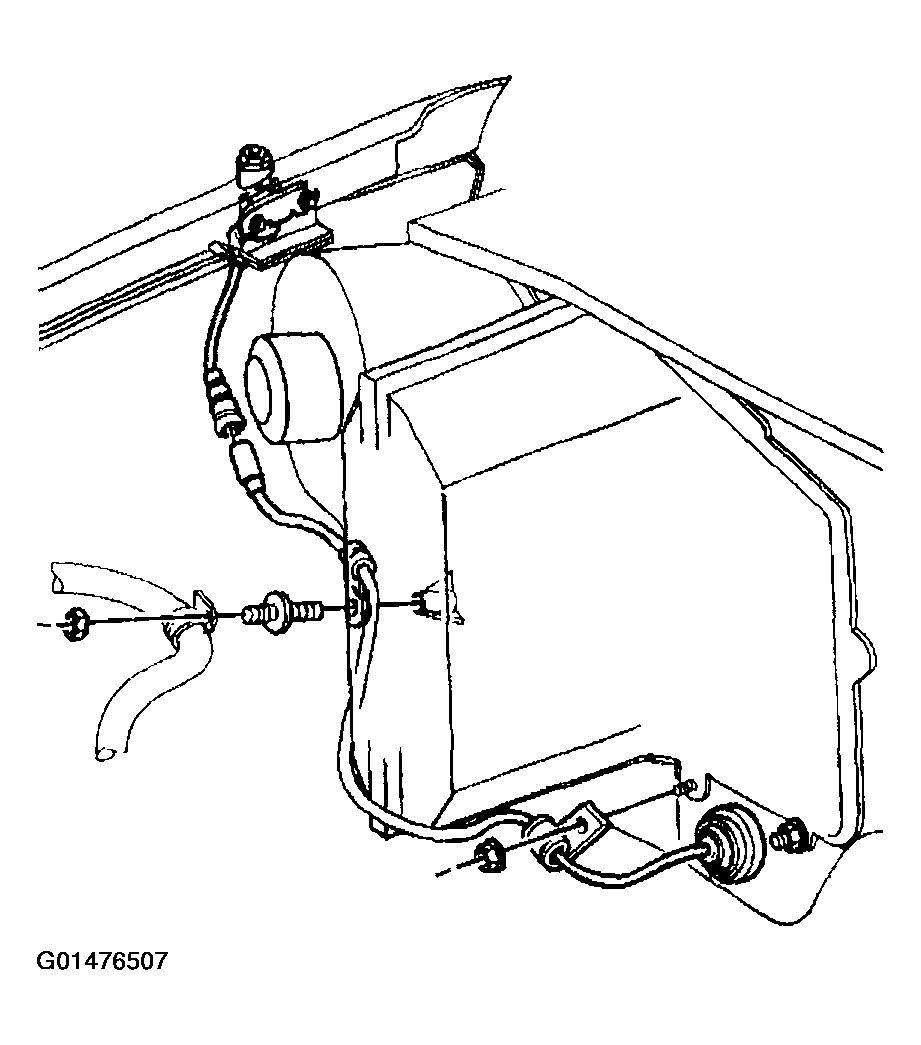

    Fig 2: Installing Radio Antenna Cable To Radio Extension Cable
    G01476507Courtesy of GENERAL MOTORS CORP.
