Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat audio control panel to the rear console trim panel by pressing the unit into place, ensuring the retaining tabs lock into place.
  2. Install the console wiring harness connector to the rear seat audio control panel.
  3. Install the rear console trim panel to the console by pressing the unit into place, ensuring the retaining tabs lock into place.

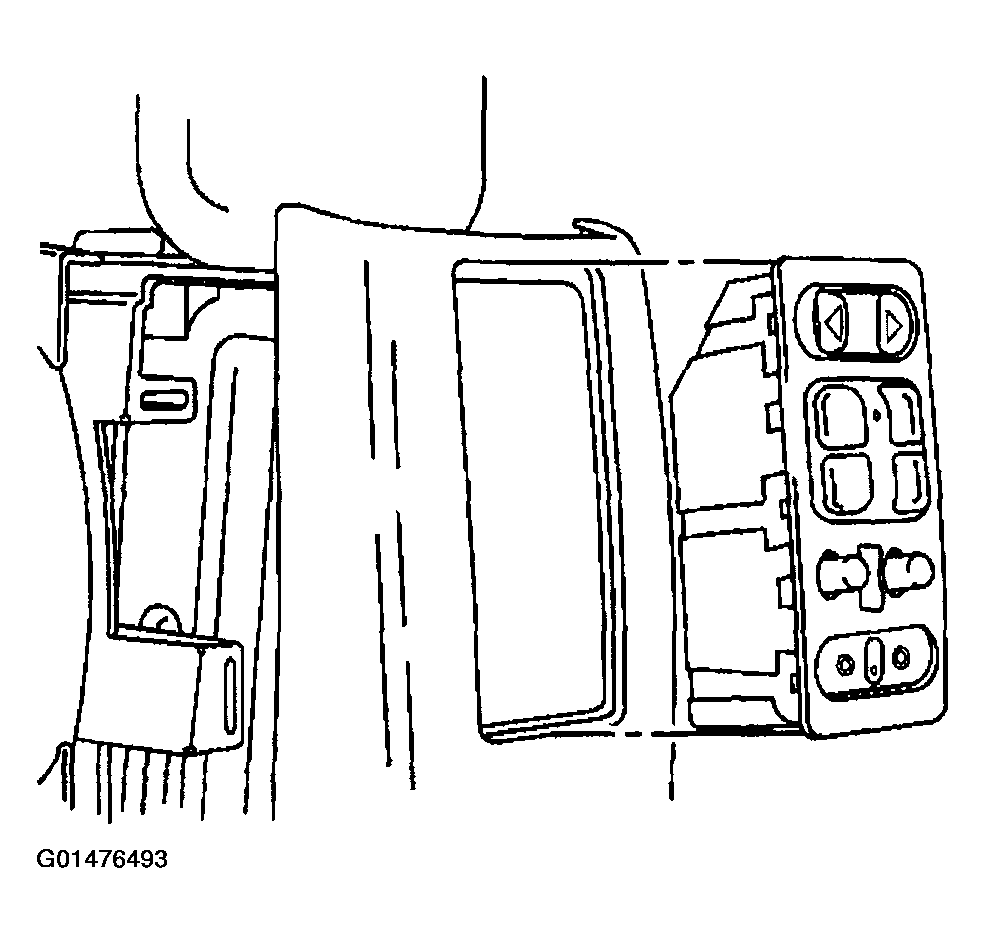

    Fig 1: Installing Console Wiring Harness Connector To Rear Seat Audio Control Panel
    G01476493Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the rear console trim panel retaining screw.

    Tighten

    Tighten the screw to 1.9 N.m (17 lb in).

  5. Install the negative battery cable.

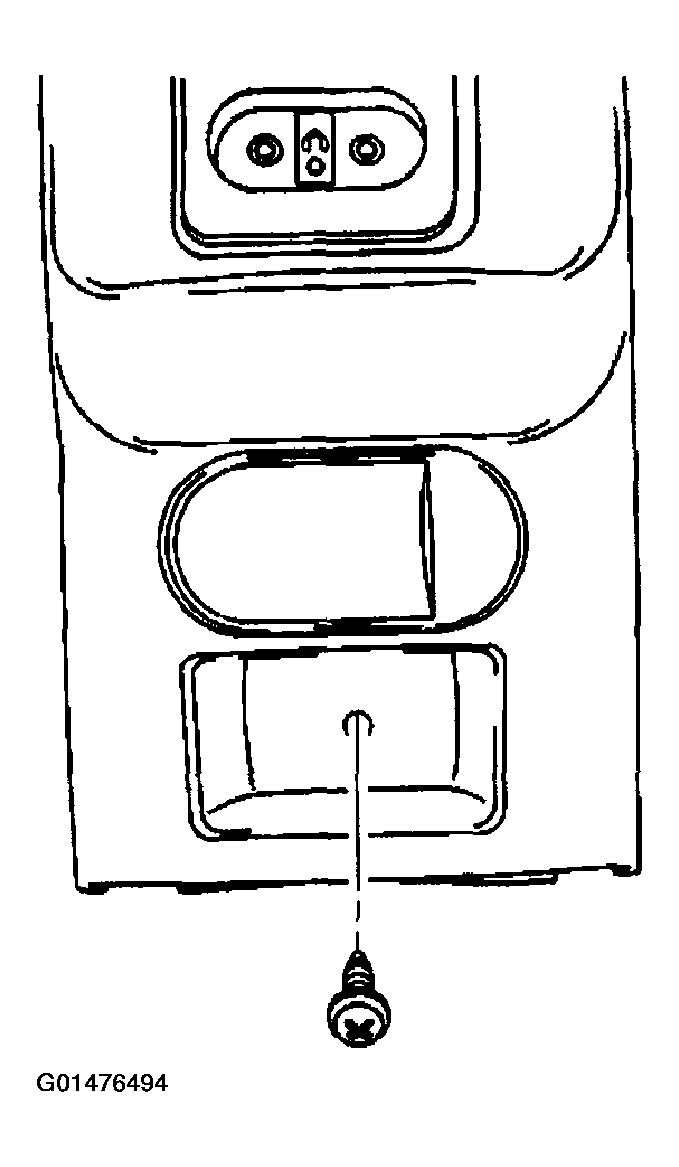

    Fig 2: Rear Console Trim Panel Retaining Screw
    G01476494Courtesy of GENERAL MOTORS CORP.
