Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof sunshade to the full rearward position.
  2. Remove the screws from the sunroof window panel.

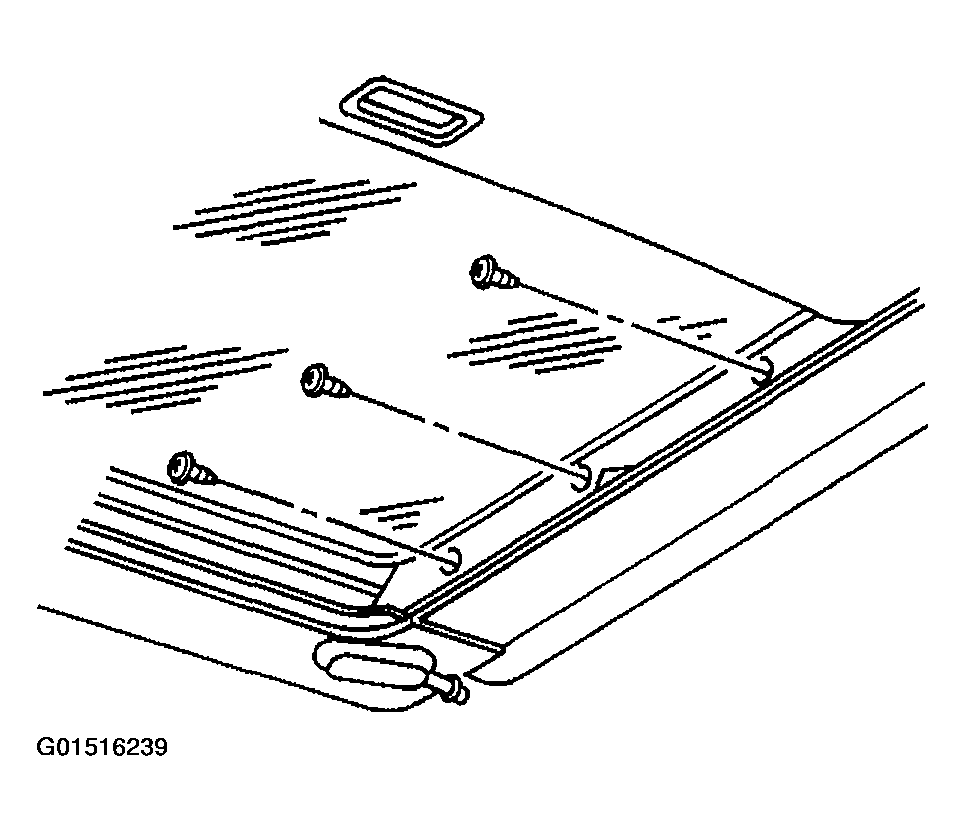

    Fig 1: Removing Sunroof Window Panel Screws
    G01516239Courtesy of GENERAL MOTORS CORP.
  3. Remove the sunroof window panel from the sunroof module.

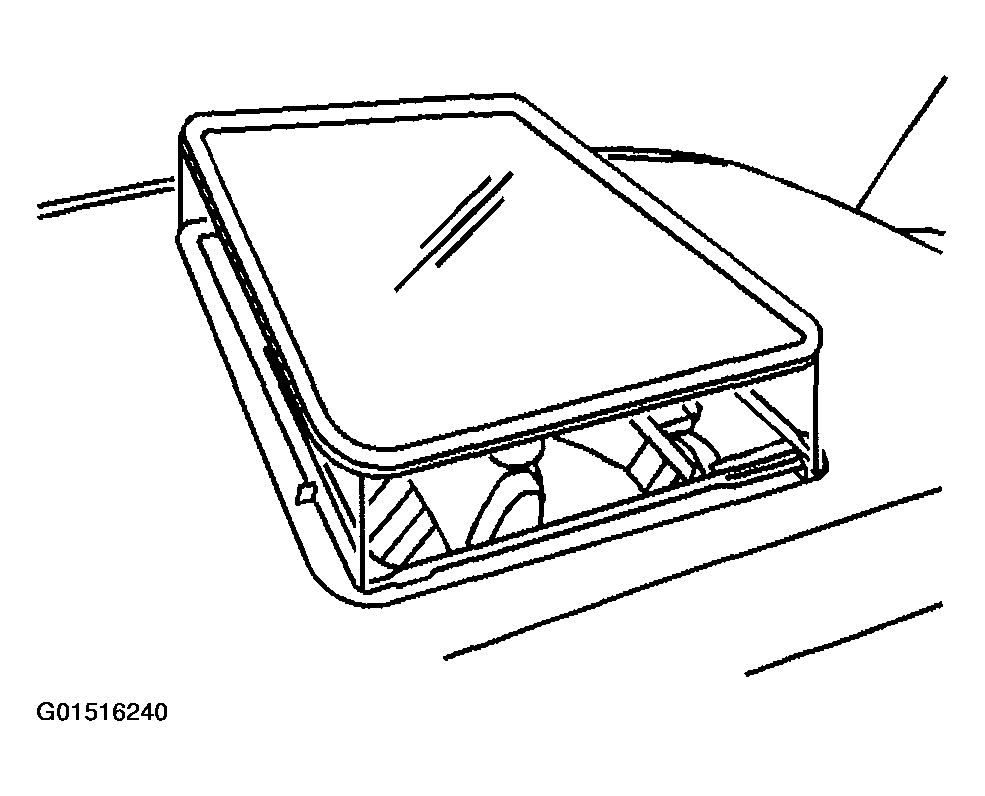

    Fig 2: Removing Sunroof Window Panel From Sunroof Module
    G01516240Courtesy of GENERAL MOTORS CORP.
