Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the catalytic converter hanger.
  2. Install the catalytic converter hanger bolts.

    Tighten

    Tighten the catalytic converter hanger bolts to 35 N.m (26 lb ft).

  3. Install the catalytic converter hanger insulators to the catalytic converter.
  4. Lower the vehicle.

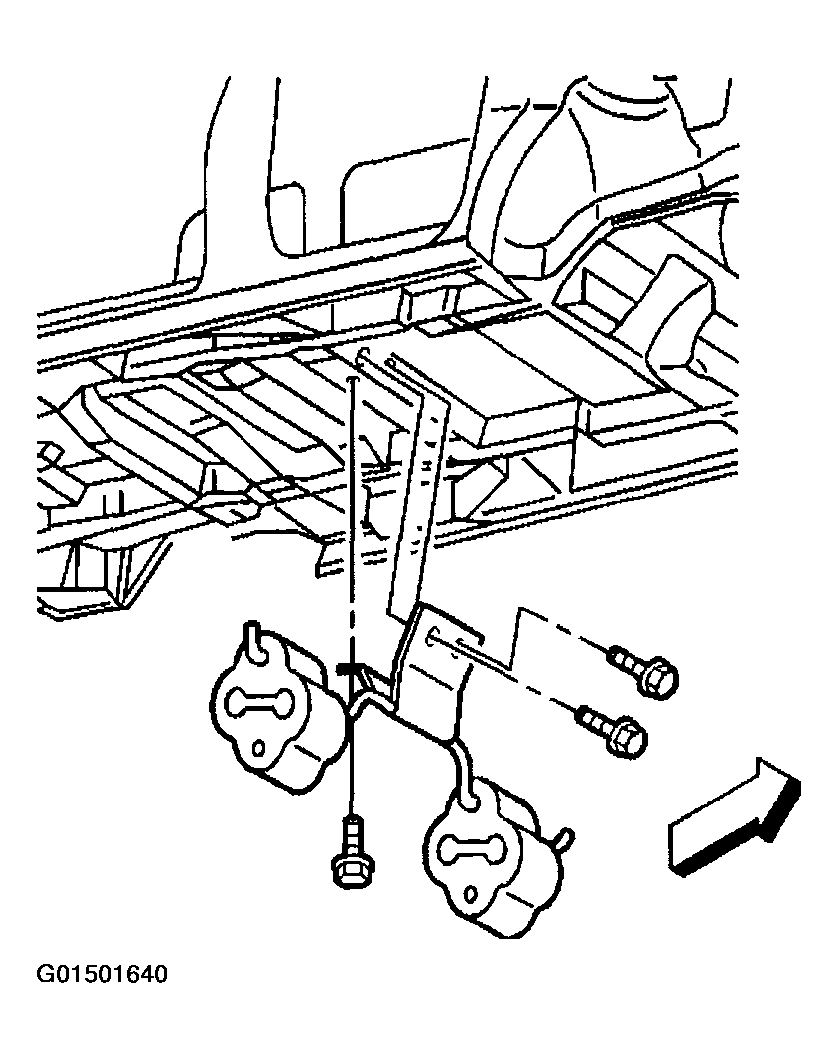

    Fig 1: Installing Catalytic Converter Hanger - Converter Hanger Assembly Replacement
    G01501640Courtesy of GENERAL MOTORS CORP.
