Shift Cable

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the gearshift lever into park. Apply the park brake. Raise and suitably support the vehicle.
  2. Remove the end of the range selector cable from the range selector lever ball stud. Position the transmission range selector lever to Park. See Fig 1 .
  3. Rotate the range select lever clockwise until it reaches the full mechanical stop position. Remove the shipping tag from around the adjusting button, if necessary. See Fig 2 . Release the locking tab. See Fig 3 .
  4. Install the end of the range selector cable to the range selector lever ball stud. See Fig 1 . Engage the locking tab without disturbing the cable. See Fig 4 . This sets the adjustment.
  5. Slide the locking tab retainer over the locking tab. See Fig 2 . Lower the vehicle. Release the parking brake. Check the transmission for proper operation.

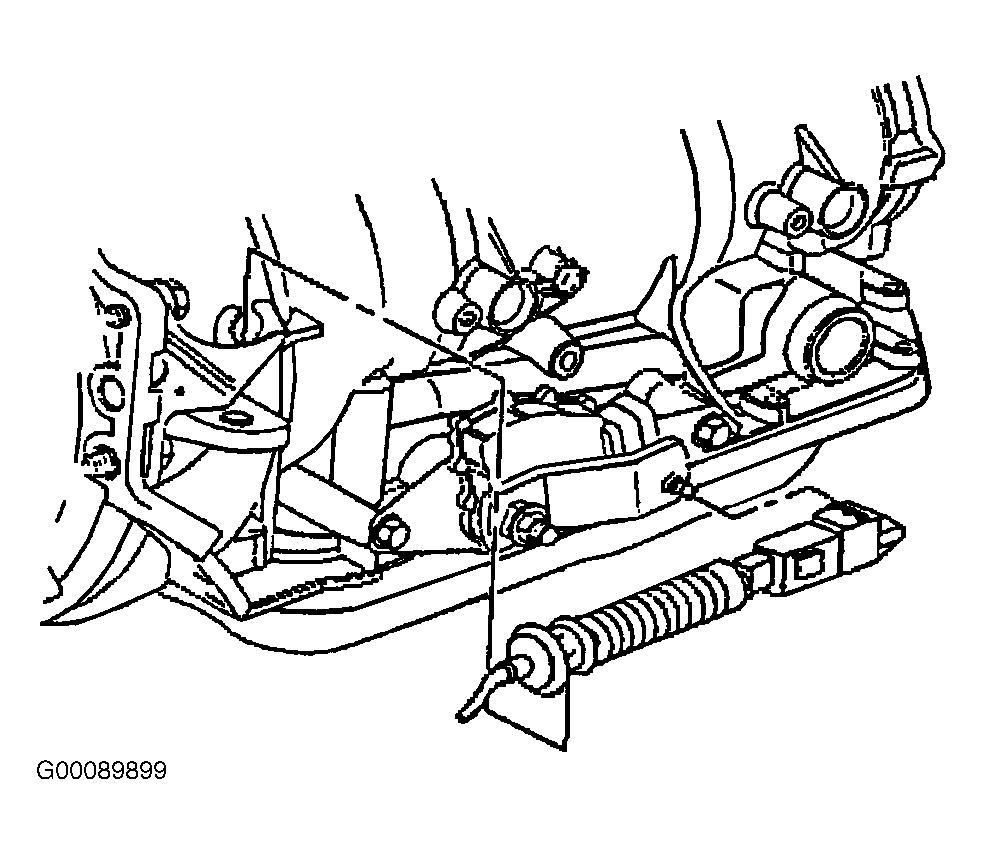

Fig 1: Locating Shift Cable Adjustment
G00089899Courtesy of GENERAL MOTORS CORP.

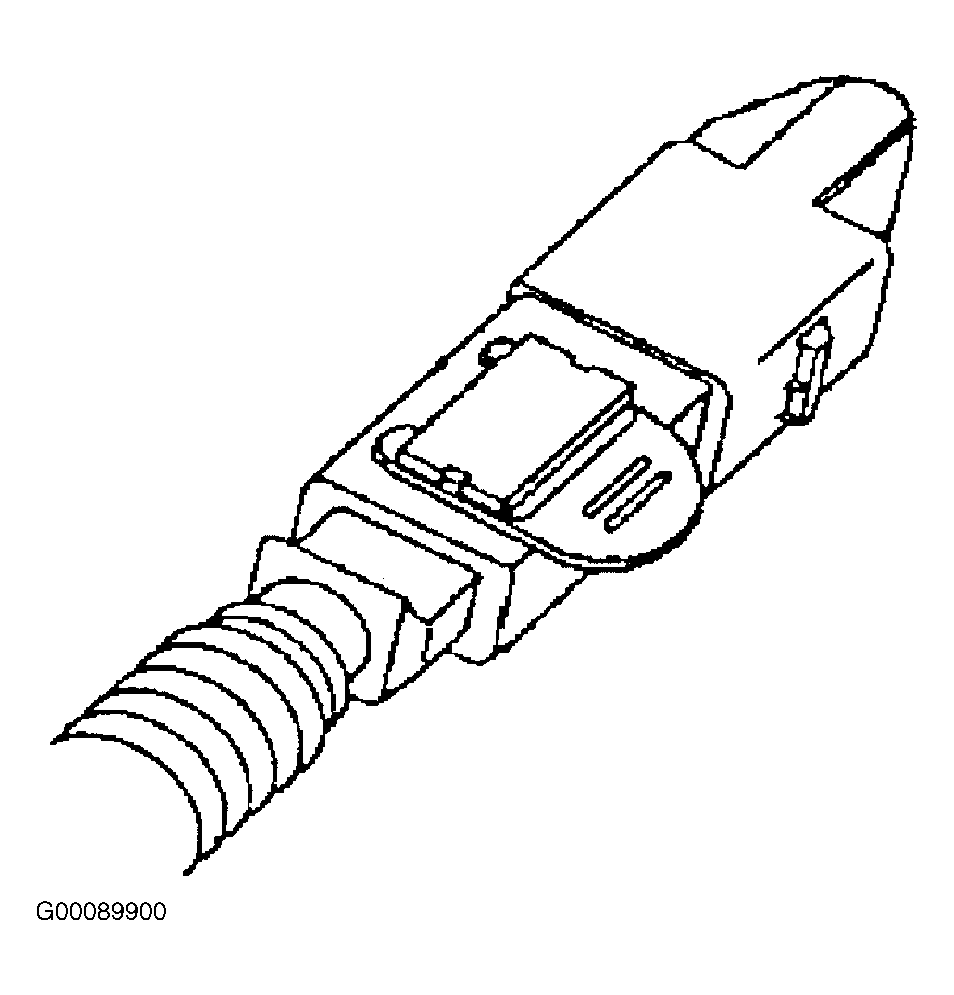

Fig 2: Removing Shipping Tag From Adjuster
G00089900Courtesy of GENERAL MOTORS CORP.
Fig 3: Locking Tab In Released Position
G00089901Courtesy of GENERAL MOTORS CORP.
Fig 4: Locking Tab In Locked Position
G00089902Courtesy of GENERAL MOTORS CORP.
