Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new stud into the hub flange hole using firm hand pressure.
  2. Install 4 washers to the new wheel stud.
  3. Thread a wheel nut onto the new stud with the flat side facing the front hub flange.
  4. Tighten the lug nut until the stud contacts the back of the hub flange.
  5. Remove the wheel nut.

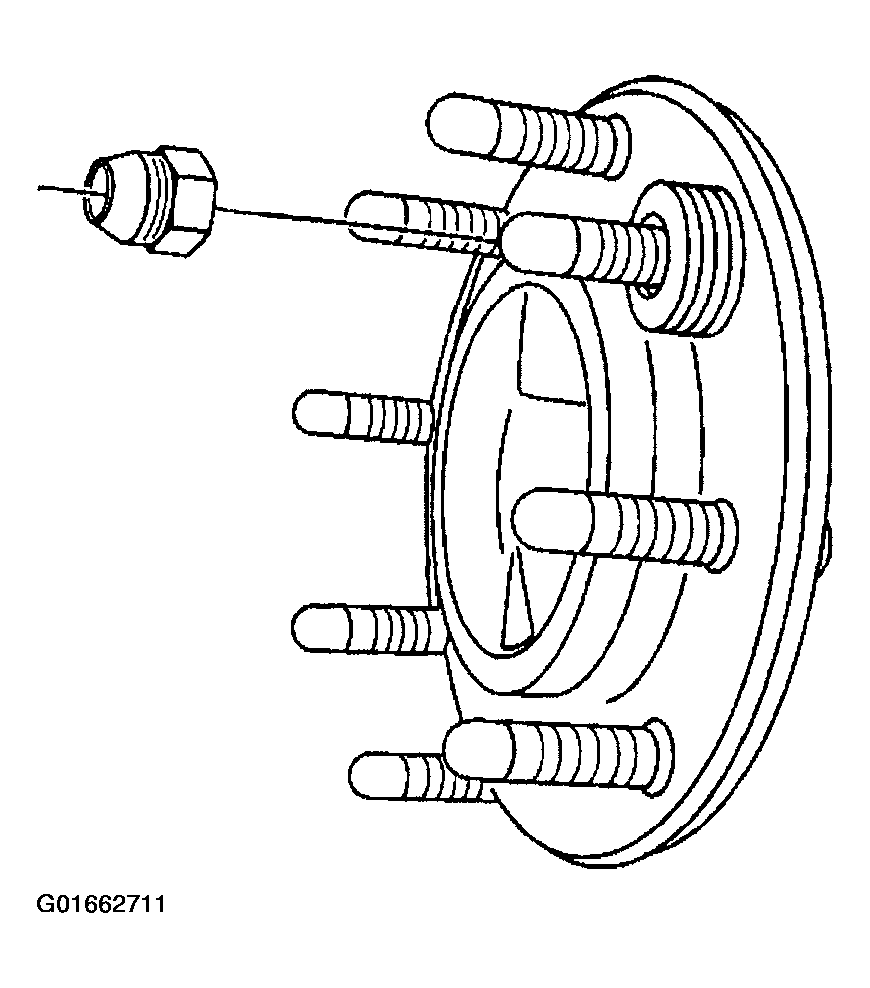

    6. Fig 1: Installing Wheel Nut
    G01662711Courtesy of GENERAL MOTORS CORP.
  6. Remove the washers.
  7. Install the brake rotor. Refer to BRAKE ROTOR .
  8. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  9. Remove the safety stands.
  10. Lower the vehicle.
