Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Place the insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.

  1. Install the insulators (1) to the stabilizer shaft (4).
  2. Install the stabilizer shaft (4).
  3. Install the brackets (2) over the insulators and the stabilizer shaft.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install insulator bracket bolts (3).

    Tighten

    1. 4.1.  Tighten the bolts to 33 N.m (24 lb ft), 15 series.
    2. 4.2.  Tighten the bolts to 50 N.m (39 lb ft), 25/35 series.
  5. Install the stabilizer links. Refer to Stabilizer Shaft Link Replacement .

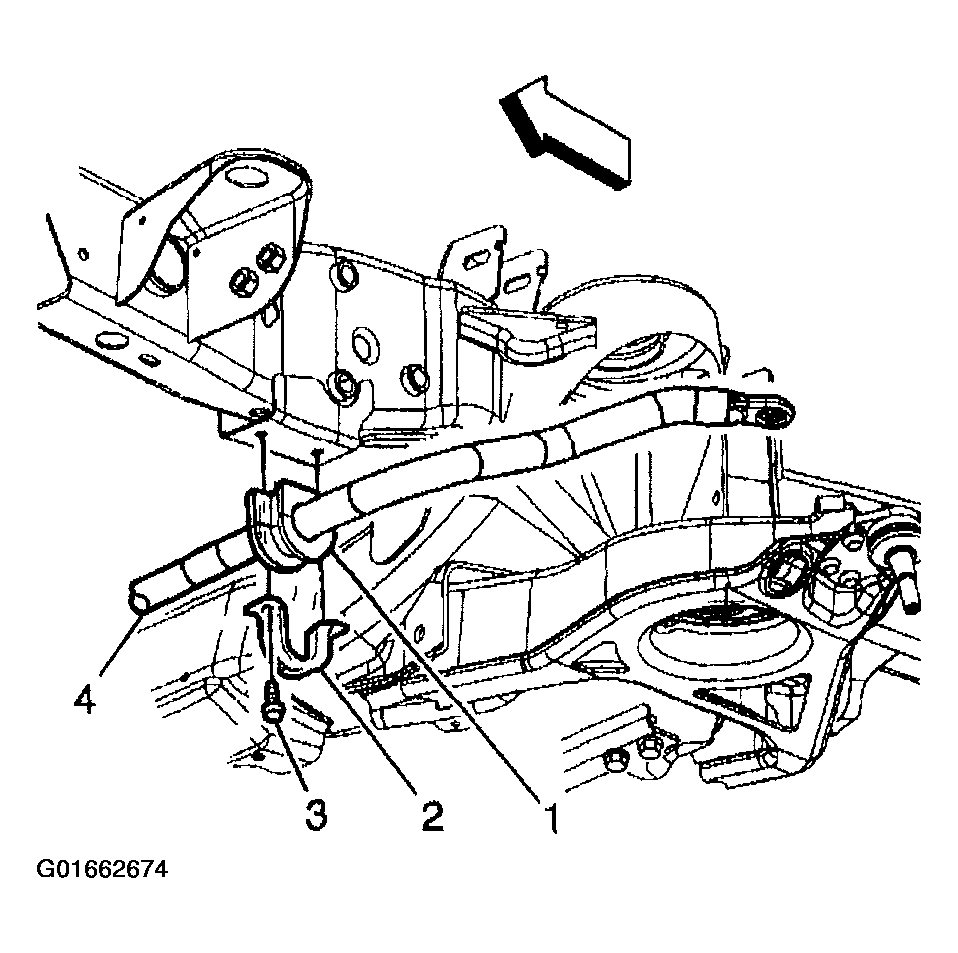

    Fig 1: Installing Stabilizer Shaft
    G01662674Courtesy of GENERAL MOTORS CORP.
  6. Install the oil pan skid plate, if equipped.

    Tighten

    Tighten the oil pan skid plate retaining bolts to 20 N.m (15 lb ft).

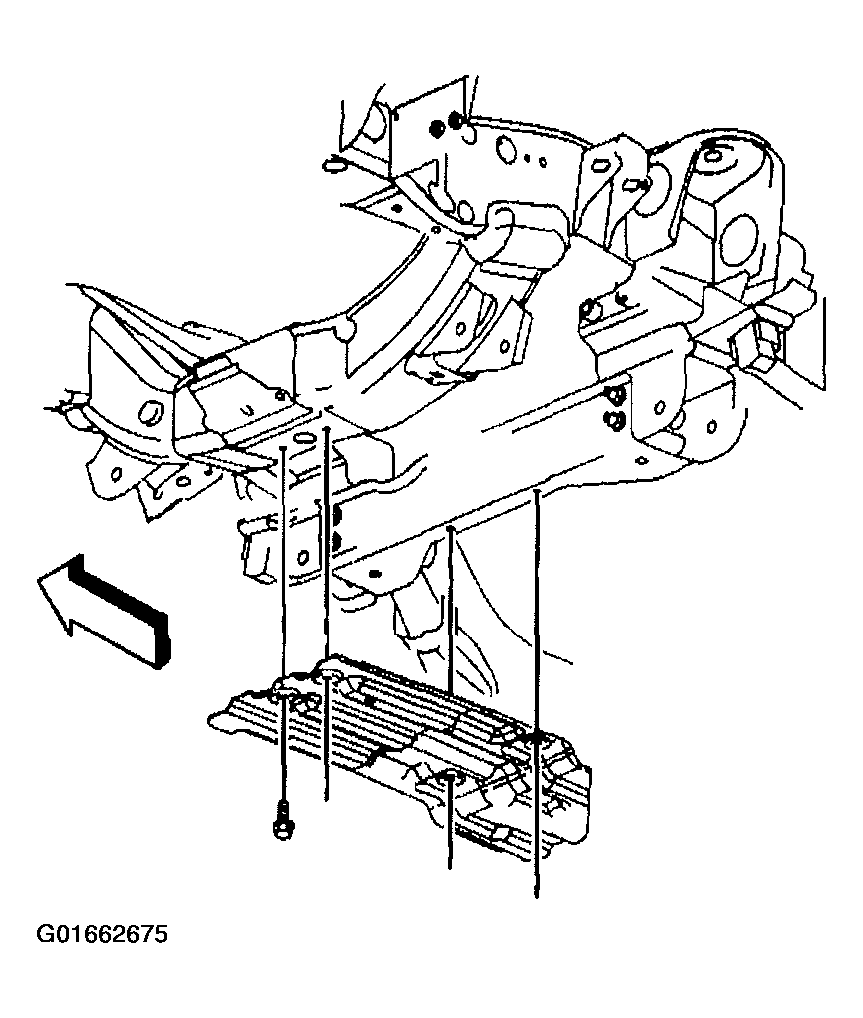

    Fig 2: Installing Oil Pan Skid Plate
    G01662675Courtesy of GENERAL MOTORS CORP.
  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Remove the safety stands
  9. Lower the vehicle.
