Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft link insulators and spacers (2).
  2. Install the stabilizer shaft link bolts (3).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft nut (1) to the link bolt.

    Tighten

    Tighten the nut to 10 N.m (81 lb in).

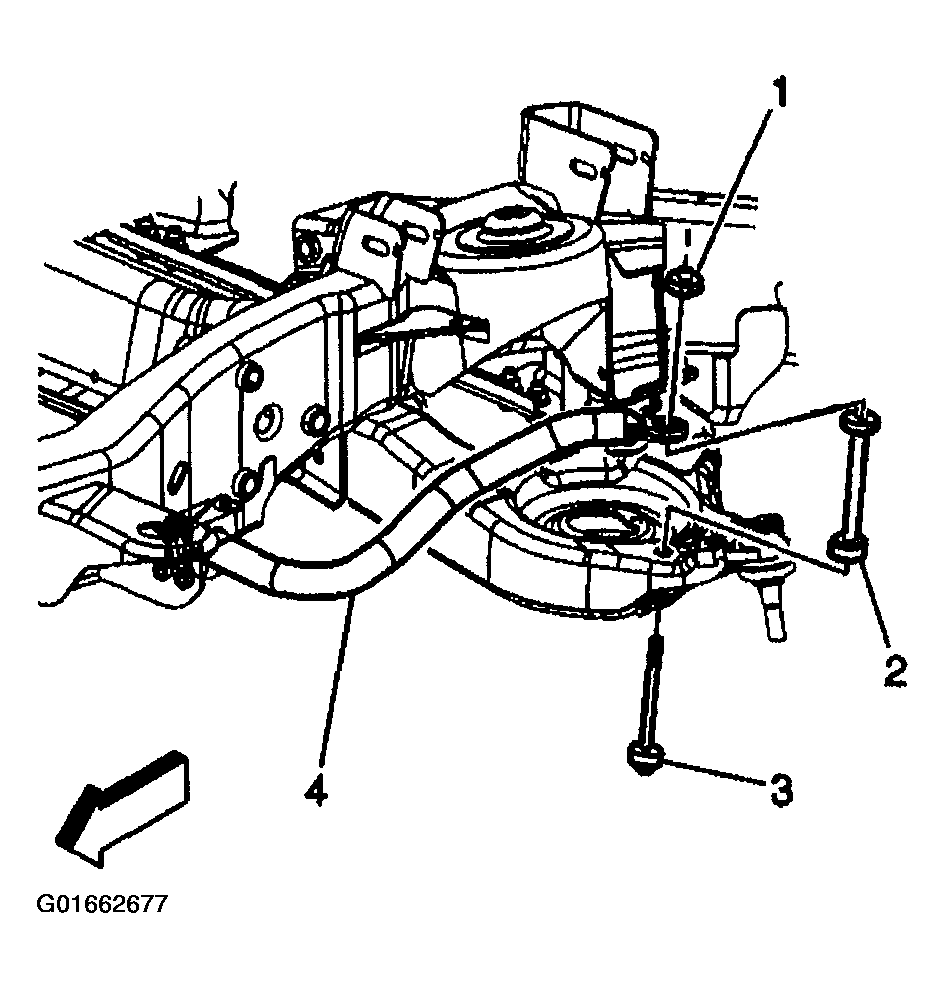

    4. Fig 1: Installing Stabilizer Shaft Link
    G01662677Courtesy of GENERAL MOTORS CORP.
  4. Remove the safety stands
  5. Lower the vehicle.
