Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arm.
  2. Install the lower control arm 15-series bolts.

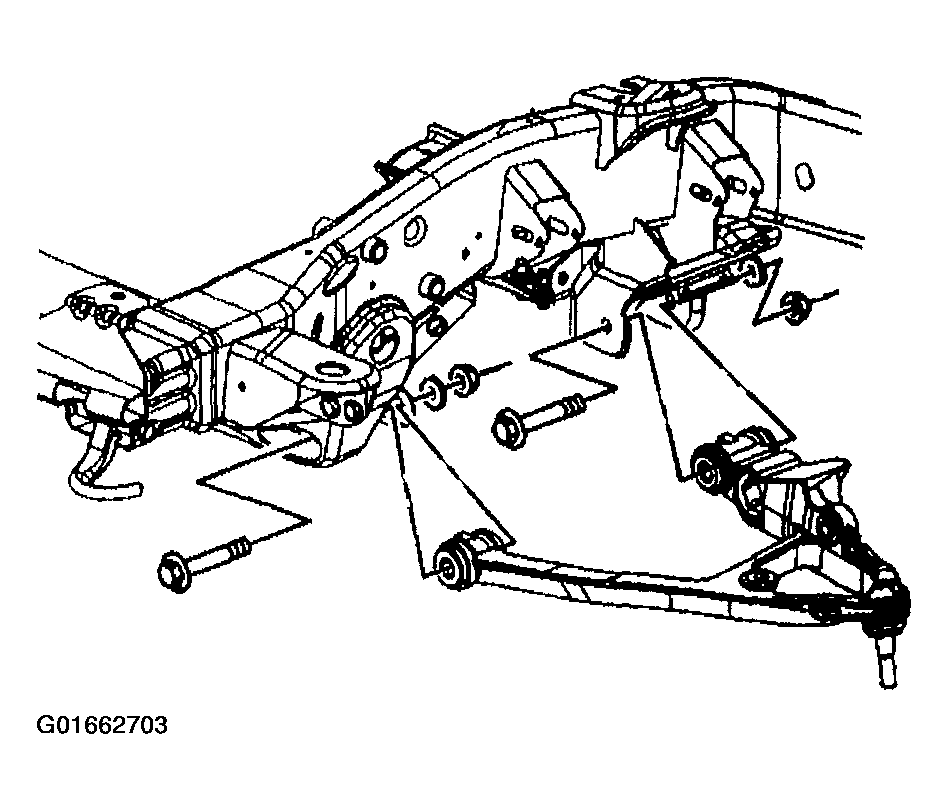

    Fig 1: Installing Lower Control Arm (15 Series)
    G01662703Courtesy of GENERAL MOTORS CORP.
  3. Install the lower control arm 25/35-series bolts.

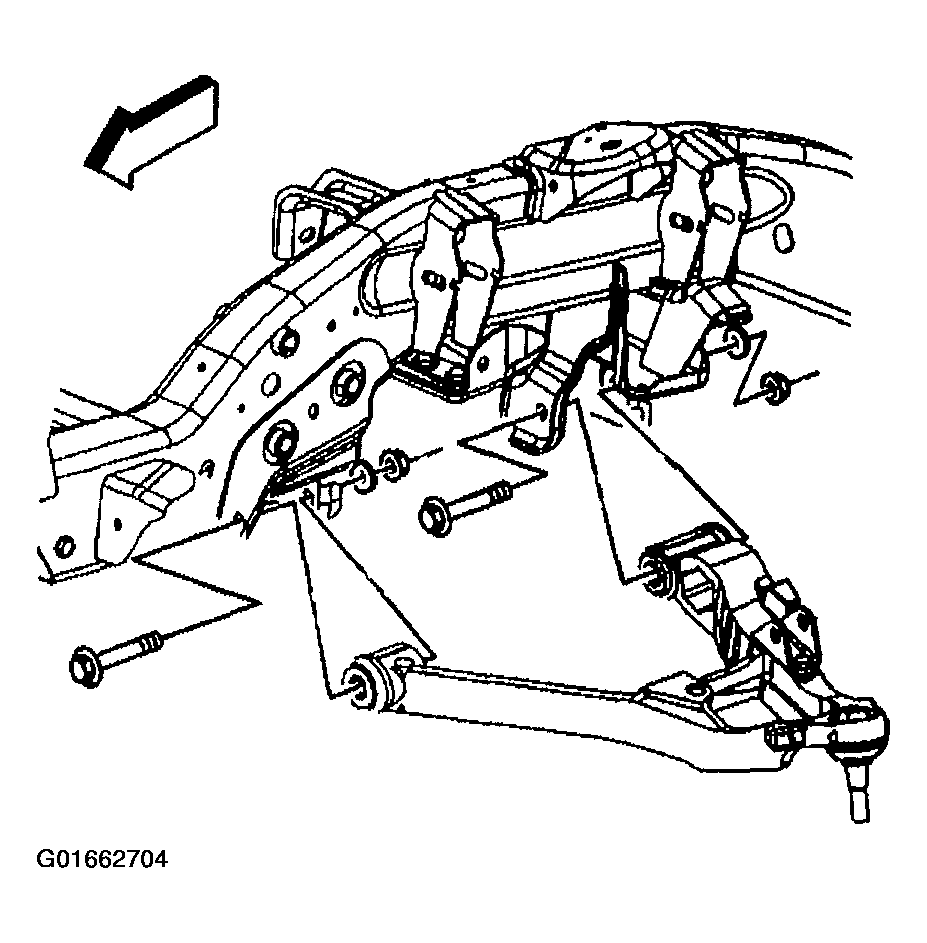

    Fig 2: Installing Lower Control Arm (25/35 Series)
    G01662704Courtesy of GENERAL MOTORS CORP.
  4. Install the washers with the shoulder facing the arm.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the lower control arm retaining nuts.

    Tighten

    Tighten the nuts to 150 N.m (110 lb ft).

  6. Install the wheel drive shaft. Refer to AXLE SHAFT , AXLE SHAFT or AXLE SHAFT .
  7. Connect lower ball joint stud to the steering knuckle.
  8. Install the nut to the lower ball joint stud.

    Tighten

    Tighten the nut to 100 N.m (74 lb ft).

    Fig 3: Installing Lower Ball Joint Stud Nut
    G01662705Courtesy of GENERAL MOTORS CORP.
  9. Install the torsion bars. Refer to Torsion Bar Replacement .
  10. Install the shock absorber lower nut and bolt. Refer to Shock Absorber Replacement (2WD)  or Shock Absorber Replacement (4WD)  .
  11. Install the stabilizer shaft links to the lower control arm. Refer to Stabilizer Shaft Replacement .
  12. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  13. Remove the safety stands.
  14. Lower the vehicle.
  15. Align the vehicle. Refer to SPECIFICATIONS .
