Decoration Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the decoration panel outward and detach the clips A and tab B in the order shown in the figure.
  2. Remove the decoration panel.
  3. Install in the reverse order of removal.

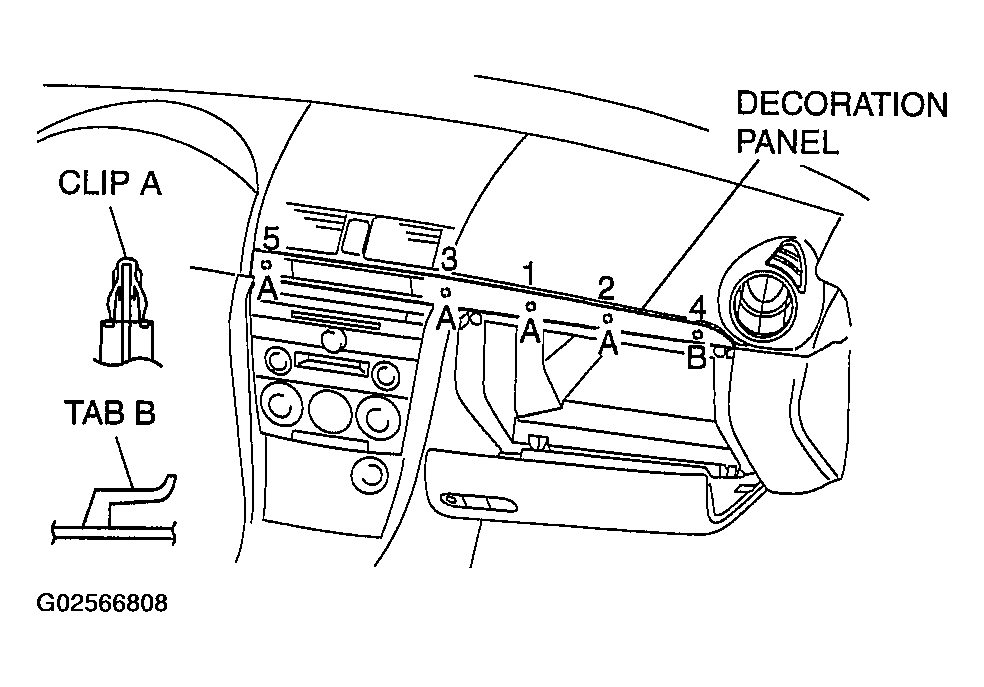

    Fig 1: Removing/Installing Decoration Panel
    G02566808Courtesy of MAZDA MOTORS CORP.
