Blower Motor Cover Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the lock on the top of the blower motor cover and rotate the blower motor cover clockwise.

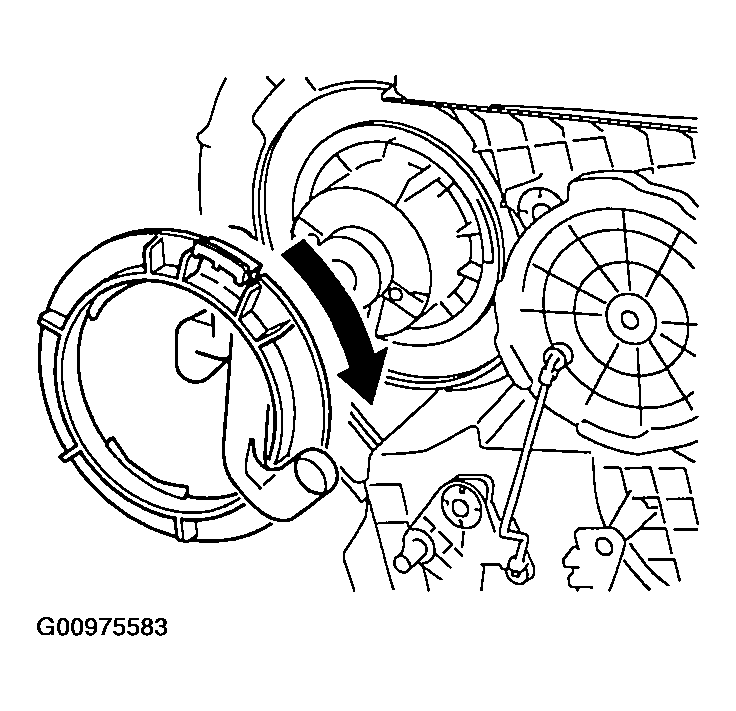

    Fig 1: Removing Blower Motor Cover
    G00975583Courtesy of MAZDA MOTORS CORP.
