Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust crossover pipe.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the exhaust crossover pipe bolts.

    Tighten

    Tighten the exhaust crossover pipe bolts to 25 N.m (18 lb ft).

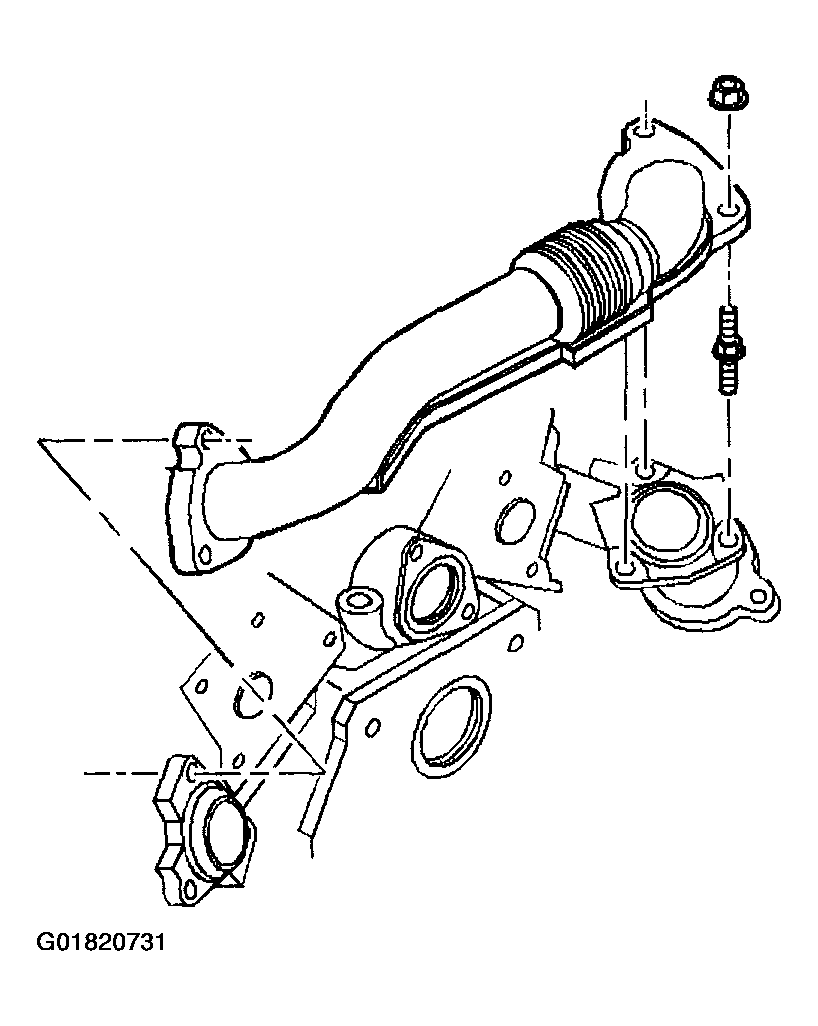

    Fig 1: Installing Exhaust Crossover Pipe
    G01820731Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust crossover pipe heat shield.
  4. Install the exhaust crossover pipe heat shield bolts.

    Tighten

    Tighten the exhaust crossover pipe heat shield bolts to 10 N.m (89 lb in).

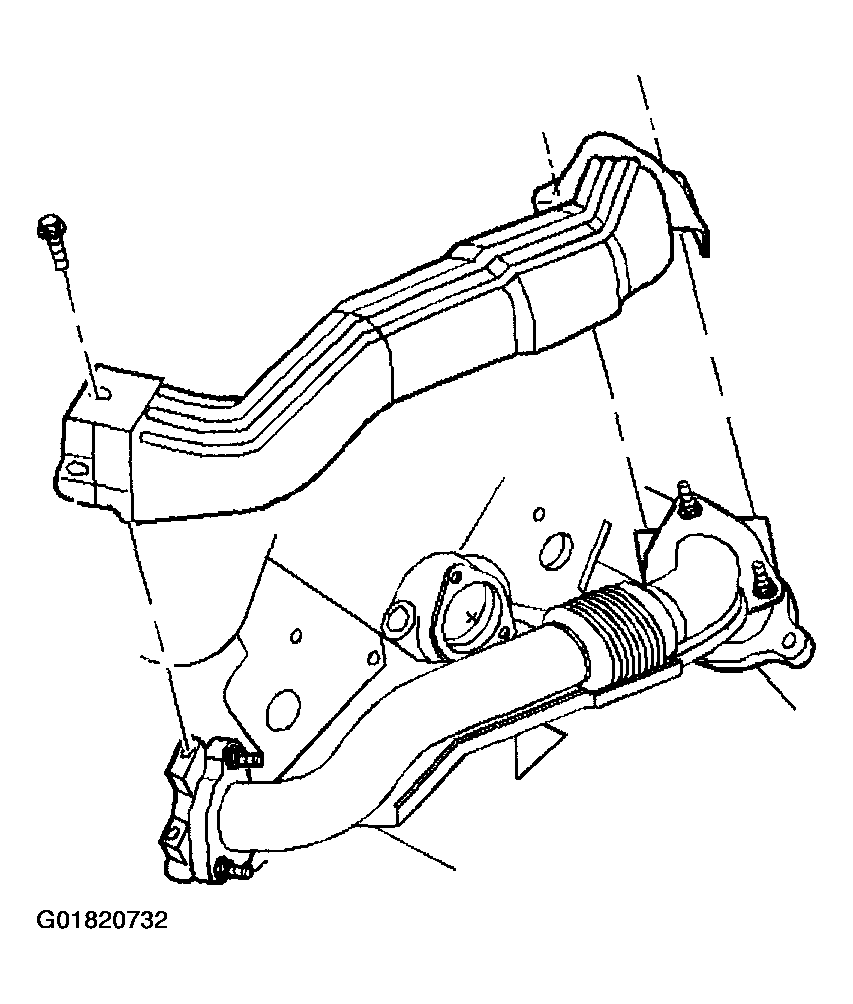

    5. Fig 2: Installing Exhaust Crossover Pipe Heat Shield
    G01820732Courtesy of GENERAL MOTORS CORP.
  5. Install thermostat by-pass pipe assembly. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT in Engine Cooling.
  6. Install the air cleaner assembly.
  7. Inspect for exhaust leaks.
