Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable (2). Refer to Battery Negative Cable Disconnect/Connect Procedure  .
  2. Disconnect the positive battery cable (1 ).
  3. Remove the battery hold down retainer.

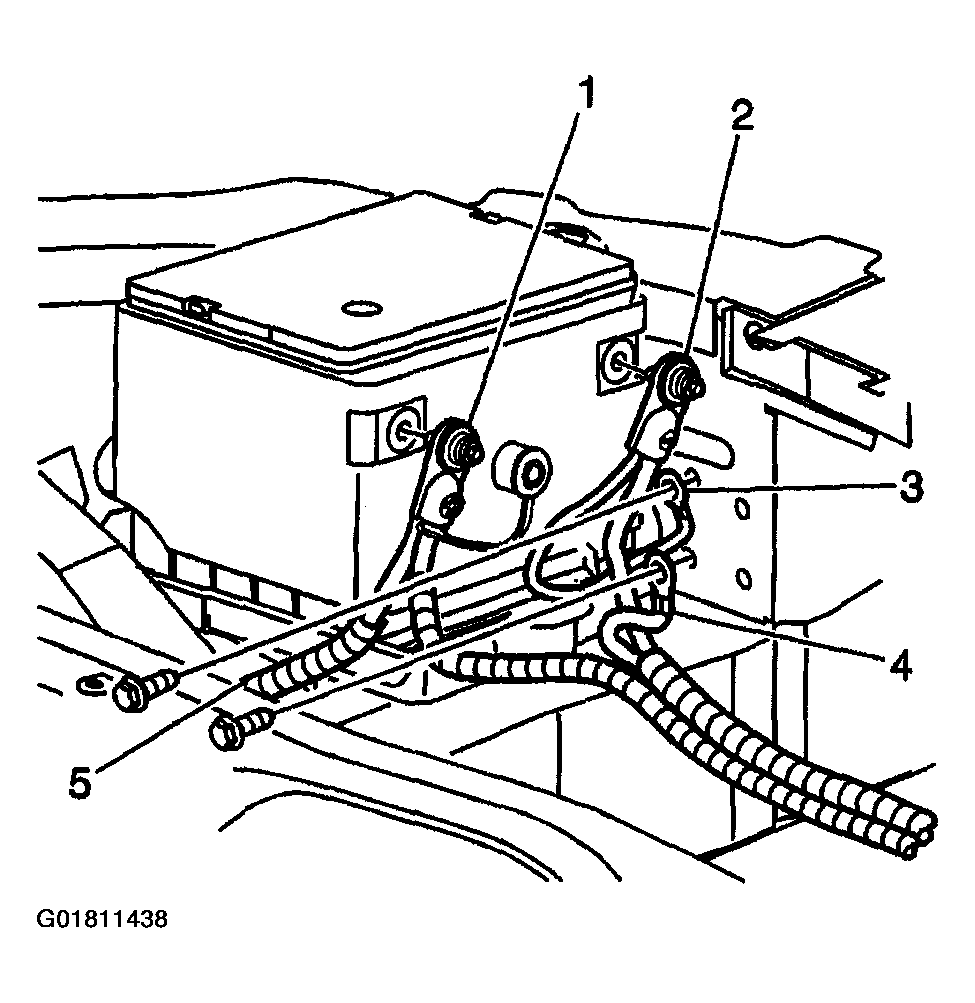

    Fig 1: Disconnecting Battery Cables
    G01811438Courtesy of GENERAL MOTORS CORP.

    Important:  Do not tip the battery more than 40 degrees during removal.

  4. Remove the battery.

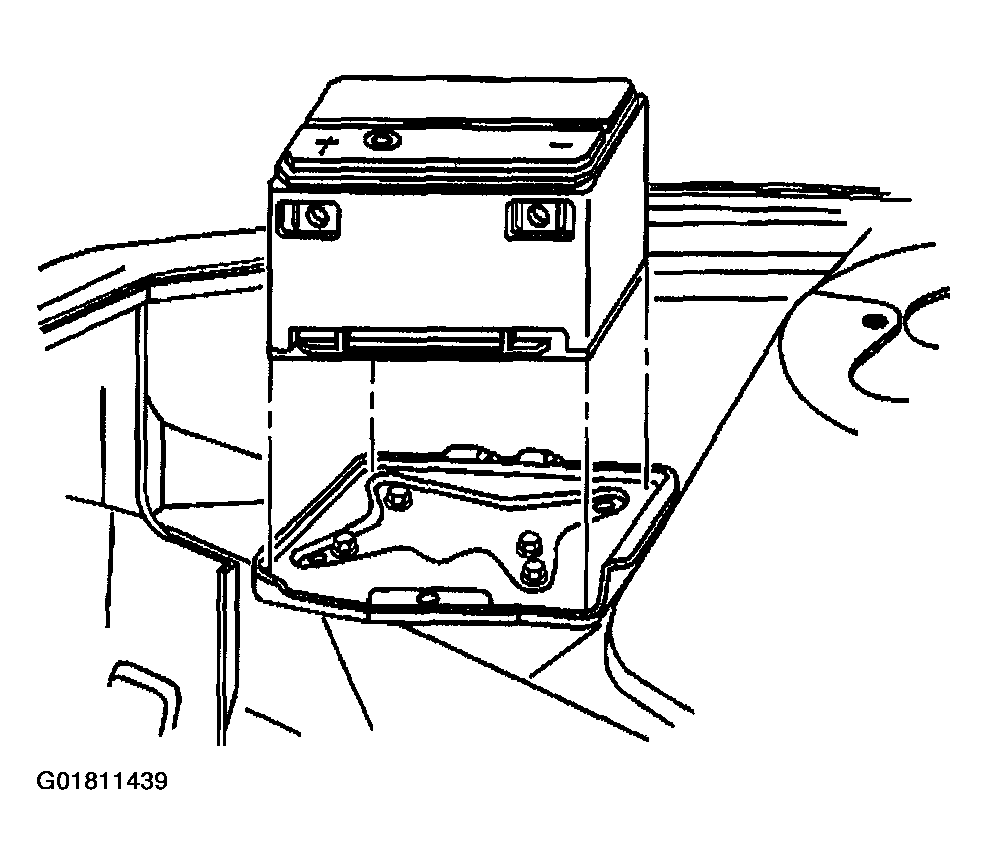

    Fig 2: Removing Battery
    G01811439Courtesy of GENERAL MOTORS CORP.
