Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.

Important:  Clean any existing oxidation from the contact face of the battery terminal and battery cable using a wire brush before installing the battery cable to the battery terminal.

Connect the battery negative cable to the battery.

Tighten

Tighten the battery negative terminal bolt to 16 N.m (12 lb ft).

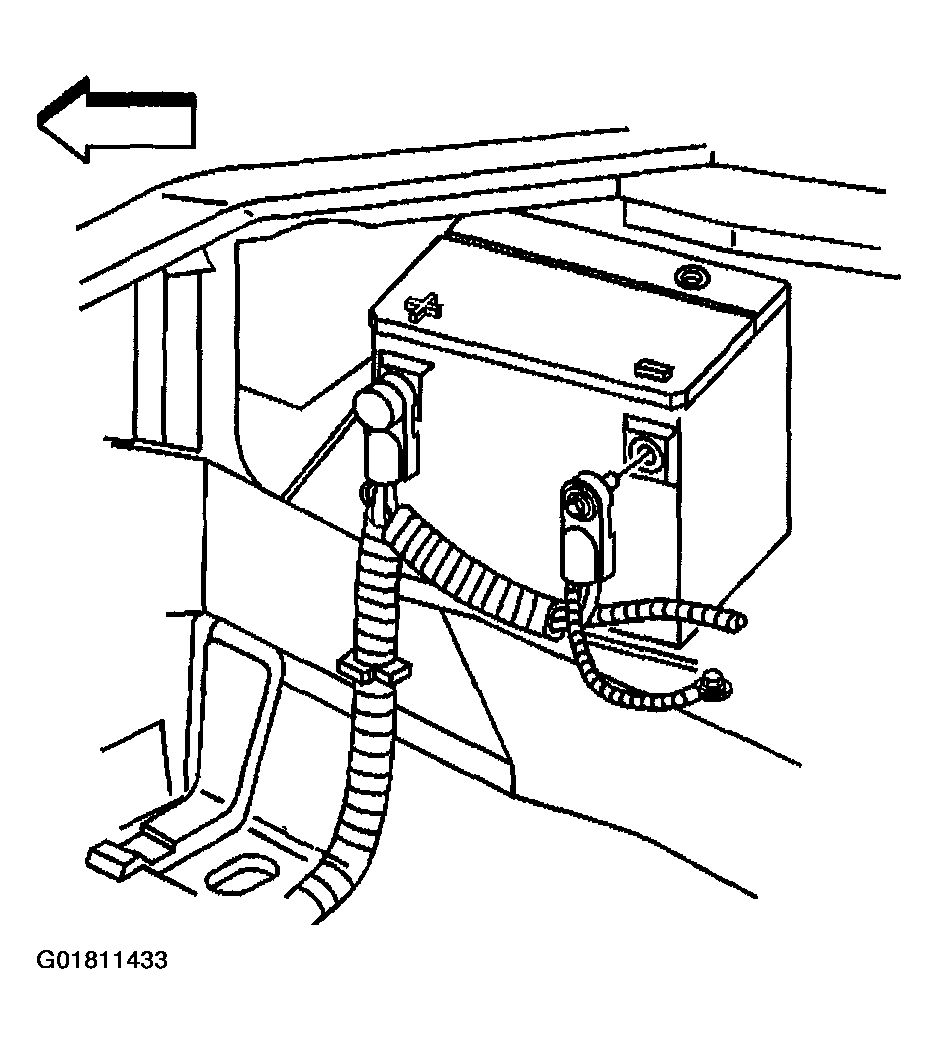

Fig 1: Connecting Negative Cable
G01811433Courtesy of GENERAL MOTORS CORP.
