Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement-Rear Door Window Belt Outer .
  3. Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement-Rear Door Window Belt Inner .
  4. Remove the rear door window frame applique. Refer to Door Frame Applique Replacement-Rear .
  5. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  6. Remove the rear door side window. Refer to Window Replacement-Rear Door .
  7. Remove the screw securing the rubber seal strip to the upper window frame.
  8. Remove the rubber seal strip from the upper window frame.
  9. Remove the screws (2, 4) securing the rear door stationary window to the inner door panel.
  10. Remove the bolt (3) securing the rear door stationary window to the inner door panel.
  11. Remove the rear door stationary window (1) from the rear door.

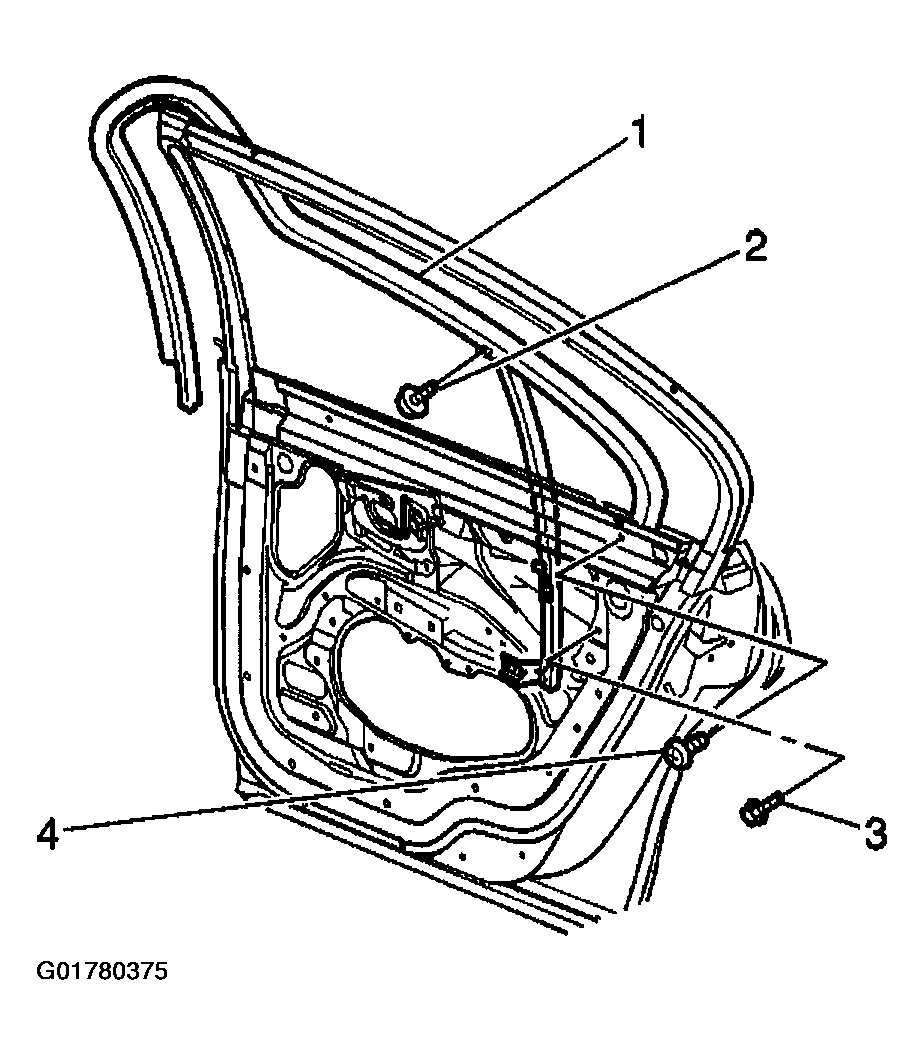

    Fig 1: Removing Rear Door Stationary Window
    G01780375Courtesy of GENERAL MOTORS CORP.
