Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bezel (1) to the power window switch (3) by pressing it into the retainers until fully seated.
  2. Connect the electrical connector (2) to the power window switch (3).
  3. Install the power window switch (3) to the door trim panel by pressing it until fully seated.

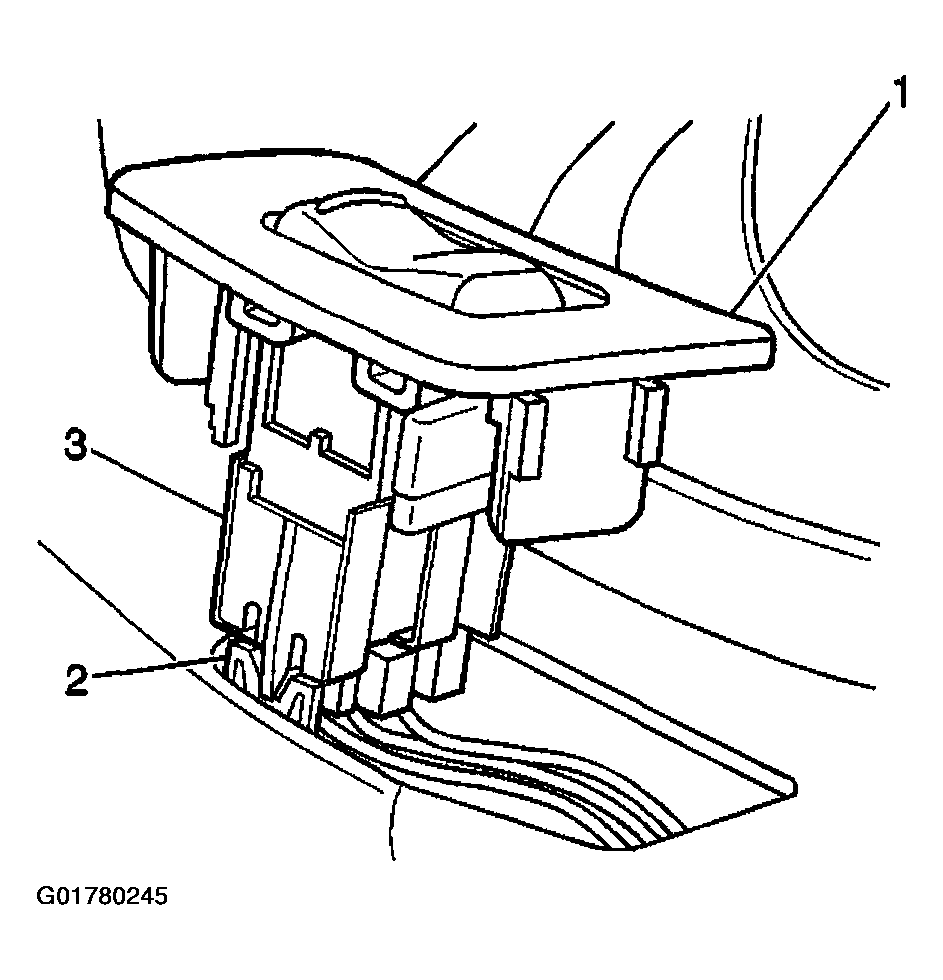

    Fig 1: Installing Right Front Power Window Switch
    G01780245Courtesy of GENERAL MOTORS CORP.
