Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed tool release the power accessory switch plate retainers (1).

    Push in and lift up on the retainers (1) to remove the switch plate from the door trim panel.

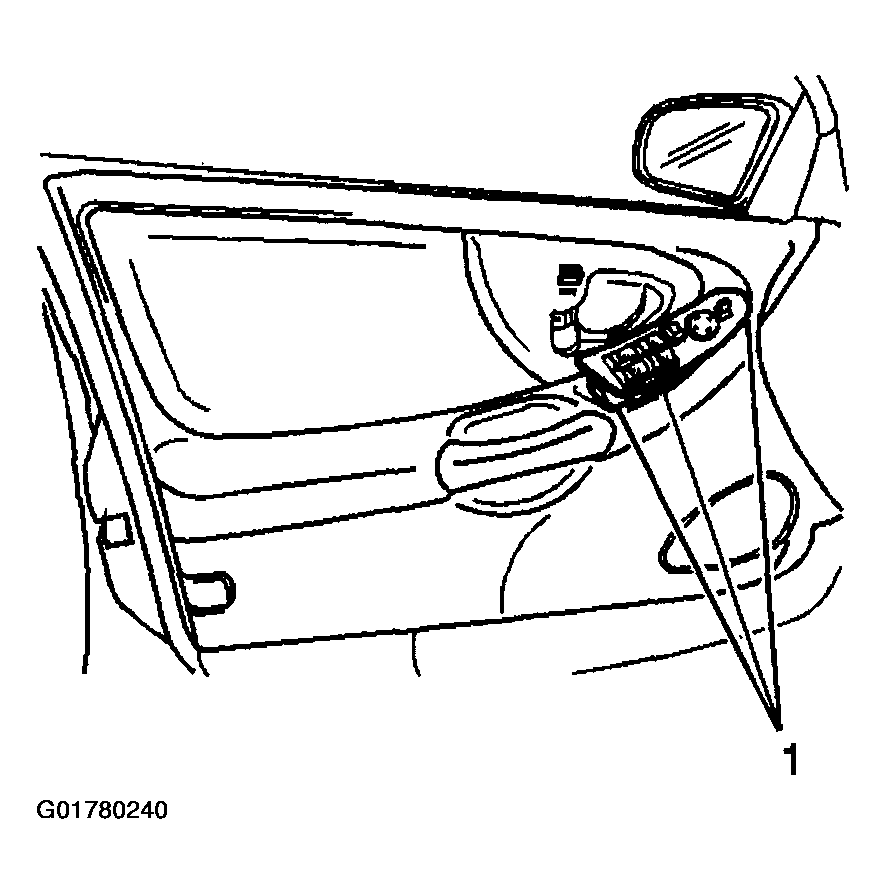

    Fig 1: Removing Power Accessory Switch Plate
    G01780240Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors (2) from the power window switch.
  3. Release the power window switch retainers. Push the window switch out of the switch plate.

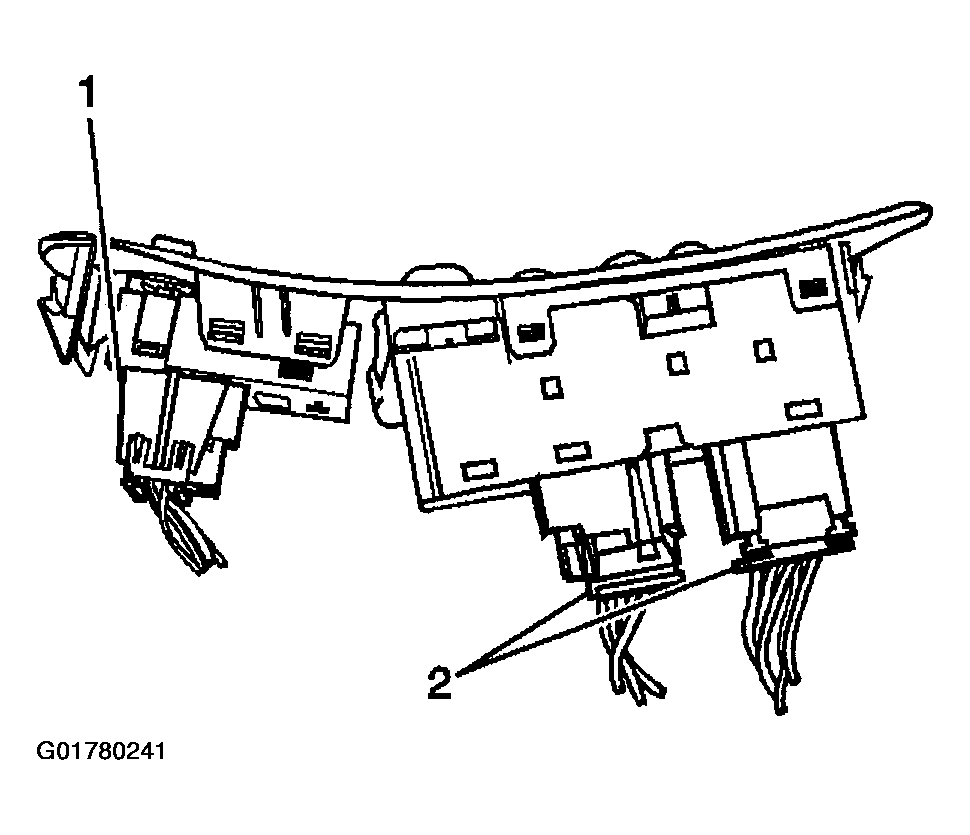

    Fig 2: Disconnecting Power Accessory Switch Plate Electrical Connectors
    G01780241Courtesy of GENERAL MOTORS CORP.
