Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade bezel (2) to the headliner (1) if required.
  2. Connect the electrical connector if required.
  3. Align the sunshade (3) parallel to the door.
  4. Install the sunshade (3) to the sunshade bezel (2). Push up on the sunshade (3) and rotate the sunshade toward the front glass in order to connect the retention clip.
  5. Reattach the sunshade (3) to the sunshade anchor.

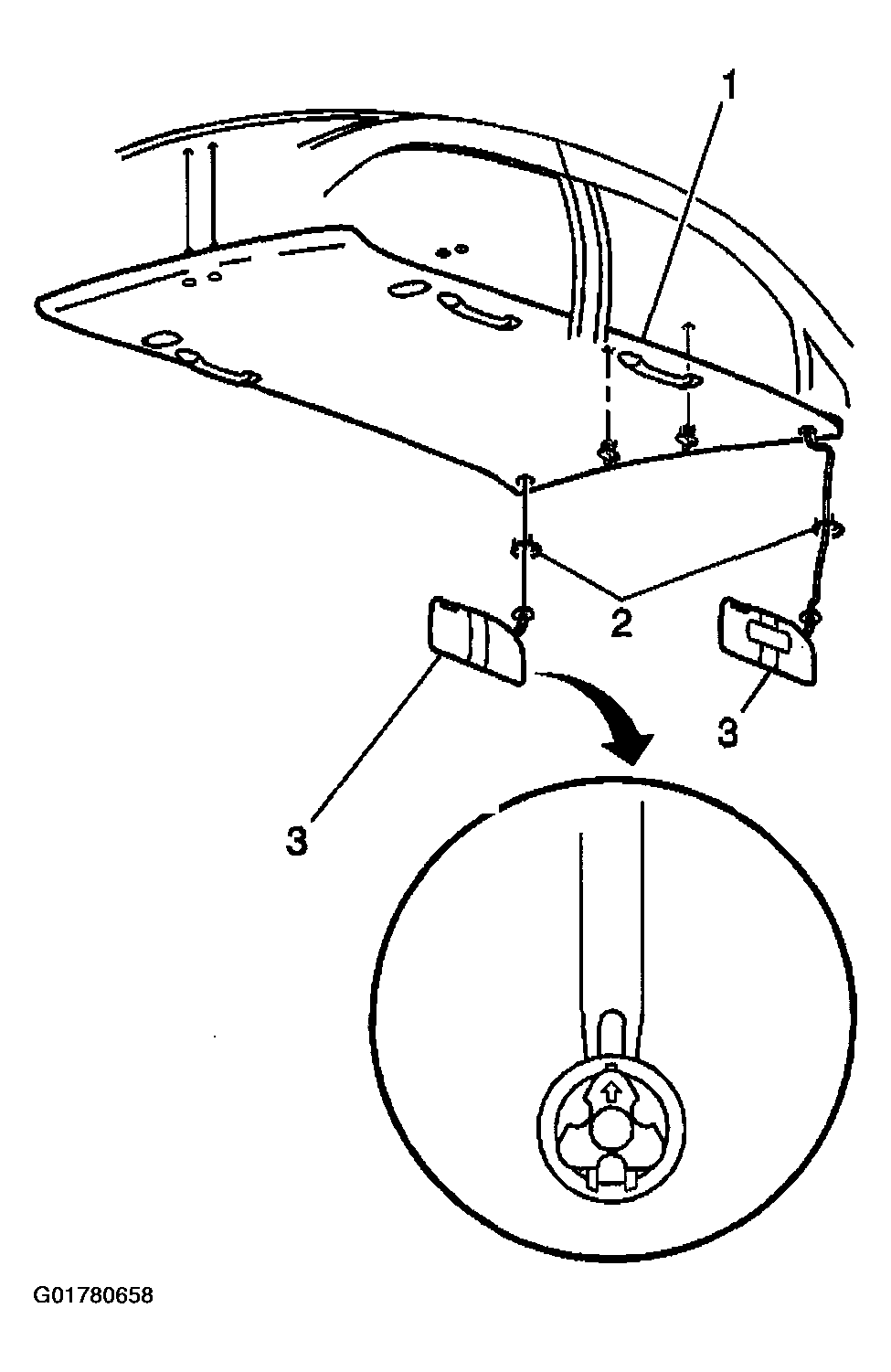

    Fig 1: Installing Sunshade
    G01780658Courtesy of GENERAL MOTORS CORP.
