Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat. Manually tilt the seat forward in order to engage the hooks to the floor pan.
  2. Connect the power seat electrical connector, if equipped, (driver's side only).
  3. Connect the seat belt wiring harness (driver's side only).
  4. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the front seat adjuster bolts (1).

    Tighten

    Tighten the bolts to 40 N.m (30 lb ft).

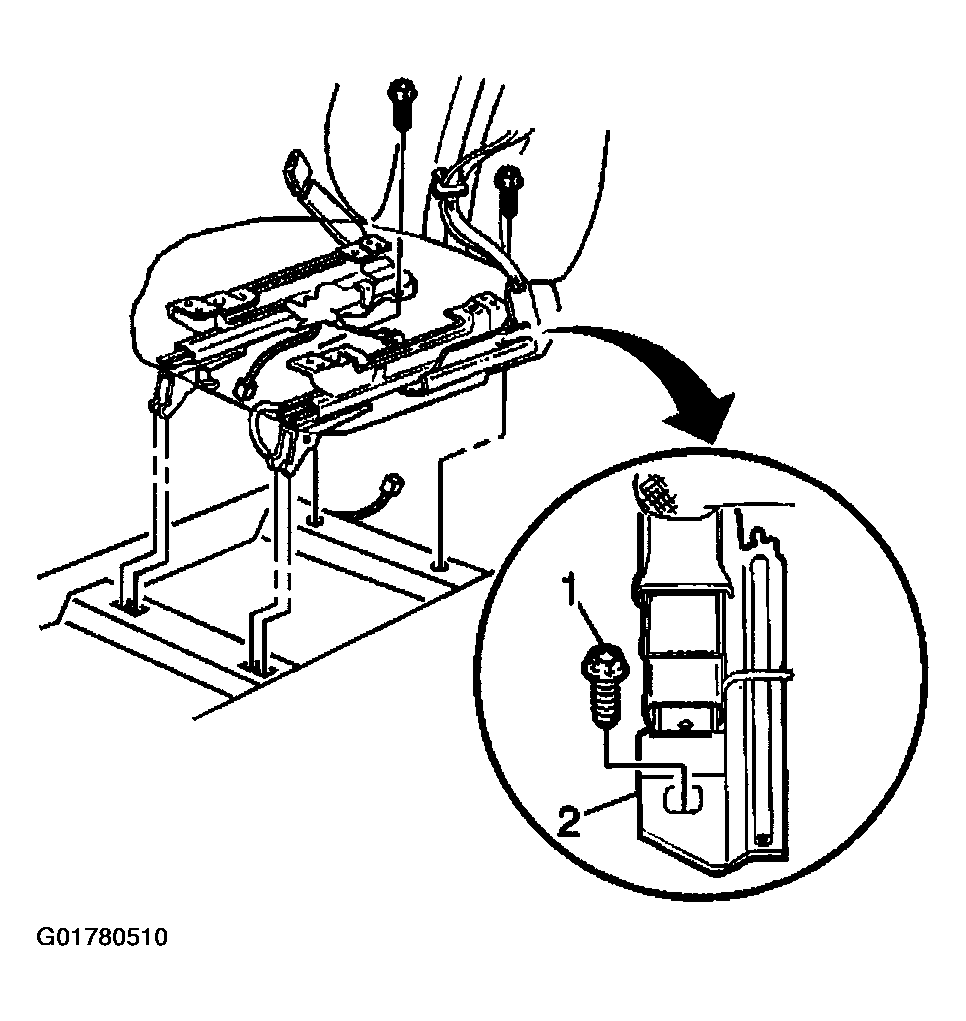

    Fig 1: Installing Seat
    G01780510Courtesy of GENERAL MOTORS CORP.
