Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame to the seat back recliner.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat back recliner bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Install the seat back pad to the seat back frame.
  4. Install the seat back cushion cover. Refer to Seat Back Cover Replacement - Front .

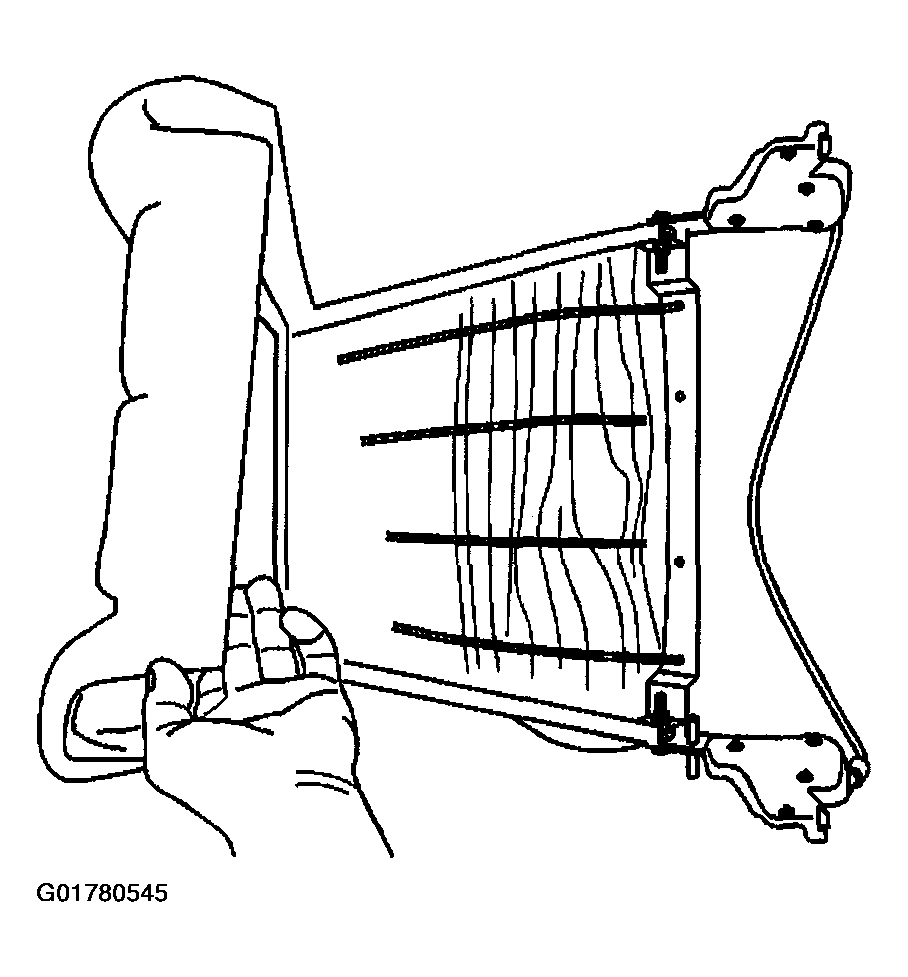

    Fig 1: Installing Front Seat Back Frame
    G01780545Courtesy of GENERAL MOTORS CORP.
