Scan Tool Data List

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

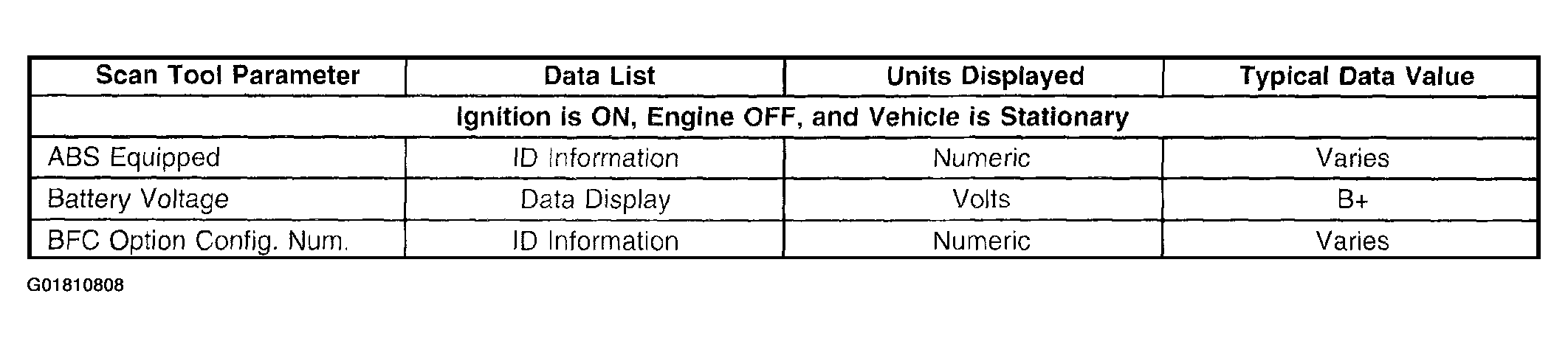

Fig 1: Body Control Module (BCM)
G01810808Courtesy of GENERAL MOTORS CORP.

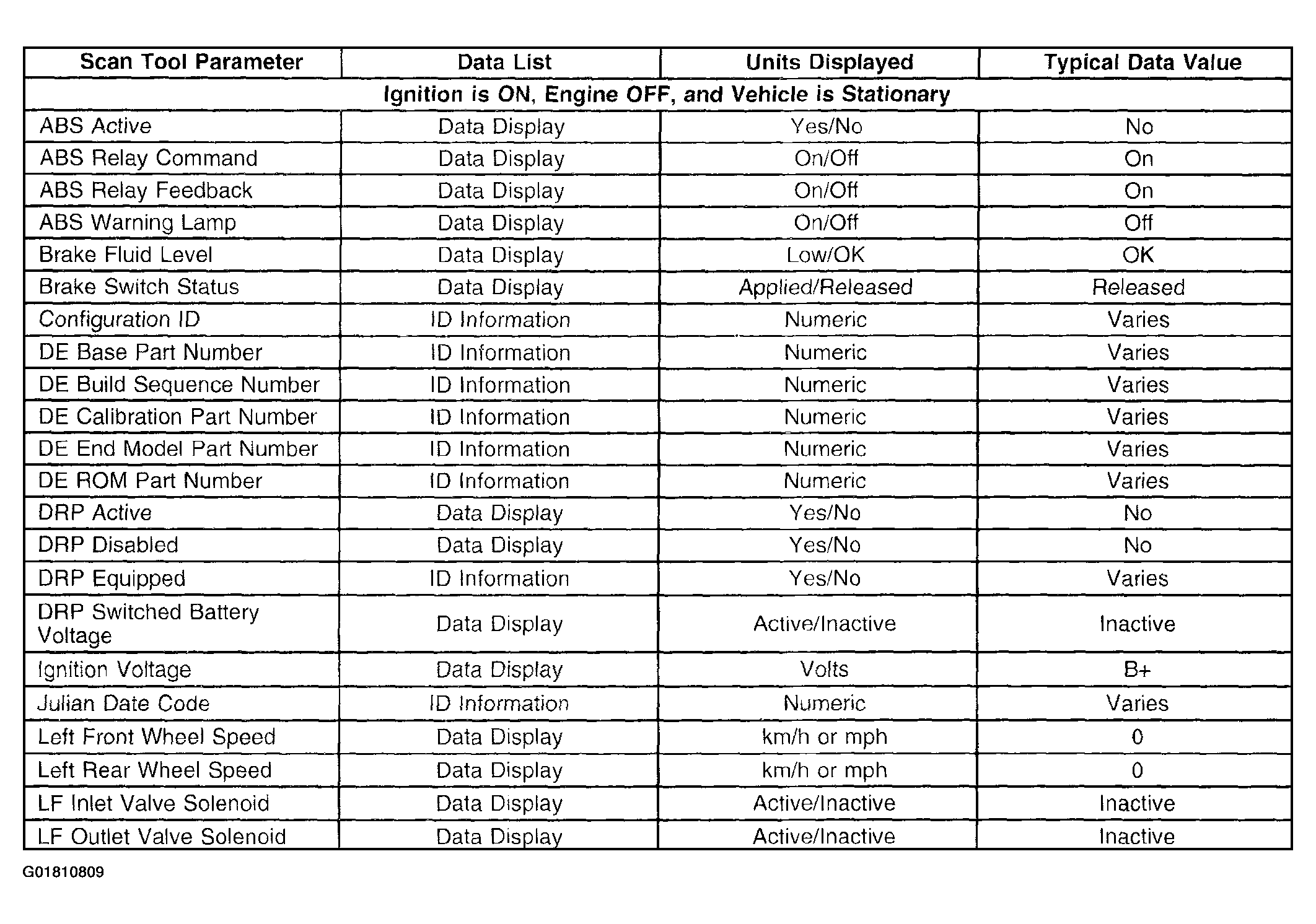

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 2)
G01810809Courtesy of GENERAL MOTORS CORP.

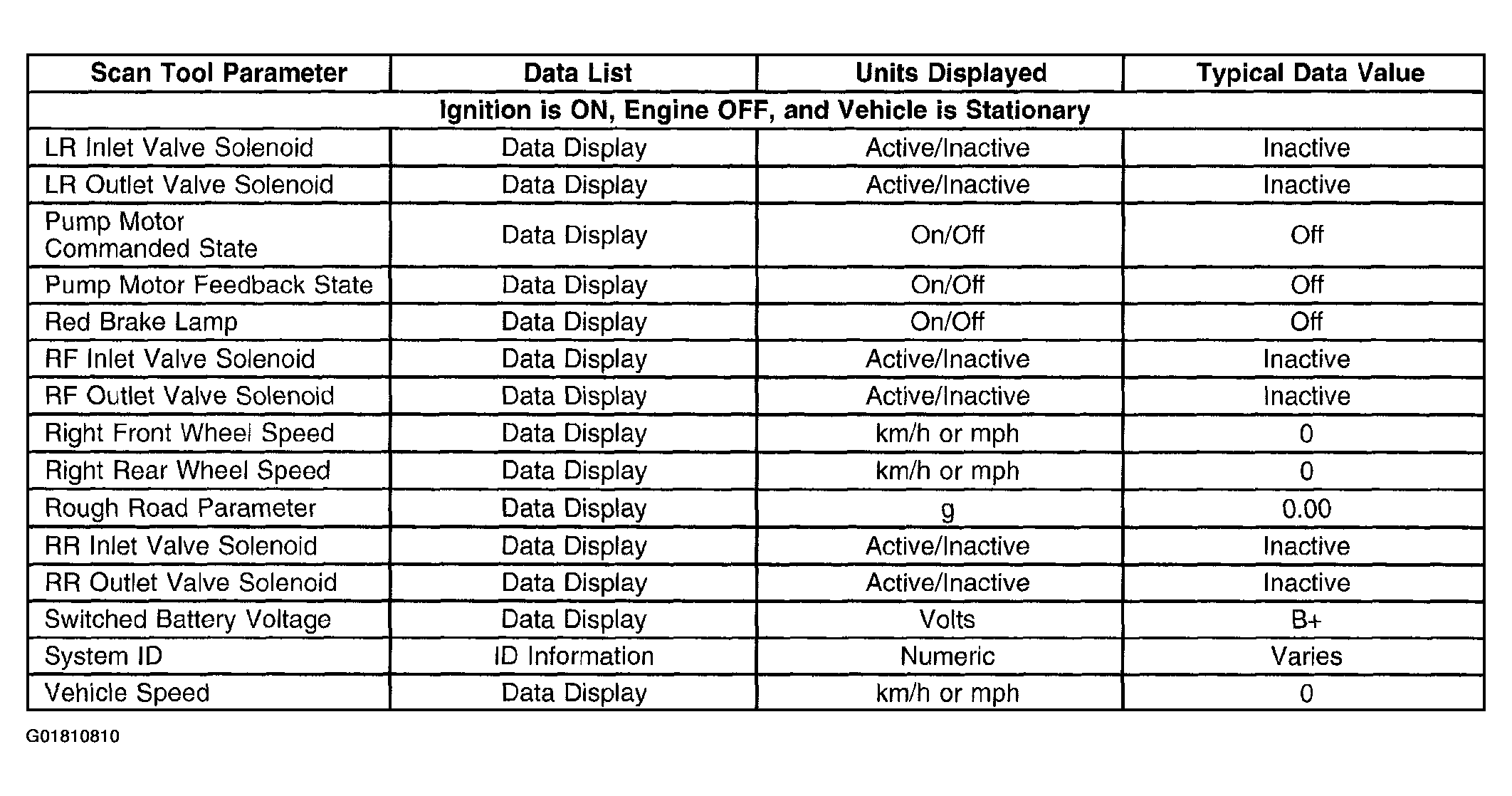

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 2)
G01810810Courtesy of GENERAL MOTORS CORP.
