Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. In order to remove the engine ground strap the battery negative cable is removed from the engine. Some of the vehicle information may get discarded when the battery negative cable is removed. Refer to RADIO/AUDIO SYSTEM DESCRIPTION & OPERATION (CLASS 2 RADIO) for the information that may have to be reset. The battery negative cable does not require disconnection at the battery.
  2. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the bolt retaining the battery negative cable and the ground strap to the engine.

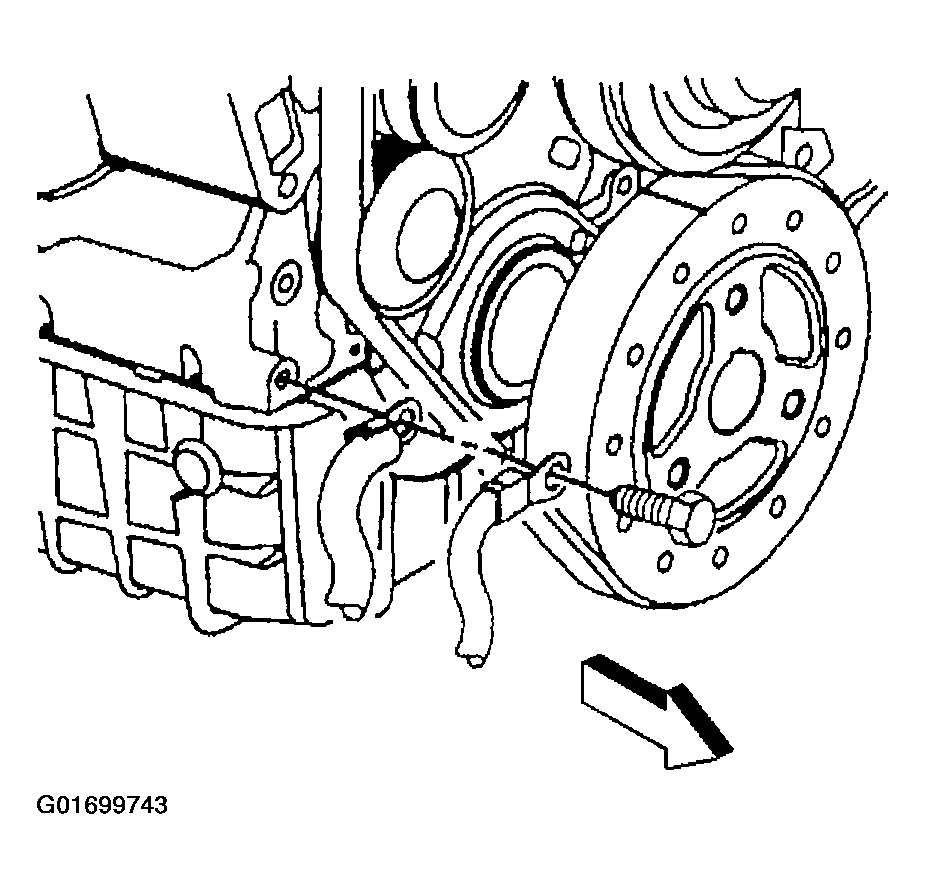

    Fig 1: Removing Bolt Retaining Battery Negative Cable & Ground Strap To Engine
    G01699743Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt retaining the ground strap to the frame.
  5. Remove the ground strap.

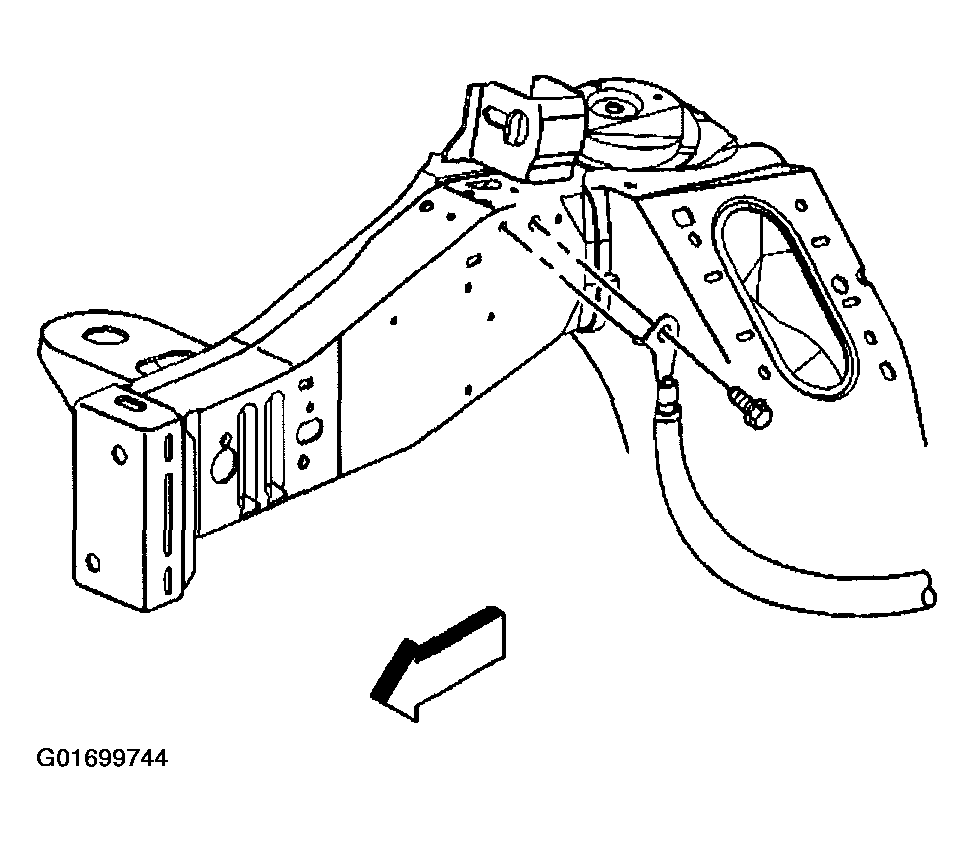

    Fig 2: Removing Ground Strap
    G01699744Courtesy of GENERAL MOTORS CORP.
