Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the negative battery terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery positive cable from the positive battery terminal. Refer to Battery Positive Cable Replacement .
  3. Remove the battery hold-down retainer bolt and retainer.
  4. Remove the battery from the vehicle.

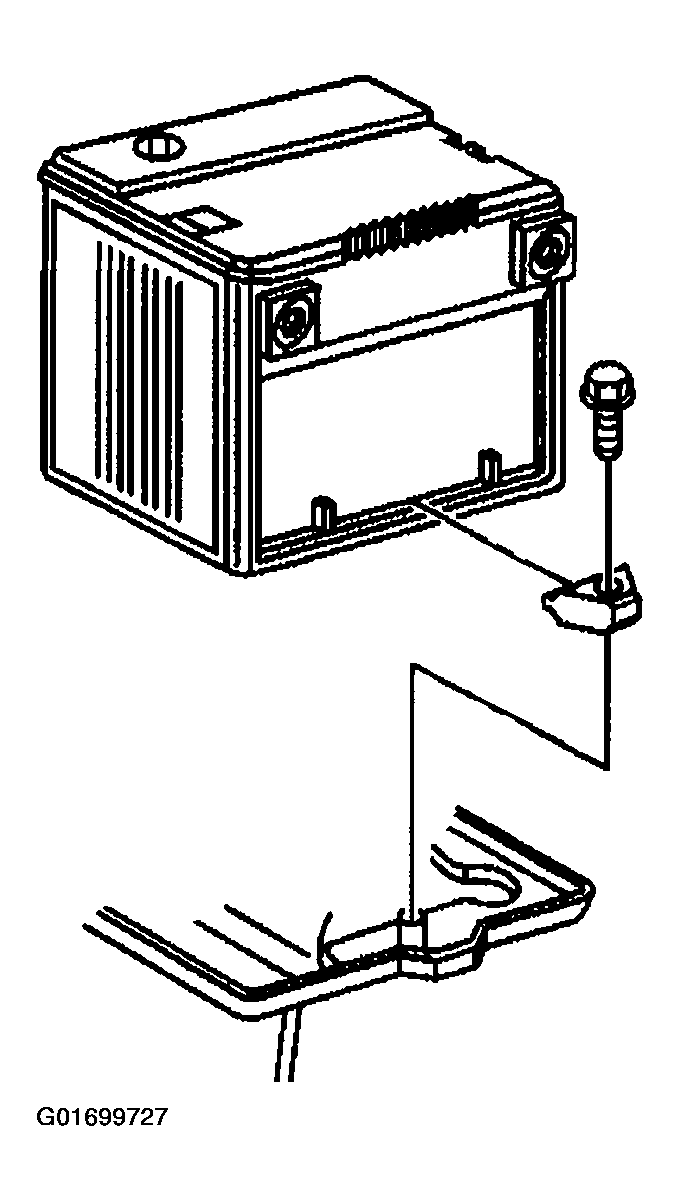

    5. Fig 1: Removing Battery
    G01699727Courtesy of GENERAL MOTORS CORP.
  5. Inspect the battery for:
    • Damage
    • Worn or corroded cables and connectors
    • Damage or foreign objects in the battery carrier
  6. If damage is noted, find and correct the cause.
  7. Clean any corrosion form the battery cables and connectors.
  8. Clean the battery tray and remove any foreign objects from the tray.
