Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt retaining the coolant recovery reservoir or surge tank.
Move the coolant recovery reservoir or the surge tank aside.
WARNING: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .

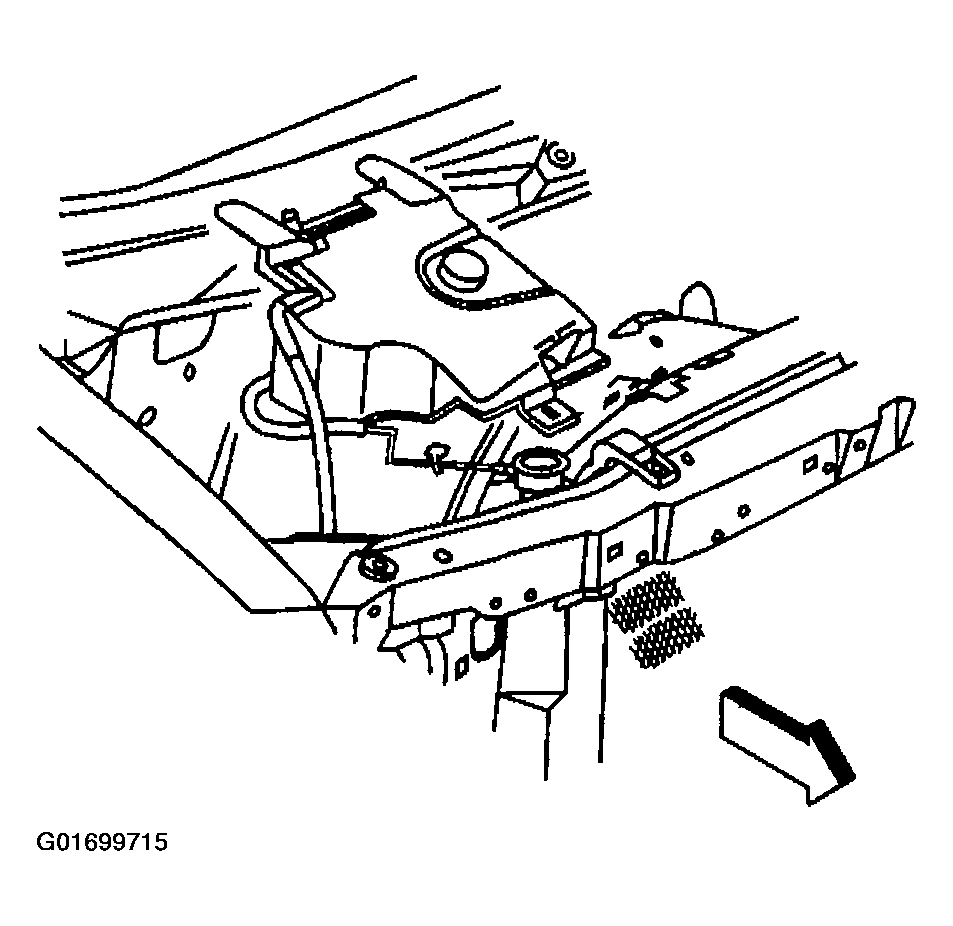

Fig 1: Removing Bolt Retaining Coolant Recovery Reservoir Or Surge Tank
Courtesy of GENERAL MOTORS CORP.
Disconnect the battery positive cable from the battery.
If equipped with the 6.5L engine, disconnect the positive lead to the junction block.

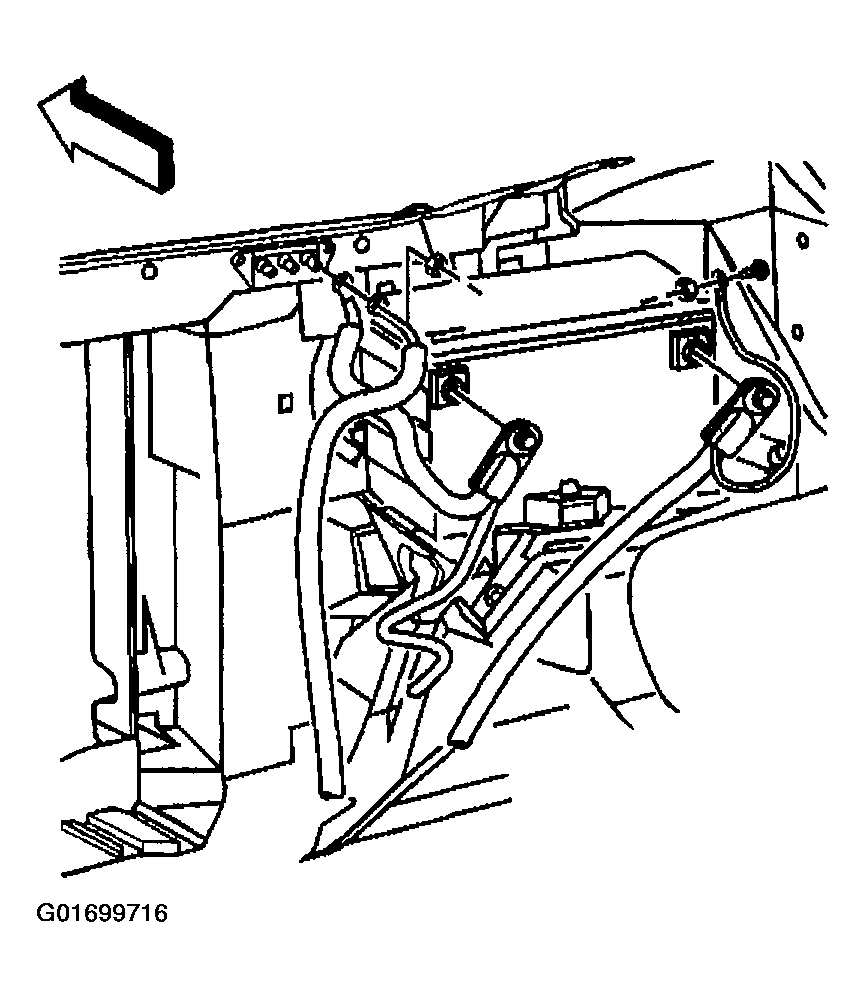

Fig 2: Disconnecting Battery Positive Cable From Battery
Courtesy of GENERAL MOTORS CORP.
Disconnect the positive lead to the starter solenoid.

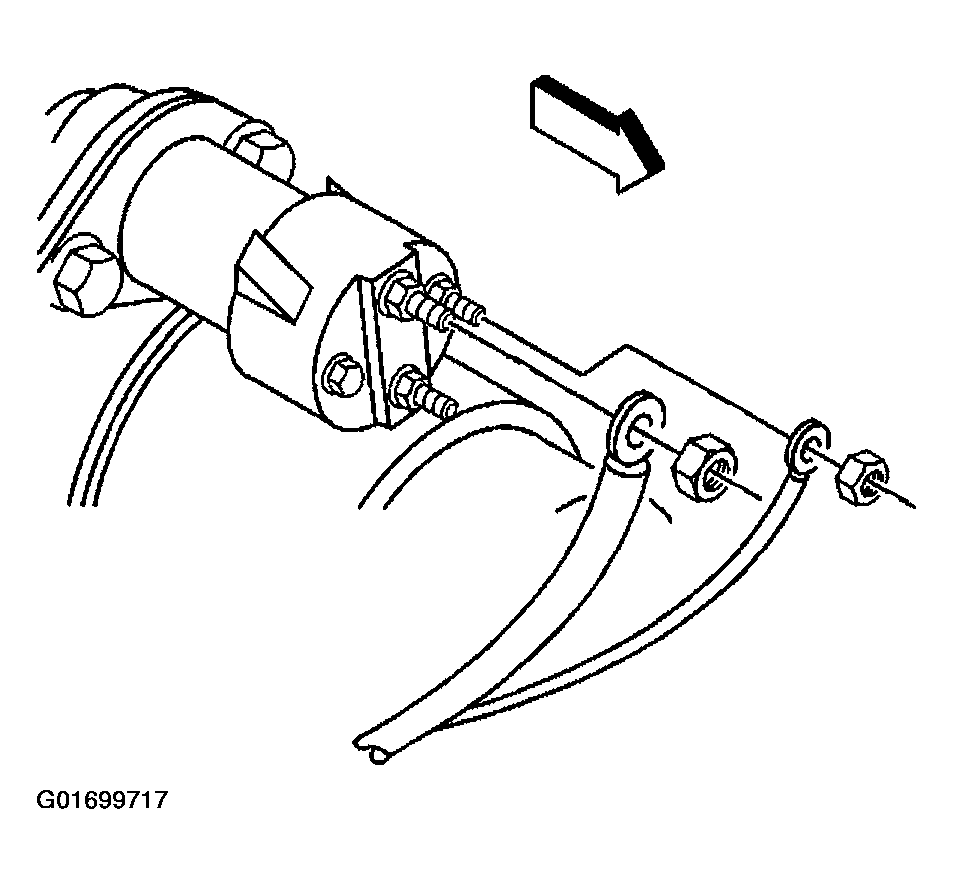

Fig 3: Disconnecting Positive Lead To Starter Solenoid
Courtesy of GENERAL MOTORS CORP.
Disconnect the positive lead to the generator.
Remove the cable from the vehicle. Note the location of the retaining clips.

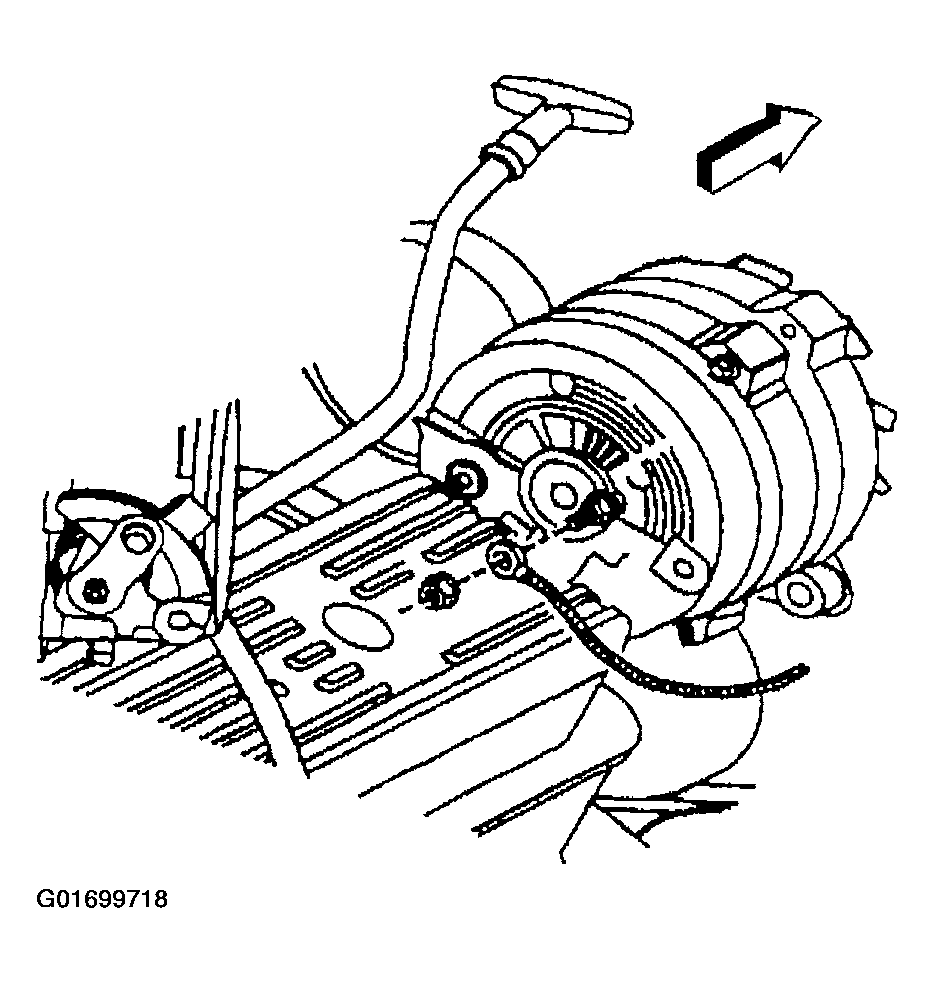

Fig 4: Disconnecting Positive Lead To Generator & Removing Cable
Courtesy of GENERAL MOTORS CORP.
