Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery negative cable lead from the inner fender panel.

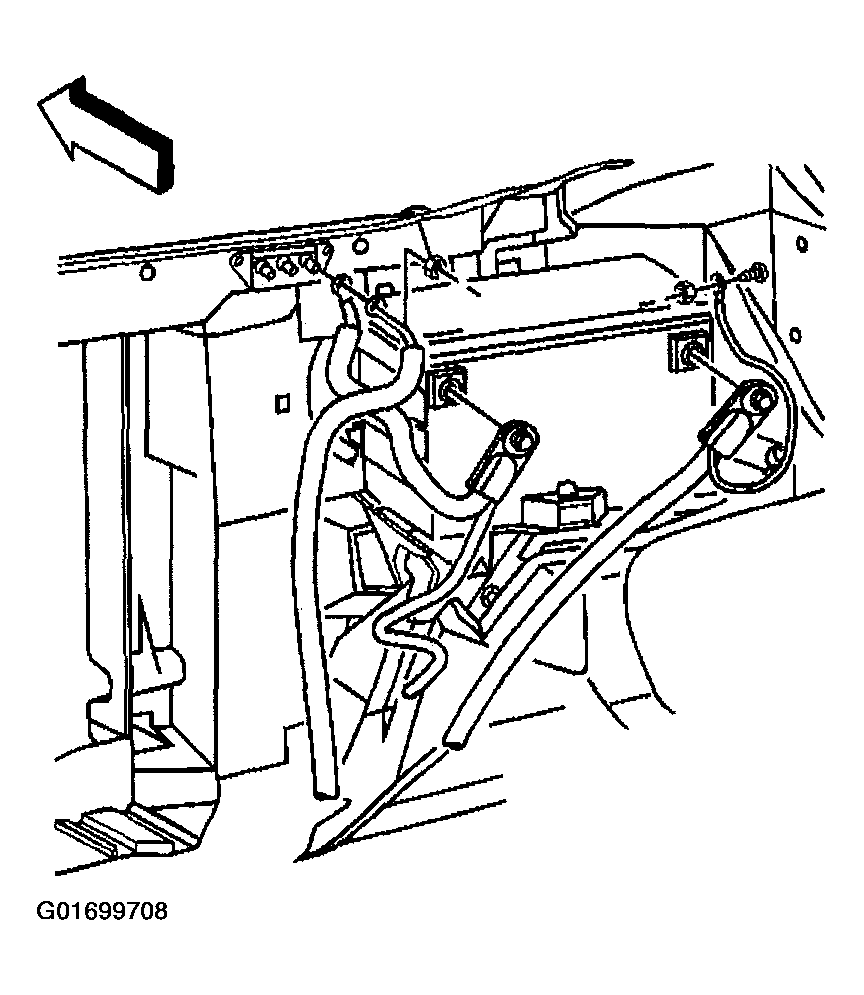

    Fig 1: Disconnecting Battery Negative Cable Lead
    G01699708Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the battery negative cable lead from the engine block.
  4. Remove the battery negative cable from the vehicle.
    Fig 2: Removing Battery Negative Cable
    G01699709Courtesy of GENERAL MOTORS CORP.
