Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the push pin retainer (1) into the air temperature sensor bracket (2).
  2. Connect the electrical connector to the air temperature sensor.
  3. Install the front grille to the vehicle. Refer to GRILLE REPLACEMENT .

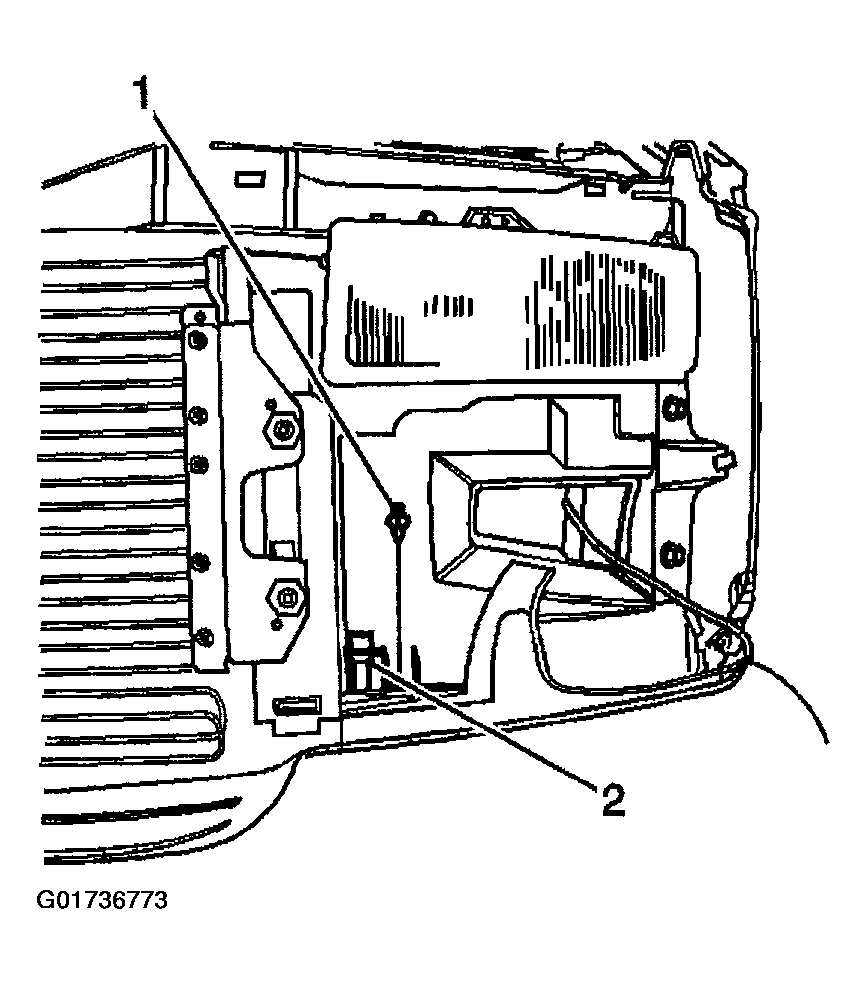

Fig 1: Installing Push Pin Retainer Into Air Temperature Sensor Bracket
G01736773Courtesy of GENERAL MOTORS CORP.
