Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim cover from the rain sensor module.

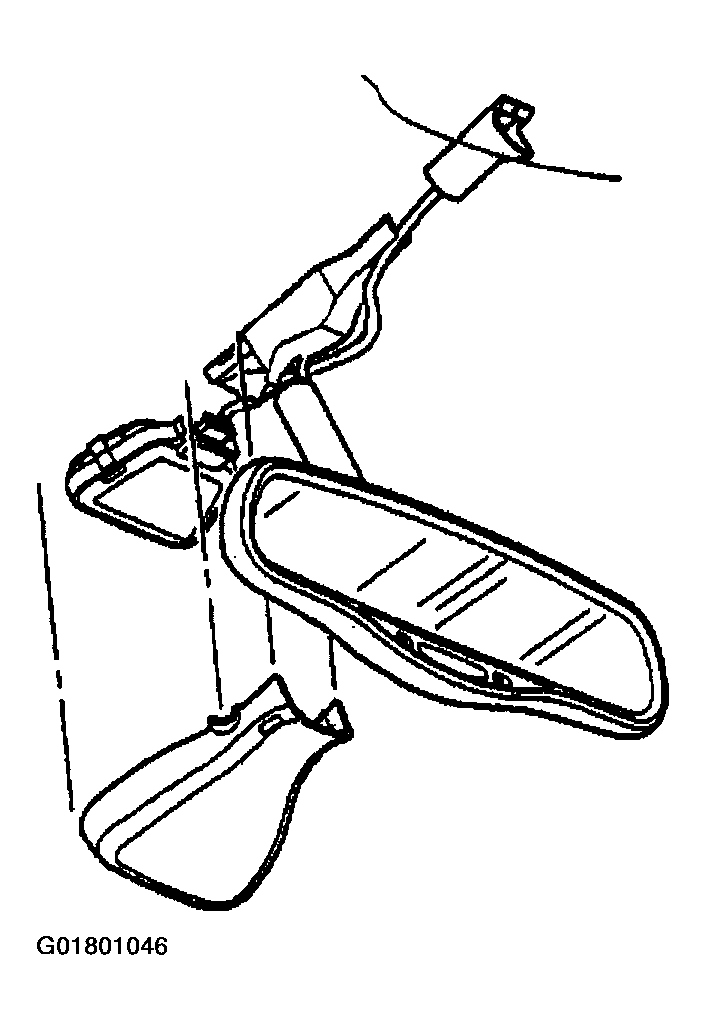

    Fig 1: Removing Rain Sensor Module Trim Cover
    G01801046Courtesy of GENERAL MOTORS CORP.
  2. Release the windshield coupler clips.
  3. Remove the rain sensor module.
  4. Disconnect the electrical connector from the rain sensor module.

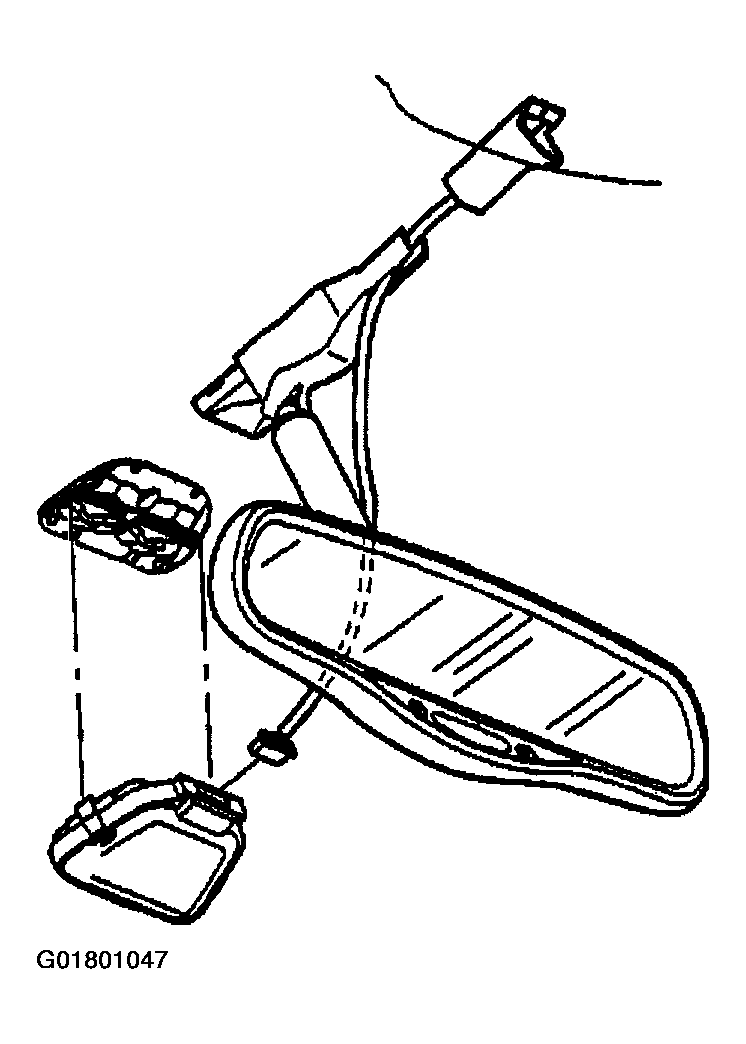

    Fig 2: Removing Rain Sensor Module
    G01801047Courtesy of GENERAL MOTORS CORP.
