Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.
    Fig 1: Installing Washer Pump
    G01801001Courtesy of GENERAL MOTORS CORP.
  2. Install the washer solvent container on the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the 3 nuts.

    Tighten

    Tighten the 3 nuts to 6 N.m (53 lb in).

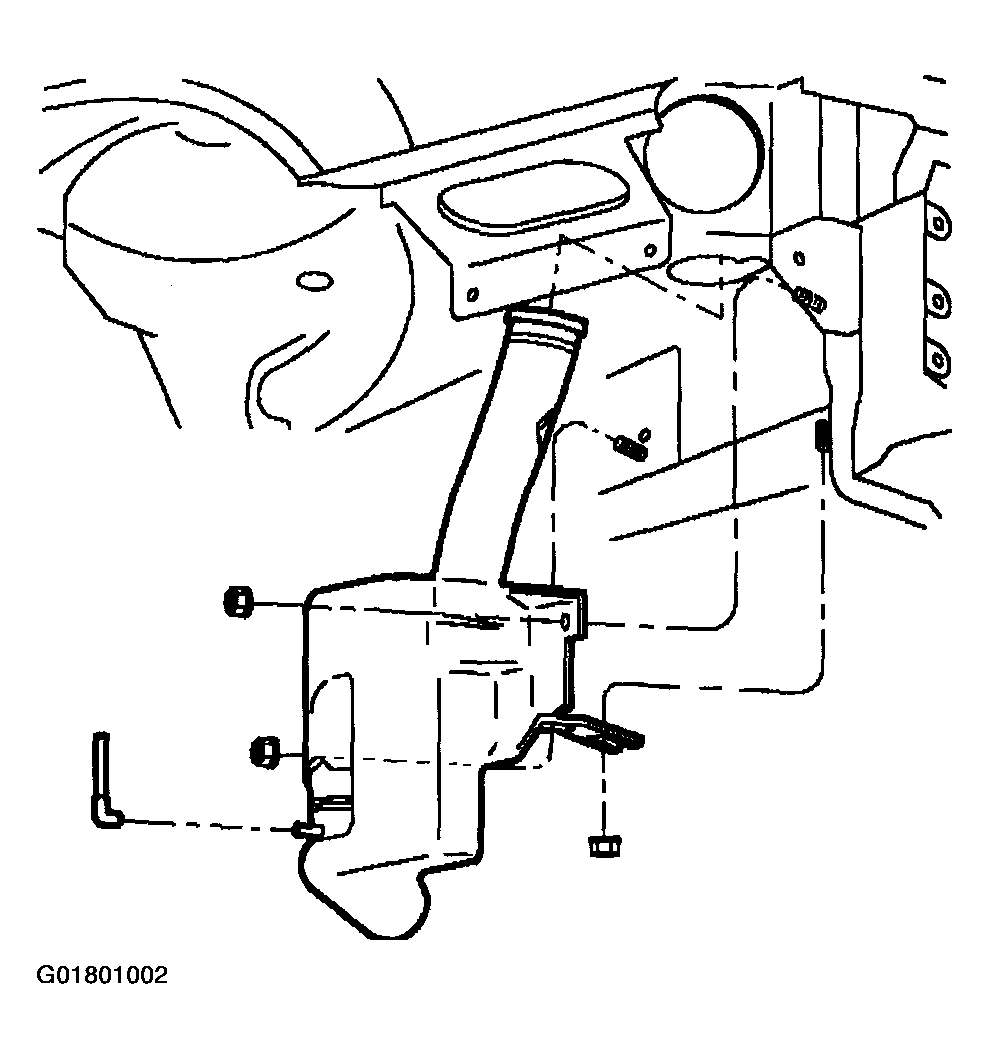

    Fig 2: Installing Washer Solvent Container
    G01801002Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the washer solvent level sensor.
  5. Connect the electrical connector to the washer pump.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT .

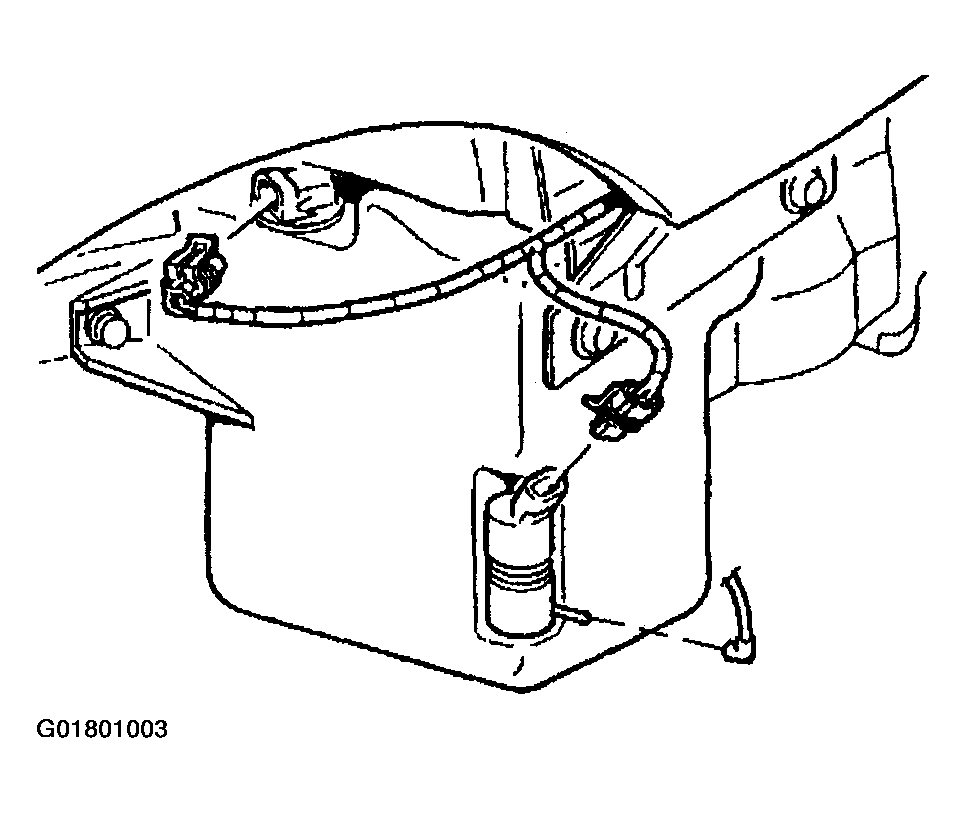

    Fig 3: Connecting Electrical Connectors
    G01801003Courtesy of GENERAL MOTORS CORP.
