Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to Fan Shroud Replacement - Upper (W/O M74)  or Fan Shroud Replacement - Upper (W/M74)  .
  2. If equipped with a 4.3L, 4.8L, 5.3L, 6.0L or 8.1L engine, install the J 41240  to the fan clutch.
  3. If equipped with a 6.6L, engine, install the J41240-5A  to the fan clutch.

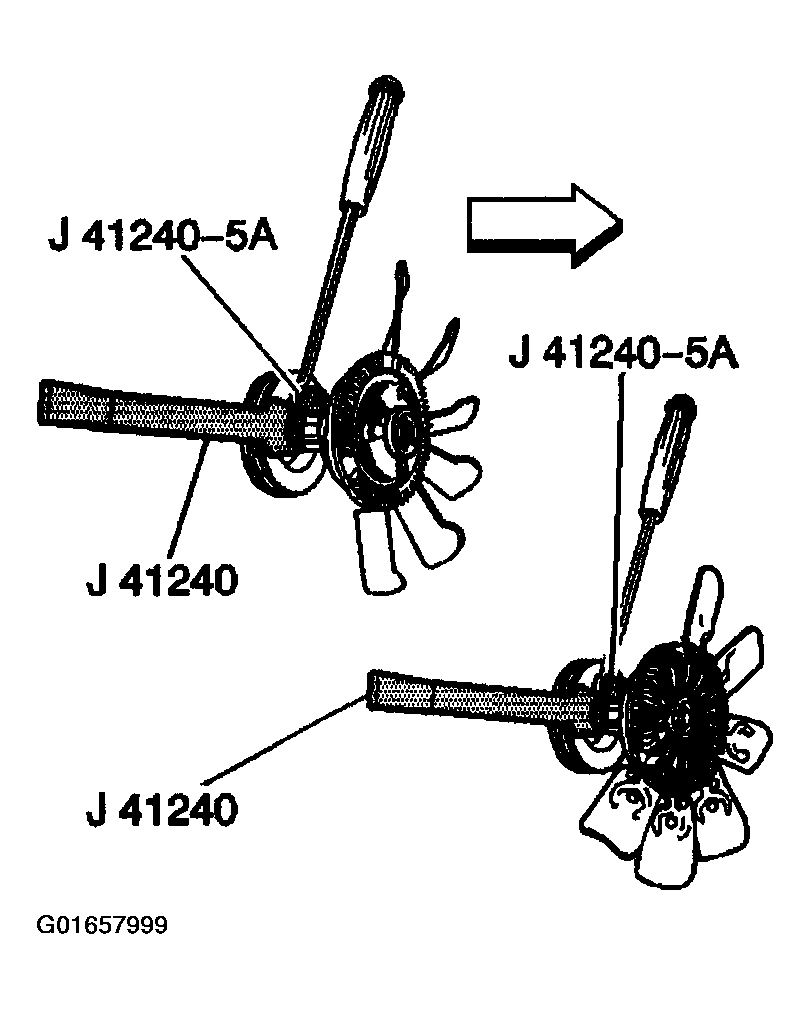

    Fig 1: Removing Fan Clutch
    G01657999Courtesy of GENERAL MOTORS CORP.
  4. Remove the fan assembly.
  5. Lay the fan blade face down on a workbench.
  6. Remove the fan clutch bolts from the rear of the fan blade.
  7. Separate the fan clutch from the fan blade.

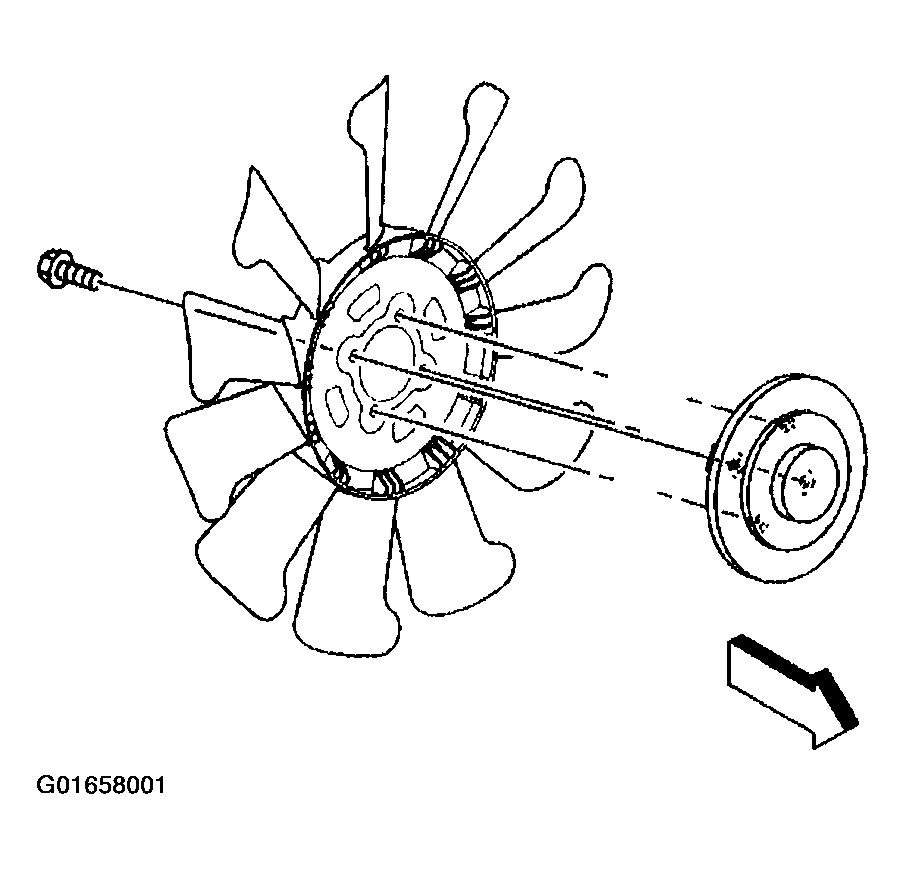

    Fig 2: Separating Fan Clutch From Fan Blade
    G01658001Courtesy of GENERAL MOTORS CORP.
