Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  2. Remove the lock rods from the sliding side door control assembly.

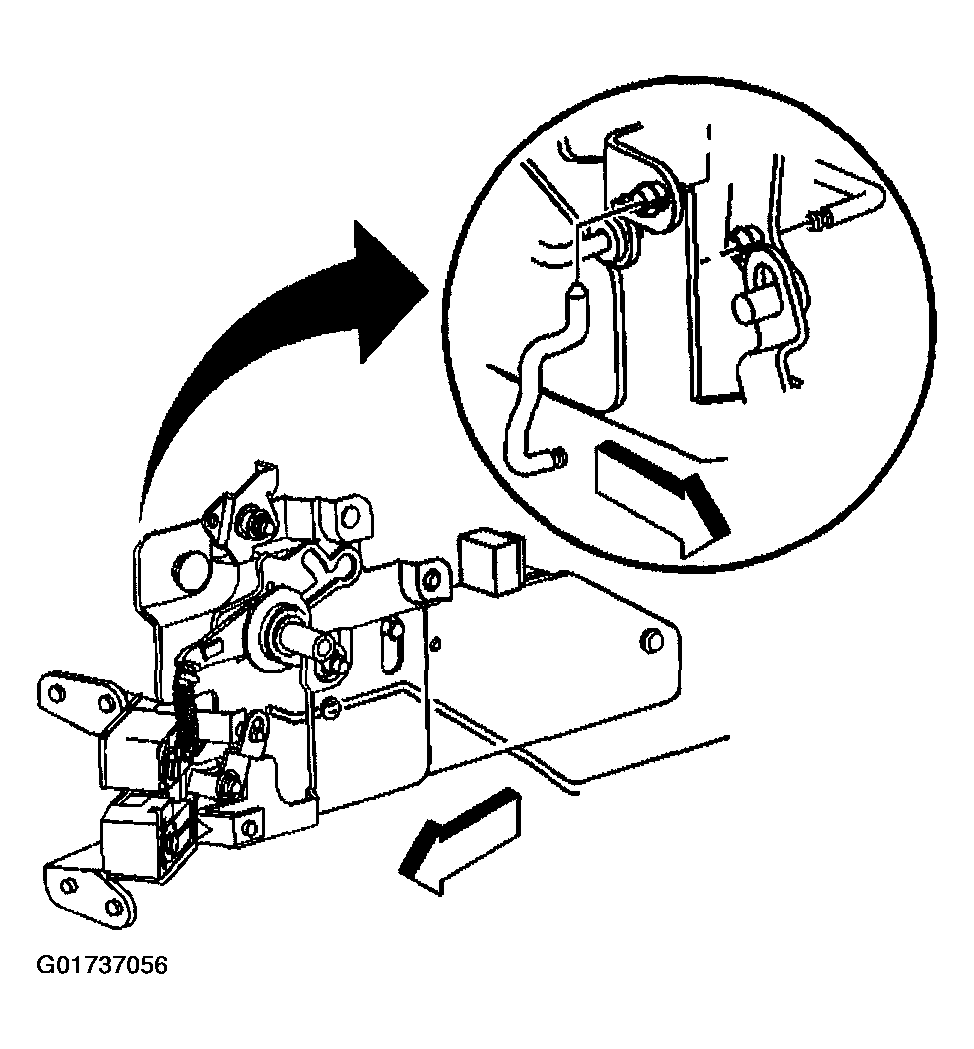

    Fig 1: Removing Lock Rods From Sliding Side Door Control Assembly
    G01737056Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts (4) that retain the sliding side door control assembly to the sliding side door.
  4. Remove the sliding side door control assembly (3) from the sliding side door.
  5. Remove the sliding side door control assembly (3) from the vehicle.

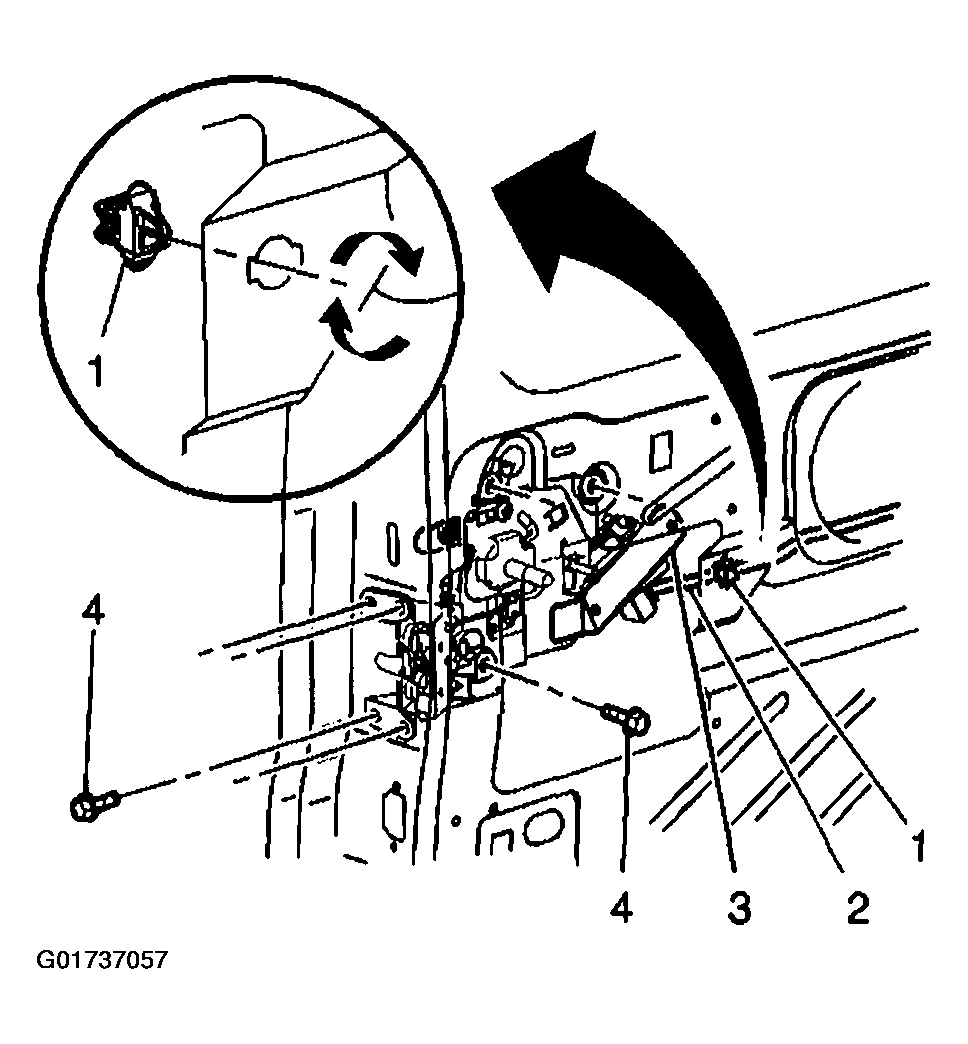

Fig 2: Removing Sliding Side Door Control Assembly
G01737057Courtesy of GENERAL MOTORS CORP.
