Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the power front seat switch.

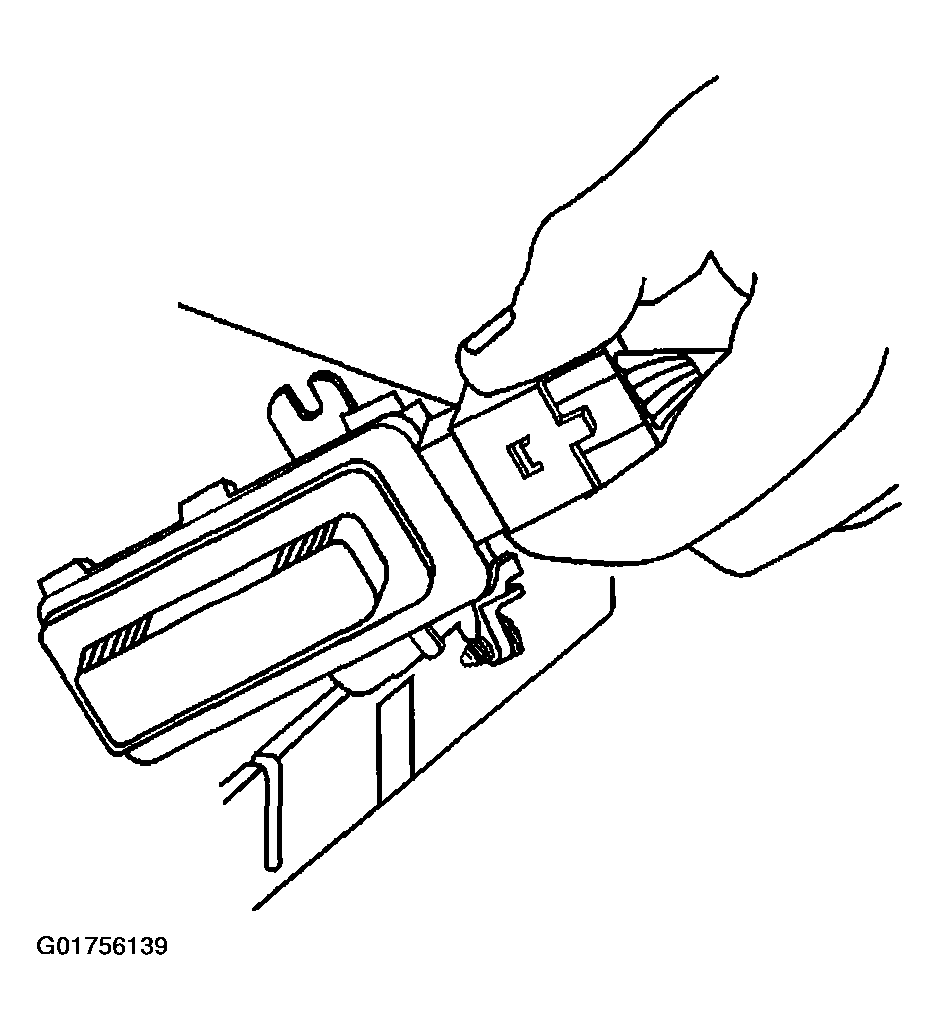

    Fig 1: Installing Power Front Seat Switch Electrical Connector
    G01756139Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the seat switch to the trim panel. Tighten the screws to 3 N.m (27 lb in).

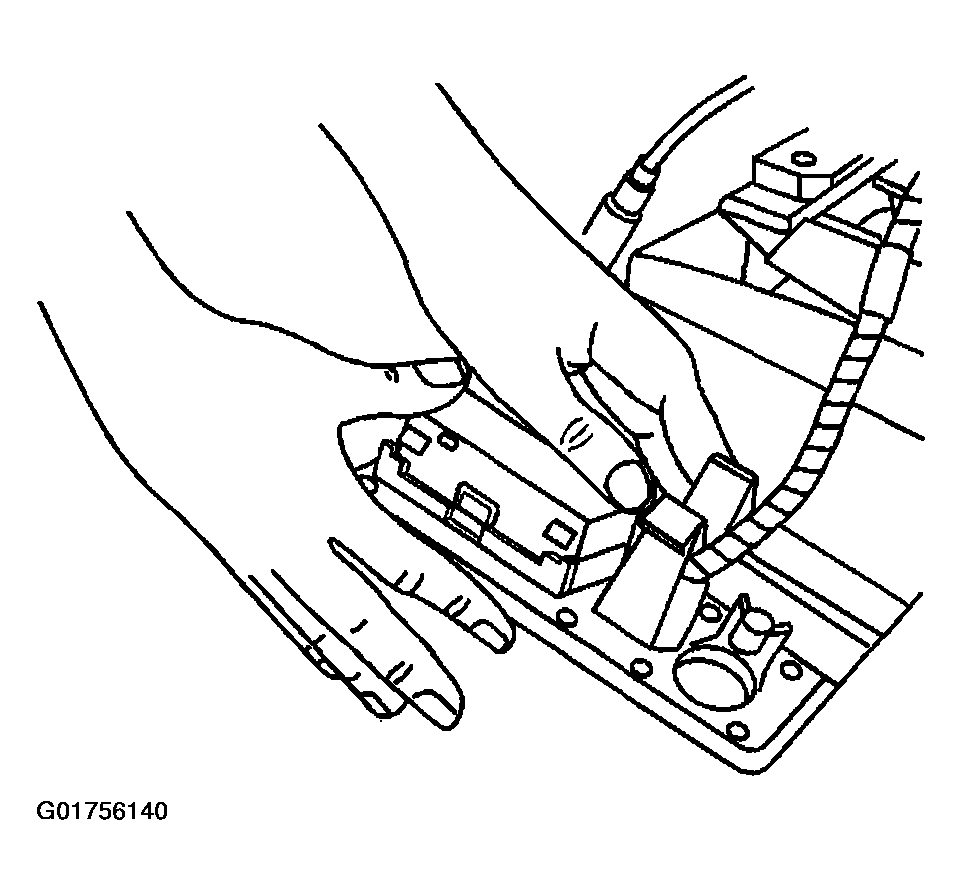

    3. Fig 2: Installing Seat Switch
    G01756140Courtesy of GENERAL MOTORS CORP.
  3. Install the front seat cushion outer trim panel. Refer to Trim Panel Replacement - Front Seat .
