Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the WSS (5) into the hub/bearing assembly (4).
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the WSS mounting bolt. Tighten the WSS mounting bolt to 18 N.m (13 lbs ft).

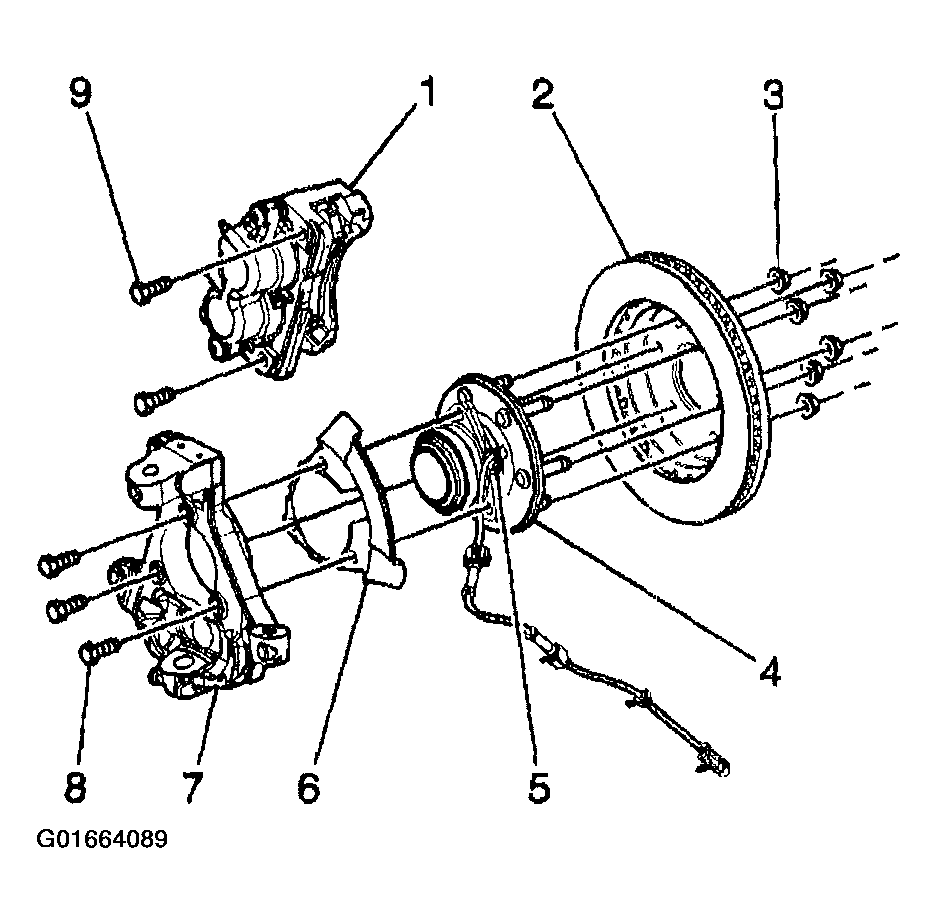

    3. Fig 1: Installation Of WSS Into Hub/Bearing Assembly
    G01664089Courtesy of GENERAL MOTORS CORP.
  3. Install the WSS cable mounting clip to the knuckle.
  4. Install the WSS cable mounting clip to the upper control arm.
  5. Install the WSS cable mounting clip to the frame attachment point.
  6. Connect the WSS cable electrical connector.
  7. Install the brake rotor (2). Refer toBRAKE ROTOR in Disc Brakes.
  8. Install the tire and wheel.
  9. Return to Diagnostic Starting Point - Anti-lock Brake System .
