Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the WSS (5) into the hub/bearing assembly (4).

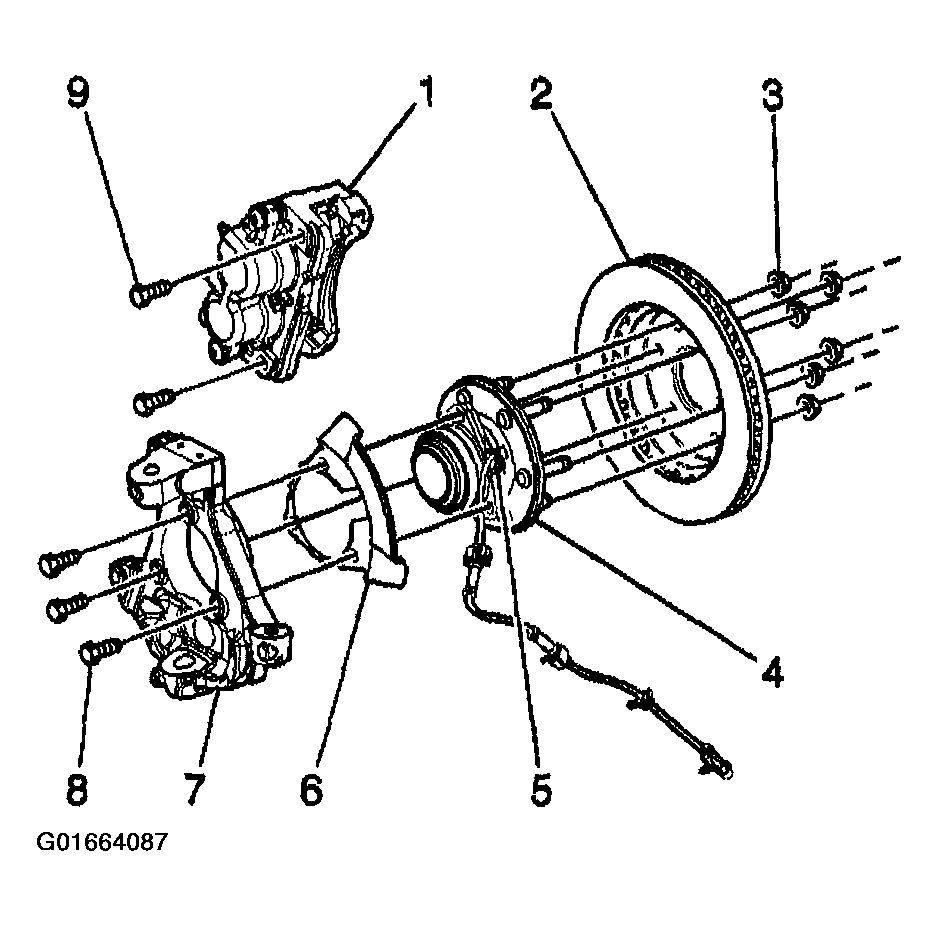

    2. Fig 1: Locating & Installing (WSS) Mounting Bolts & Components
    G01664087Courtesy of GENERAL MOTORS CORP.
  2. Install the WSS mounting bolt. Tighten the WSS mounting bolt to 18 N.m (13 lbs ft).
  3. Install the WSS cable mounting clip to the knuckle.
  4. Install the WSS cable mounting clip to the upper control arm.
  5. Install the WSS cable mounting clip to the frame attachment point.
  6. Connect the WSS cable electrical connector.
  7. Install the brake rotor (2). Refer to BRAKE ROTOR in Disc Brakes.
  8. Install the tire and wheel.
  9. Return to Diagnostic Starting Point - Anti-lock Brake System .
