Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gages and Console.
  2. Gently lift the retaining tabs (2) and remove the stabilitrak switch (3) from the Instrument Panel (IP) assembly (1).

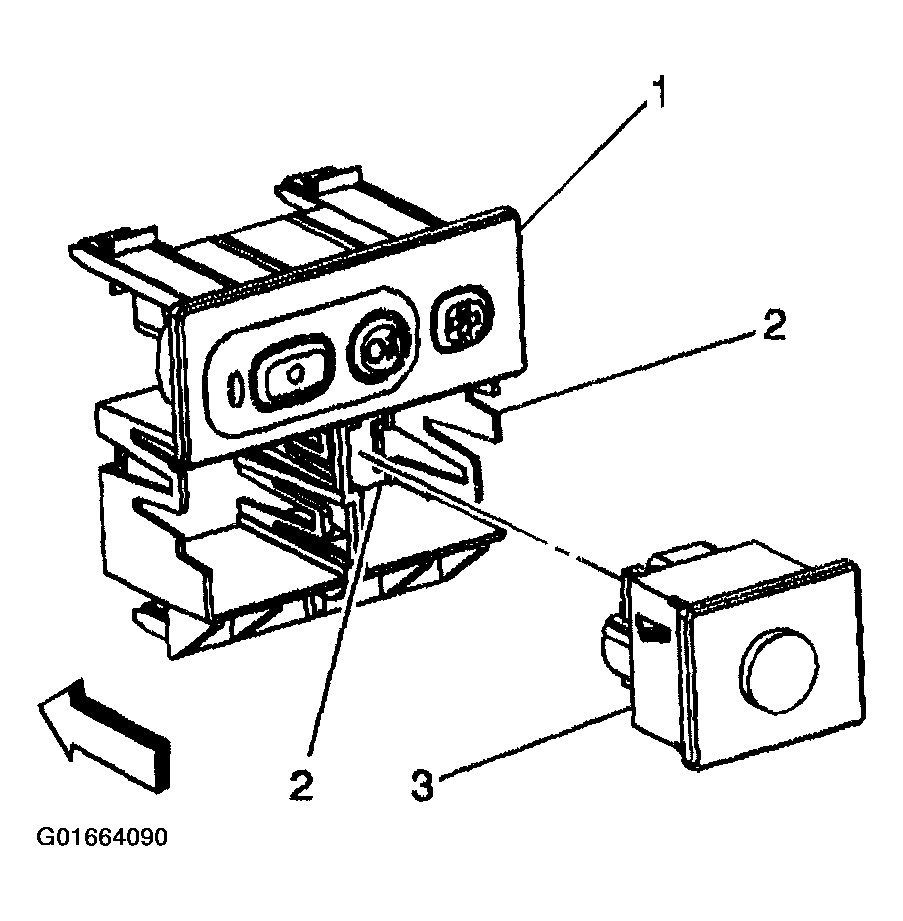

    3. Fig 1: Removal Of StabiliTrak Switch From Instrument Panel Assembly
    G01664090Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the harness connector from the stabilitrak switch.
    4. Fig 2: Locating StabiliTrak Switch Harness Connector
    G01664091Courtesy of GENERAL MOTORS CORP.
