Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the stabilitrak switch.
    2. Fig 1: Installation Of StabiliTrak Switch Harness Connector
    G01664092Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilitrak switch (3) into the Instrument Panel (IP) assembly (1).
  3. Ensure that the switch is secure into both retaining tabs (2).
  4. Install Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gages and Console.

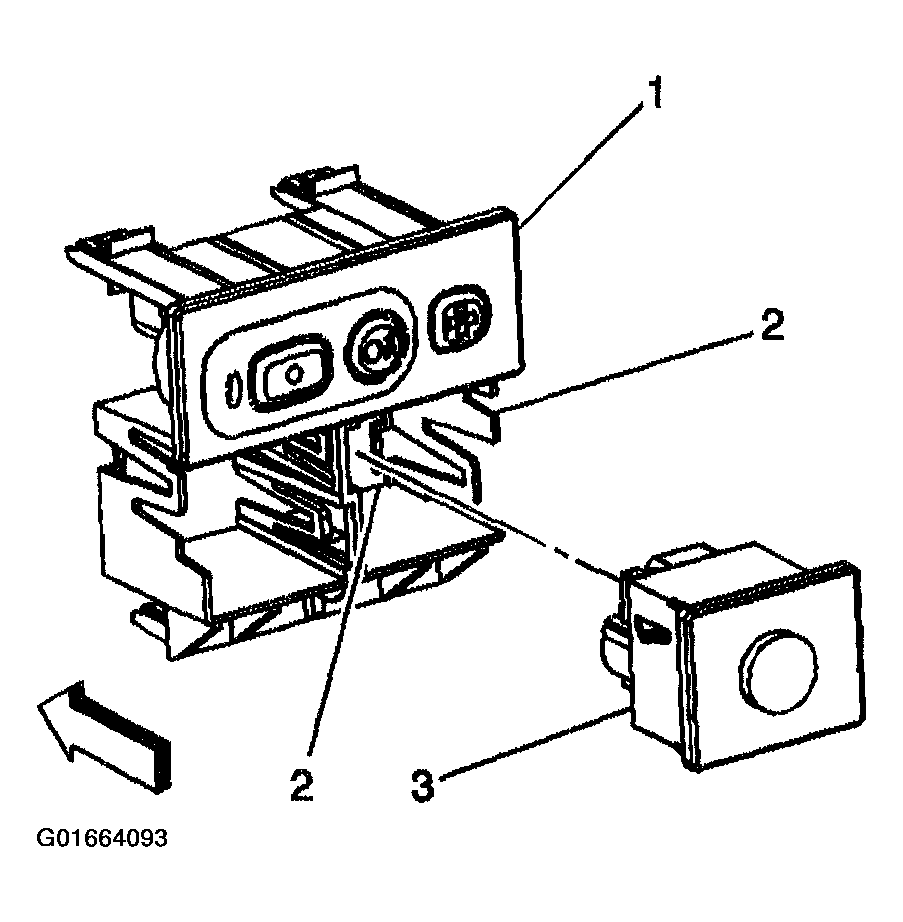

    5. Fig 2: Installation Of StabiliTrak Switch Into Instrument Panel
    G01664093Courtesy of GENERAL MOTORS CORP.
