Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the bolts (2) that secure the Brake Pressure Modulator Valve (BPMV) (1) to the mounting bracket (3).

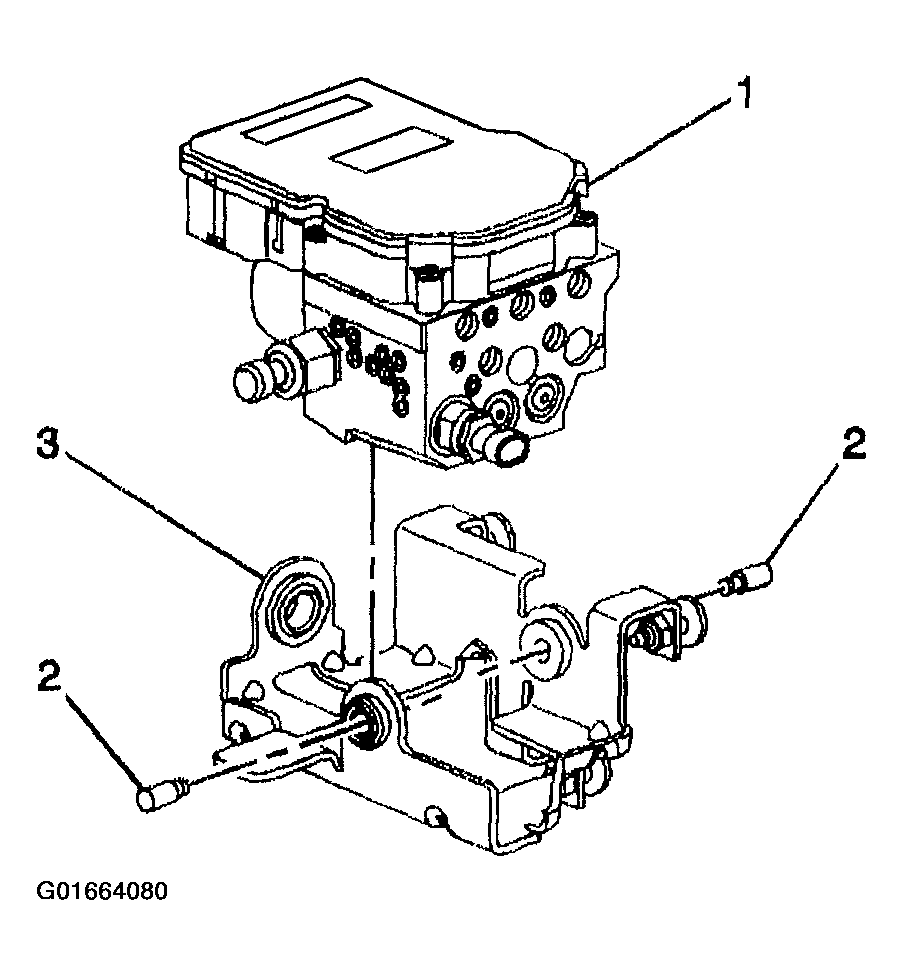

    3. Fig 1: Location Of BPMV Mounting Bracket Bolts
    G01664080Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the pressure accumulator switch.

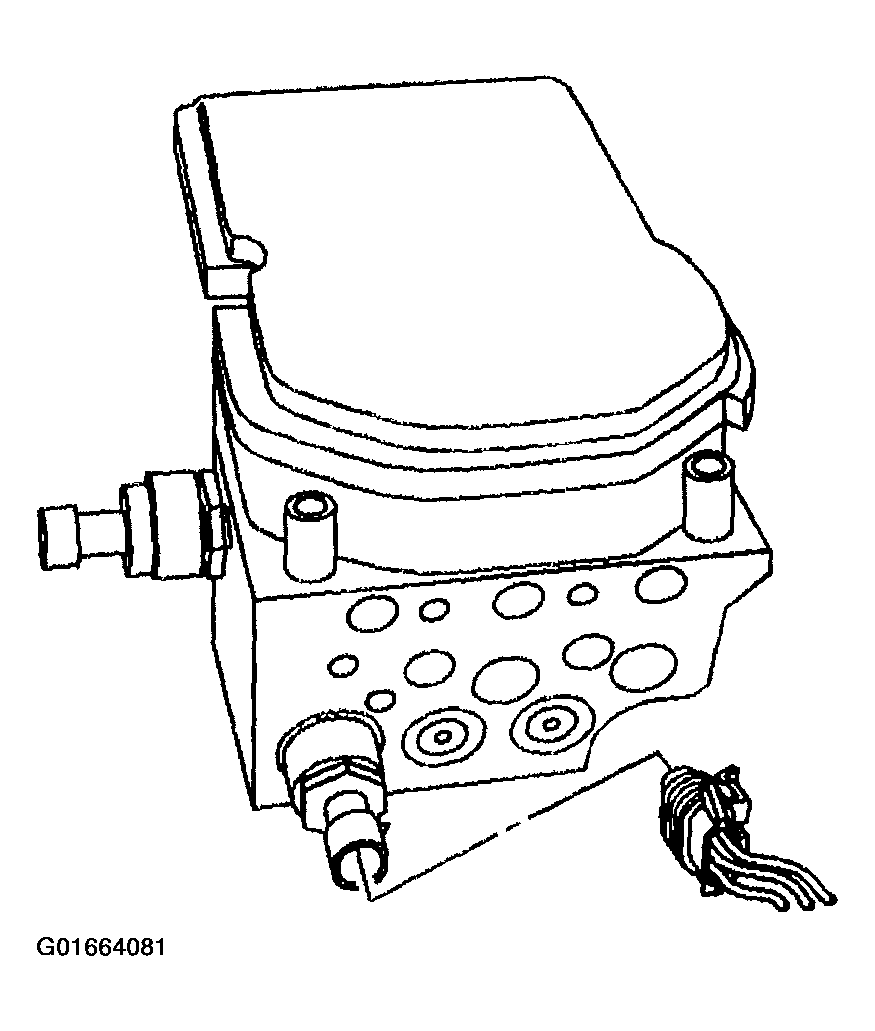

    4. Fig 2: Removal Of Electrical Connector From Pressure Accumulator Switch
    G01664081Courtesy of GENERAL MOTORS CORP.
  4. Position the BPMV to be able to remove the pressure accumulator switch.
  5. Remove the pressure accumulator switch from the BPMV.
    6. Fig 3: Removal Of Pressure Accumulator Switch From The BPMV
    G01664082Courtesy of GENERAL MOTORS CORP.
