Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle.
Remove the Allen bolt (2) from the Brake Pressure Modulator Valve (BPMV) mounting bracket (3) located on the sensor side.
Raise the BPMV to access the brake fluid pressure sensor.

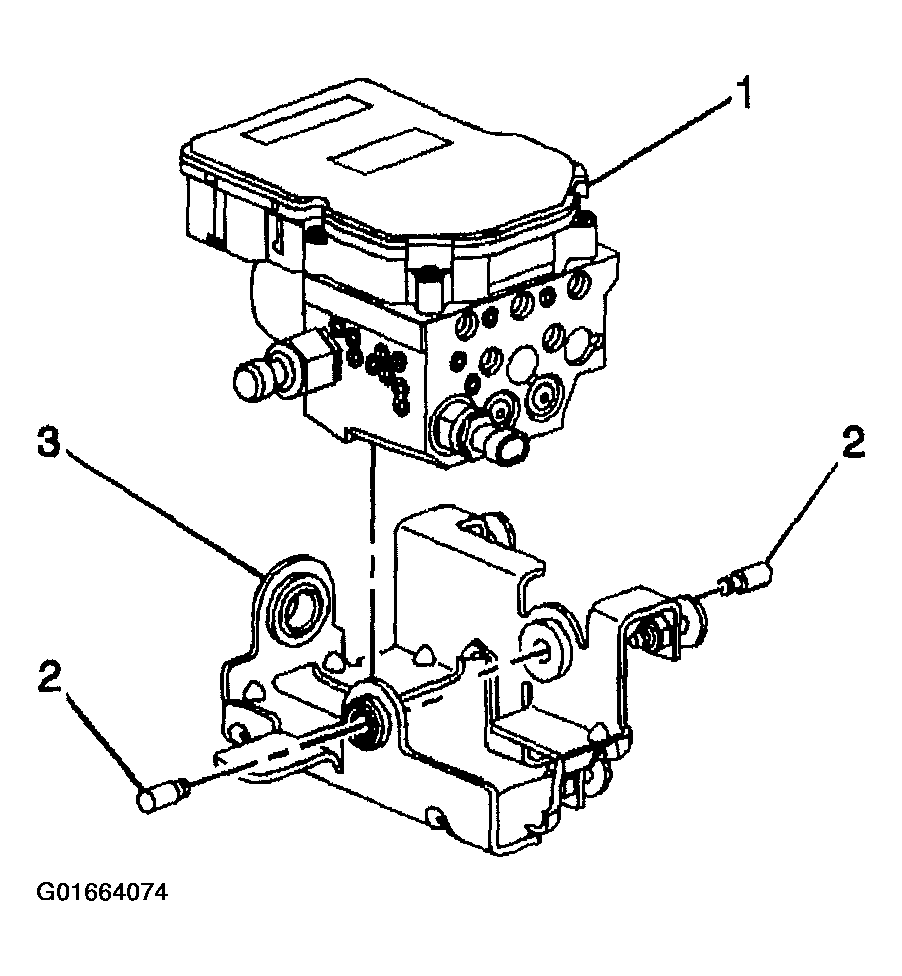

Fig 1: Removal Of BPMV Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector from the brake fluid pressure sensor.

Fig 2: Removal Of Electrical Connector From Brake Fluid Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

NOTE: The replacement of the old brake fluid pressure sensor must be performed quickly to reduce the amount of fluid that is lost during the procedure.
Use a wrench to keep the brake fluid pressure sensor collar from turning (1). Remove the brake fluid pressure sensor (2) from the BPMV.

Fig 3: Removal Of Brake Fluid Pressure Sensor From The BPMV

Courtesy of GENERAL MOTORS CORP.
