Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power seat adjuster switch (5) to the vehicle.
  2. Connect the electrical connector to the power seat adjuster switch.
  3. Install the power seat adjuster switch to the seat cushion (1).
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the screws in order to retain the power seat adjuster switch to the seat cushion.

    Tighten

    Tighten the screws to 2 N.m (18 in lbs).

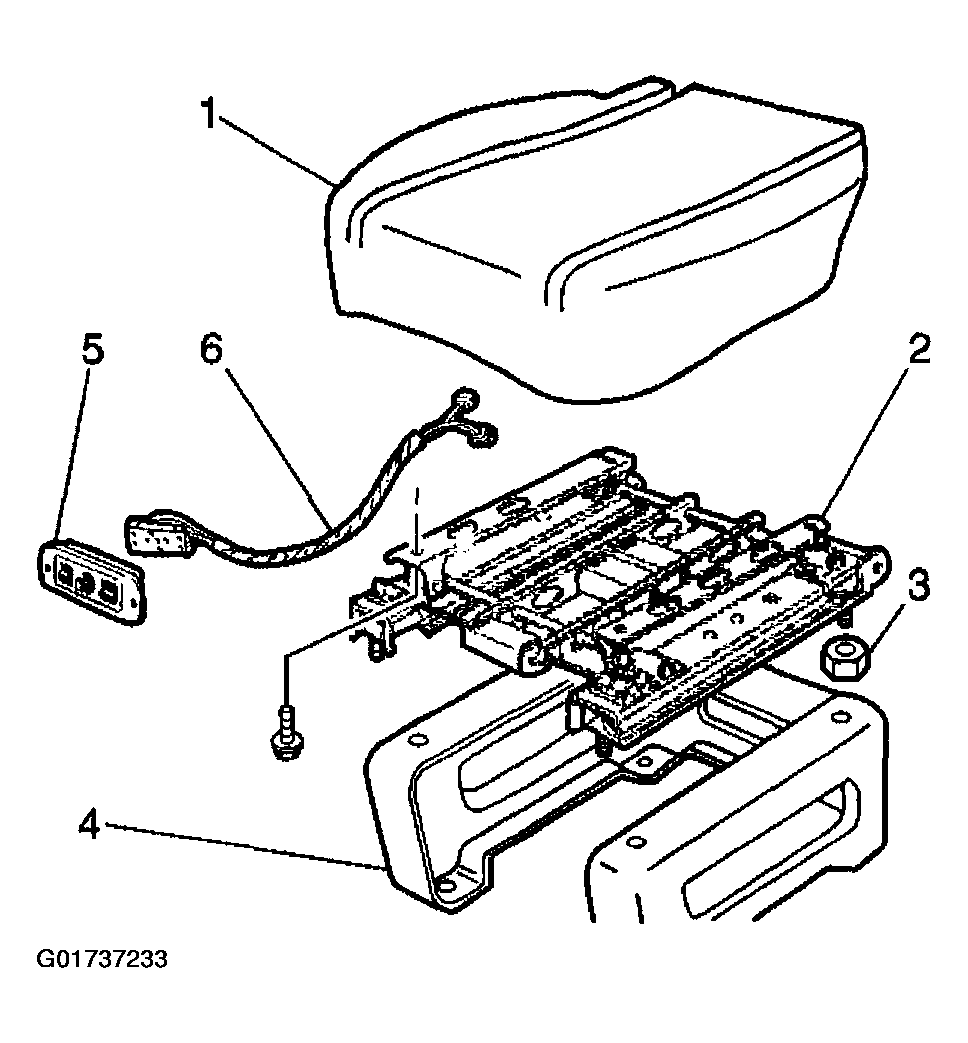

Fig 1: Installing Seat Switch - Power
G01737233Courtesy of GENERAL MOTORS CORP.
