Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper quarter panel applique. Refer to TAIL LAMP, BACK BODY OPENING APPLIQUE REPLACE .
  2. Remove the nuts (2) that retain the tail lamp to the upper quarter panel.
  3. Disconnect the bulb sockets from the tail lamp (3).
  4. Remove the bulbs from the sockets by turning the bulbs in a counterclockwise direction.

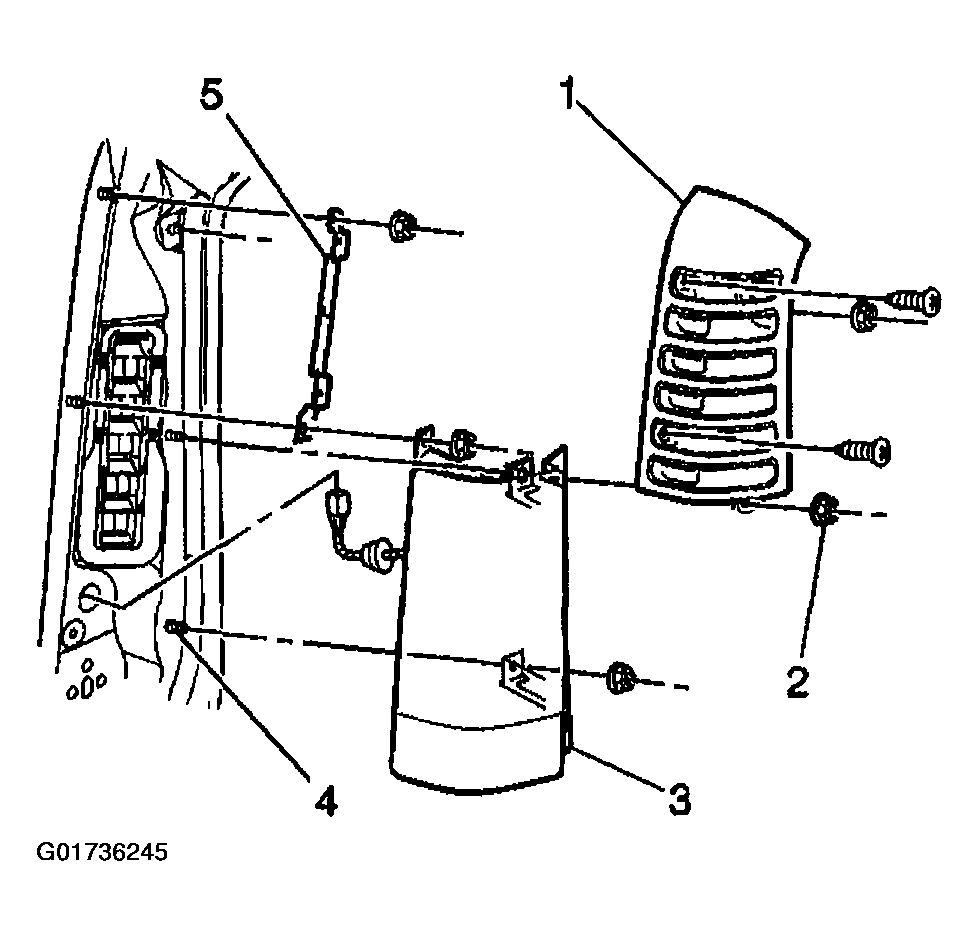

    Fig 1: Disconnecting Bulb Sockets From Tail Lamp
    G01736245Courtesy of GENERAL MOTORS CORP.
