Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: If you must remove more than one tube adapter at one time, stamp the BPMV with a number (1, 2 or 3) in order to indicate the number of grooves cut into the tube adapters. This procedure will aid proper reassembly.

Raise the vehicle and properly support.
Remove the three EHCU shield bolts and shield.

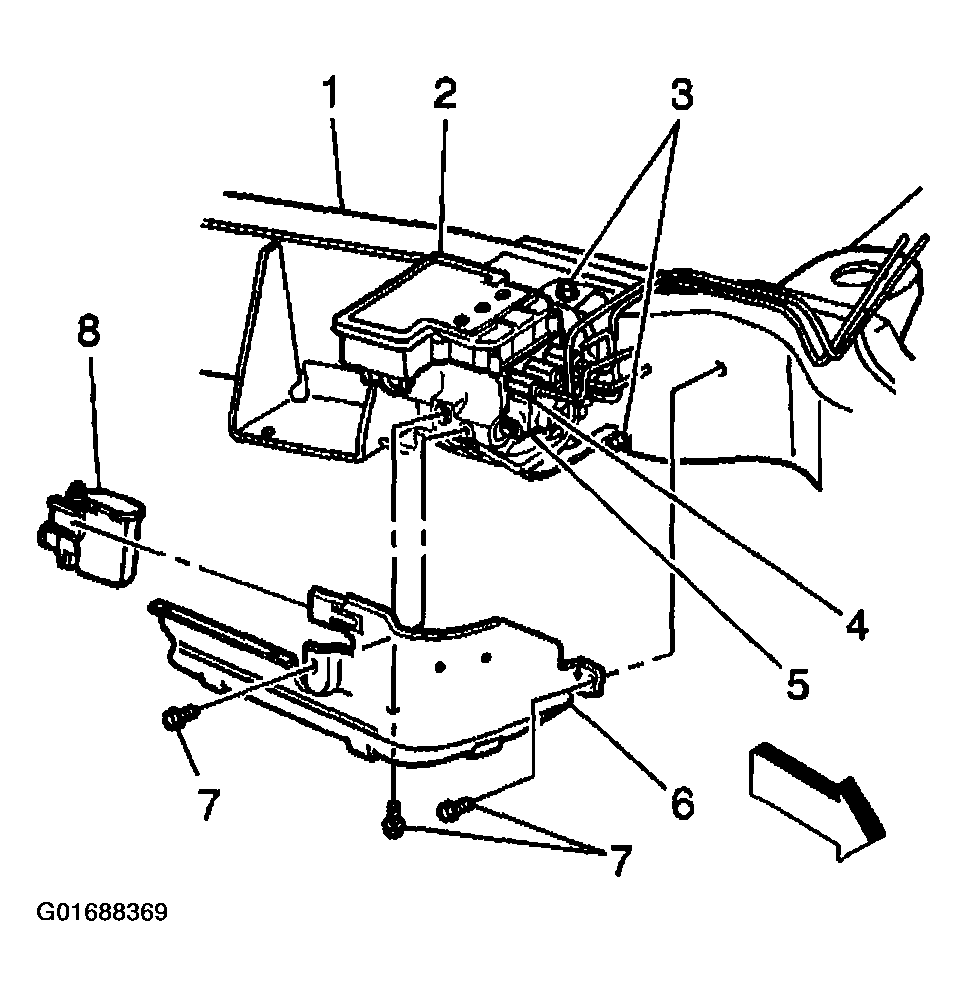

Fig 1: Removing EHCU Shield Bolts & Shield
Courtesy of GENERAL MOTORS CORP.
Remove the appropriate brake line from the tube adapter.
Remove the tube adapter (1).

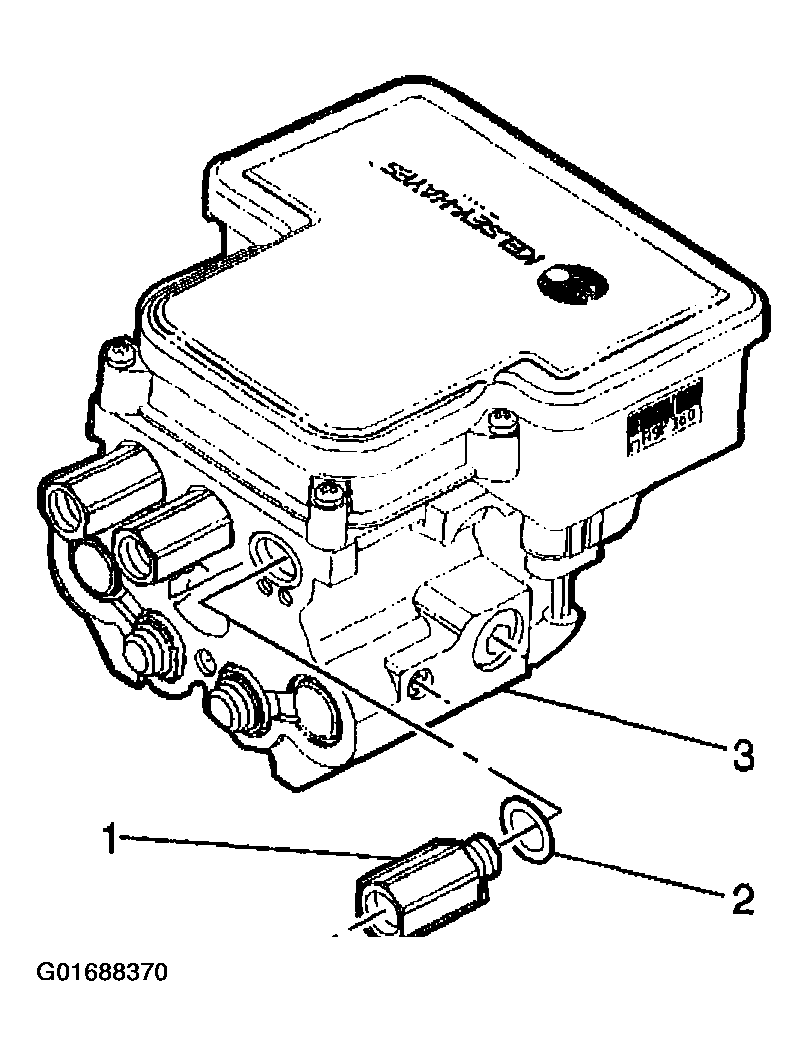

Fig 2: Removing Tube Adapter
Courtesy of GENERAL MOTORS CORP.
